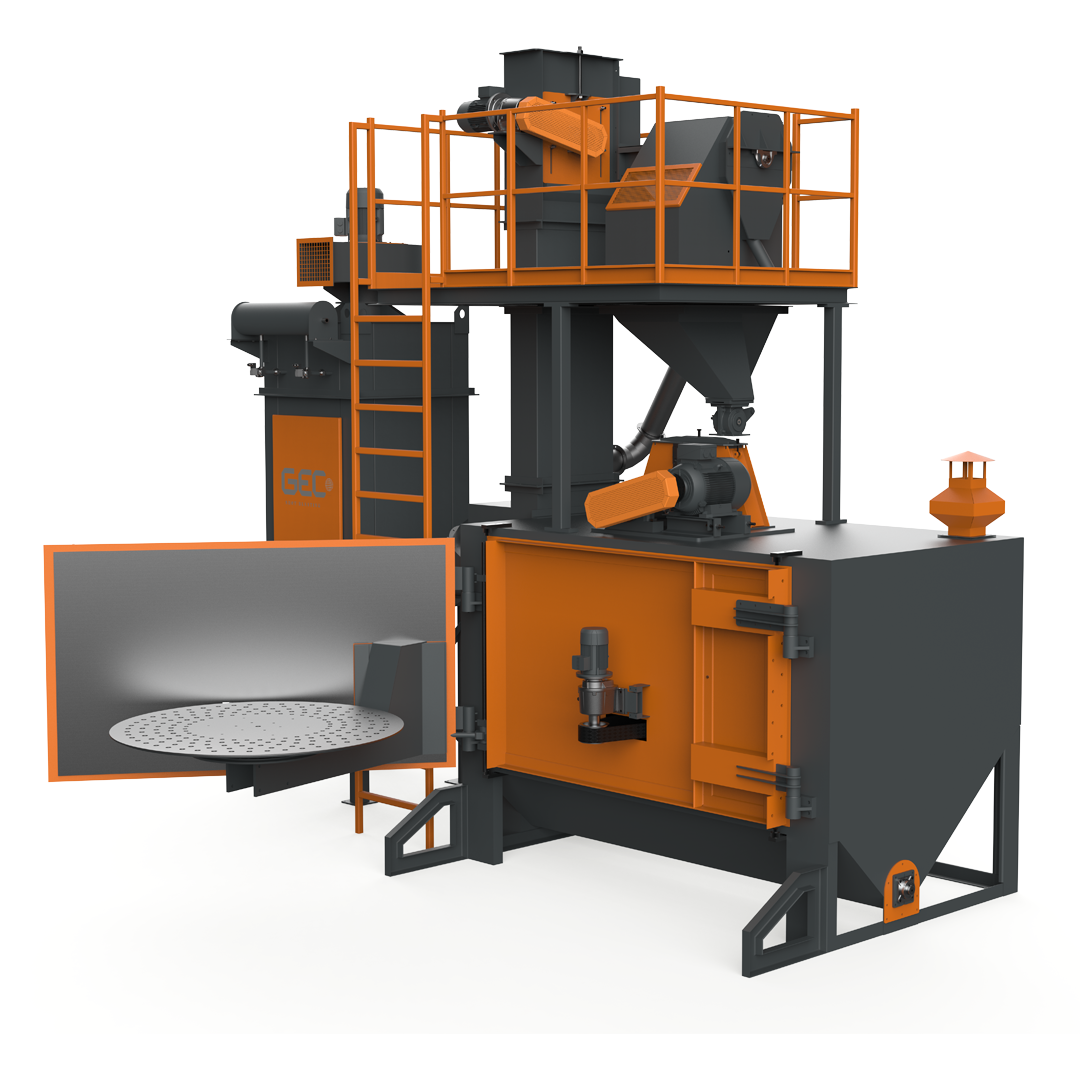

Swing Table Shot Blasting Machine

GEC Blasting manufactures Swing Table Shot Blasting Machines for efficient cleaning, descaling, rust removal, and surface preparation of castings, forgings, fabricated components, and heavy engineering parts. Our range includes AST 900, AST 1200, AST 1500, AST 1800, and AST 2400 models, designed to meet different production capacities and component sizes.

Key Features

Available in 36" to 96" table sizes
High-performance airless shot blasting system
Heavy-duty swing table design
Uniform surface cleaning
Durable manganese steel liners
Low maintenance and energy-efficient operation
Suitable for continuous industrial production

Benefits

Superior surface cleaning quality
Removes rust, scale, and contaminants
Improves paint and coating adhesion
Increases component life
Reduces manual cleaning time
High production efficiency and Consistent blasting results
Reliable and durable construction and Lower operating costs
Suitable for a wide range of workpieces

OPTIONS

Second Door with Swing Table & Drive Unit
Rotary Screen Separator
Abrasive Replenisher
PLC Operated Sequential Control System with MMI.
Electronic Brake System
Mn. Steel Lining Inside the Cabinet 10 mm and 12 mm thick Perforated Mn. Table Top With Single Door With Double Door
Rotary Air Lock Valves

Applications

Aesthetic Finishing of Aluminium, Zinc, and Alloy Steel Die Castings
Desanding and Descaling of Castings and Forgings
Cleaning of Castings and Forged Components
Surface Preparation for Painting and Protective Coatings
Shot Peening of Heavily Stressed Components
Removal of Heat-Treated Scale, Rust, and Surface Contaminants

About Airless Swing Table Shot Blasting Machine

GEC Blasting manufactures Swing Table Shot Blasting Machines designed for high-performance surface cleaning, rust removal, descaling, and surface preparation of heavy engineering components. Our machines are available in 36" to 96" table diameter models, making them suitable for a wide range of industrial applications. Whether you need to clean castings, forgings, fabricated structures, or machined parts, our swing table machines deliver consistent blasting results with high productivity and low maintenance.

Our product range includes AST 900, AST 1200, AST 1500, AST 1800, and AST 2400 Swing Table Shot Blasting Machines, allowing customers to choose the right model based on component size and production requirements. Each machine is engineered with a robust construction, efficient blast wheel technology, and durable wear-resistant liners to ensure long service life and reliable performance.

Learn more about our Shot Blasting Machines and explore our complete range of surface preparation solutions. For more information about surface preparation standards and blasting applications, visit Indiamart – Shot Blasting.

Technical Specification

S.No	Particulars	AST-900	AST-1200	AST-1500	AST- 1800	AST-2400
1.	Size of Blast Wheel	12.5" X 2.5"	19.5" X 2.5"	19.5" × 2.5"	19.5" × 2.5"	19.5" × 2.5"
2.	No. of Blast Wheel	1	1	1	1	2
3.	Power of Blast Wheel	10 H.P.	15 H.P.	20 H.P.	25 H.P.	20 H.P.
4.	No. of Swing Table (as per demand)	One / Two	One / Two	One / Two	One / Two	One / Two
5.	Diameter of Swing Table	900mm (36")	1200mm (48")	1500 mm (60")	1800 mm (72")	2400 mm (96")
6.	Maximum Load on Table	400 Kg	750 Kg	1200 Kg	2500 Kg	4500 Kg
7.	Loading Height (mm)	1000	950	950	950	1200
8.	Maximum Job Height (mm)	500	600	700	1000	1060
9.	Type of Dust Collector (as per demand)	Pulse JET	Pulse JET	Pulse JET	Pulse JET	Pulse JET
10.	Total Required Power (H.P.)	16	23	28	36	56
11.	Height of the Machine	4100mm	4300mm	4500mm	5500mm	5750mm
12.	Requirement of the Pit	No	No	No	No	No
