AST 1200 Swing Table Shot Blasting Machine
GEC AST 1200 Swing Table Shot Blasting Machine delivers efficient surface cleaning for castings, forgings, and heavy components with uniform finishing and reliable performance.
Workpieces

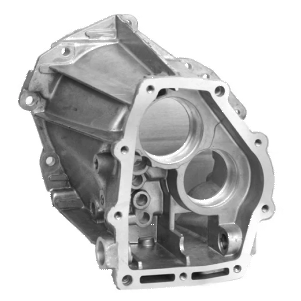

Gear Housings

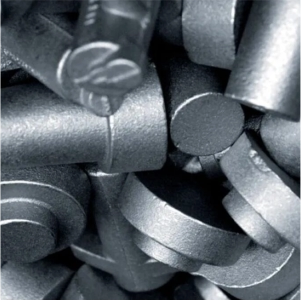

Steel & Iron Castings
Heavy Machine Components

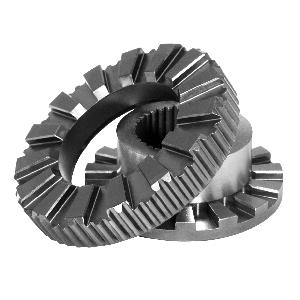

Heat Treated Parts
Applications
- AST 1200 Swing Table Shot Blasting Machine for Surface Preparation and Cleaning.
- Removing rust, scale, sand, and surface impurities
- Surface cleaning of castings and forgings
- Preparing components before painting, coating, or welding
- Improving surface finish and product quality
- Batch production cleaning of heavy industrial parts
- Cleaning automotive and engineering components
Key Features
- AST 1200 Swing Table Shot Blasting Machine for Surface Preparation and Cleaning.
- Heavy-duty design for continuous industrial operation.
- Provides uniform and high-quality surface cleaning.
- Powerful blast wheel for effective rust, scale, and impurity removal.
- Easy loading and unloading with swing table design.
- Efficient abrasive recovery system reduces media consumption.
- Low maintenance and reliable performance.
Benefits
- AST 1200 Swing Table Shot Blasting Machine for Surface Preparation and Cleaning.
- Improves surface finish quality of castings and forgings.
- Reduces manual cleaning effort and labour cost.
- Increases production efficiency with faster cleaning cycles.
- Provides consistent blasting results.
- Enhances surface preparation before painting and coating.
About AST 1200 Swing Table Shot Blasting Machine
The AST 1200 Swing Table Shot Blasting Machine is designed for a wide range of industrial applications, including medium and heavy-weight castings, forgings, heat-treated workpieces, and welded structures. This machine is suitable for cleaning various components such as transmission housings, engine blocks, heads, wheels, crankshafts, and other fabricated parts.
The AST 1200 Swing Table Shot Blasting Machine is ideal for batch production applications where different sizes of components need efficient and uniform surface cleaning. The rotating swing table allows complete blasting coverage, ensuring consistent surface finish and effective removal of rust, scale, sand, and impurities.
GEC offers advanced swing table type shot blasting machines with robust construction, reliable performance, and easy operation. These machines are available in different table sizes and capacities to meet the requirements of small, medium, and large-scale foundries, heavy machinery manufacturers, automotive industries, and various engineering sectors.
The AST 1200 Swing Table Shot Blasting Machine provides high-quality surface preparation, improved productivity, and reduced manual cleaning effort, making it a reliable solution for industrial surface treatment applications.
Learn more about our Shot Blasting Machines and explore our complete range of surface preparation solutions. For more information about surface preparation standards and blasting applications, visit Indiamart – Shot Blasting.
Technical Specification
| S.No |
Particulars |
AST-900 |
AST-1200 |
AST-1500 |
AST-1800 | AST-2400 |
|---|---|---|---|---|---|---|
| 1. |
Size of Blast Wheel |
12.5" X 2.5" |
19.5" X 2.5" | 19.5" × 2.5" | 19.5" × 2.5" | 19.5" × 2.5" |
|
2. |
No. of Blast Wheel |
1 |
1 |
1 |
1 |
2 |
|
3. |
Power of Blast Wheel | 10 H.P. | 15 H.P. | 20 H.P. | 25 H.P. | 20 H.P. |
|
4. |
No. of Swing Table (as per demand) | One / Two | One / Two | One / Two | One / Two | One / Two |
|
|
Diameter of Swing Table | 900mm (36") | 1200mm (48") | 1500 mm (60") | 1800 mm (72") | 2400 mm (96") |
| 6. | Maximum Load on Table | 400 Kg | 750 Kg | 1200 Kg | 2500 Kg | 4500 Kg |
| 7. | Loading Height (mm) | 1000 | 950 | 950 | 950 | 1200 |
|
8. |
Maximum Job Height (mm) | 500 | 600 |
700 |
1000 |
1060 |
|
|
Type of Dust Collector (as per demand) | Pulse JET | Pulse JET | Pulse JET | Pulse JET | Pulse JET |
| 10. | Total Required Power (H.P.) |
16 |
23 |
28 |
36 |
56 |
|
11. |
Height of the Machine | 4100mm |
4300mm |
4500mm | 5500mm | 5750mm |
|
12. |
Requirement of the Pit | No | No | No | No | No |
Note: We also customize the design & manufacture the machine as per customer requirements
Product Before After
Before
After
Discover our Airless Swing Table in 360°
