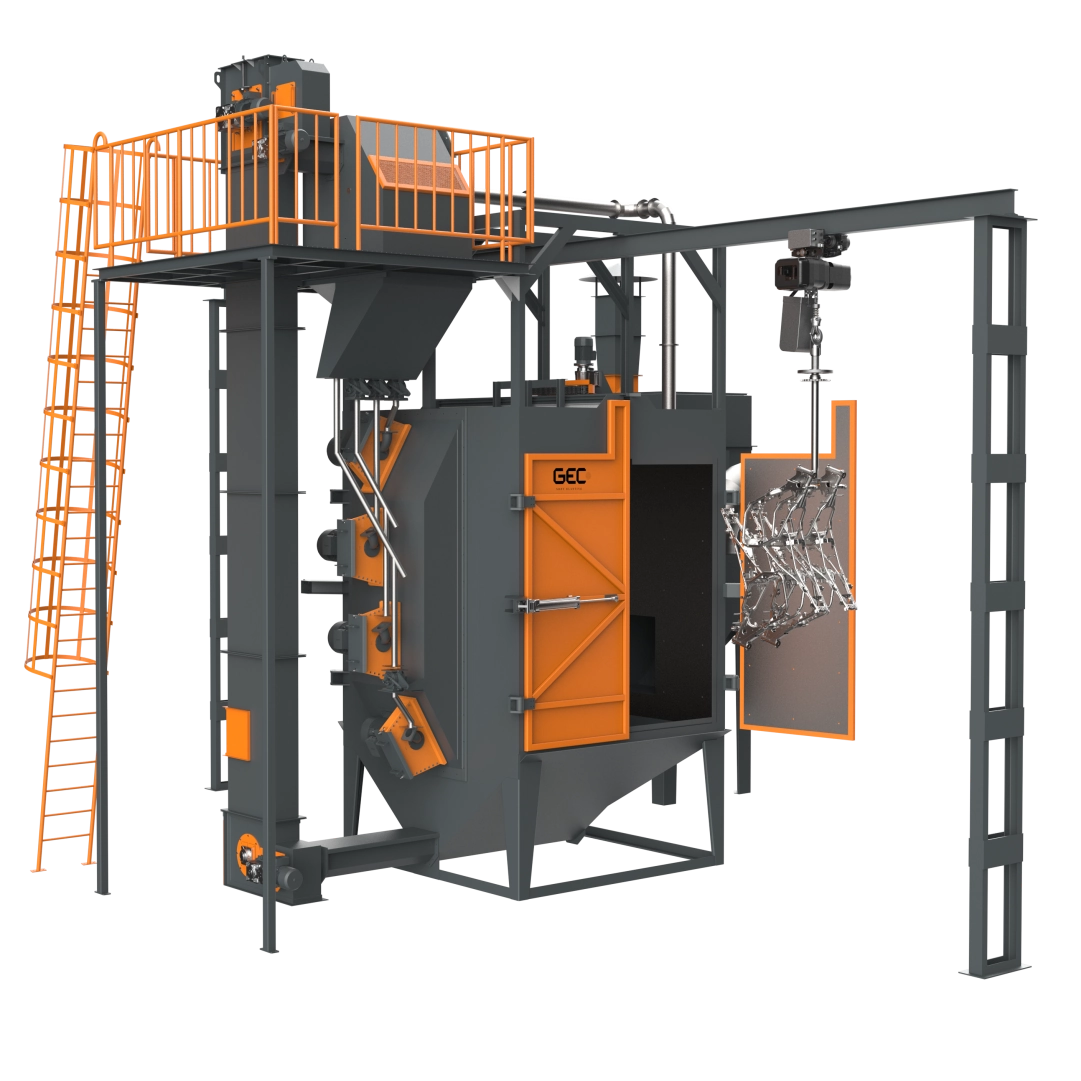

Spinner Hanger Shot Blast Machines
Spinner Hanger Shot Blast Machines deliver superior surface preparation results, making them the preferred choice for industries requiring high-quality cleaning and finishing of hanging workpieces before painting, coating, or further processing.
Optional Accessories
- PLC & HMI Control System & VFD for Blast Wheels
- Cartridge Type Dust Collector
- Automatic Loading System & Magnetic Separator
- Abrasive Replenishment System
- Soundproof Enclosure & Safety Interlocks
- Heavy Duty Hanger Fixtures
- Remote Monitoring System
Applications
- Steel Fabrication Industry
- Automotive Components
- Foundry Castings & Forging Industry
- Railway Components
- Structural Steel Sections
- Engineering Parts
- Heavy Machinery Components
Key Features
- Uniform 360° shot blasting coverage
- Suitable for delicate and heavy workpieces
- High production efficiency
- Robust and durable construction
- Energy-efficient blast wheel technology
- Easy loading and unloading system
- Low maintenance requirements
Applications
- Uniform 360° Surface Cleaning
- Improves Paint & Coating Adhesion
- Removes Rust, Scale & Contaminants
- Suitable for Complex Workpieces
- Higher Productivity & Efficiency
- Reduced Labor & Operating Costs
- Consistent Surface Finish & Low Maintenance Operation
- Enhanced Product Quality & Long Equipment Service Life
About Spinner Hanger Shot Blast Machines
Spinner Hanger Shot Blast Machines are designed for cleaning, descaling, deburring, and surface preparation of medium to heavy components. These machines use rotating hangers to suspend workpieces while high-velocity steel shots are projected onto the surface, ensuring complete and uniform cleaning.
The machine is ideal for complex-shaped, fabricated, cast, forged, and welded components that cannot be processed in tumble-type machines. Spinner Hanger Shot Blast Machines improve surface quality, enhance coating adhesion, and increase product durability.
Technical Specification
|
S. No. |
Description |
ASH 100-140/2W |
ASH 120-180/3W |
ASH 180-250/4W |
ASH 200-300/4W |
|---|---|---|---|---|---|
|
1. |
Envelope Size Dia (mm) |
1000 |
1200 |
1800 |
2000 |
|
Height (mm) |
1200 |
1800 |
2500 |
3000 |
|
|
2. |
No. of Blast Wheels (Turbines) |
2 |
3 |
4 |
5-Apr |
|
3. |
Power of Each Blast Wheel |
15 HP |
15 / 20 HP |
15 / 20 HP |
20 / 25 HP |
|
4. |
Load Carrying Capacity (per hanger) |
500 Kg |
5000 Kg |
25000 Kg |
25000 Kg |
|
5. |
Hanger Rotation Speed (R.P.M.) |
4-6 |
4-6 |
4-6 |
4-6 |
|
6. |
Blasting Cycle Time (Per Hanger) |
6–8 min (approx.) |
6–8 min (approx.) |
6–8 min (approx.) |
6–8 min (approx.) |
|
7. |
Type of Dust Collector |
Pleated Bag |
Pleated Bag |
Pleated Bag |
Pleated Bag |
|
8. |
Overall Height of Machine |
5000 mm |
5700 mm |
7500 mm |
7900 mm |
|
9. |
Type of Conveyor (as per requirement) |
Y Hanger / Close Loop / Monorail |
Y Hanger / Close Loop / Monorail |
Y Hanger / Close Loop / Monorail |
Y Hanger / Close Loop / Monorail |
|
10. |
Motorized hoist |
optional |
optional |
optional |
optional |
Note: We also customize the design & manufacture the machine as per customer requirements
