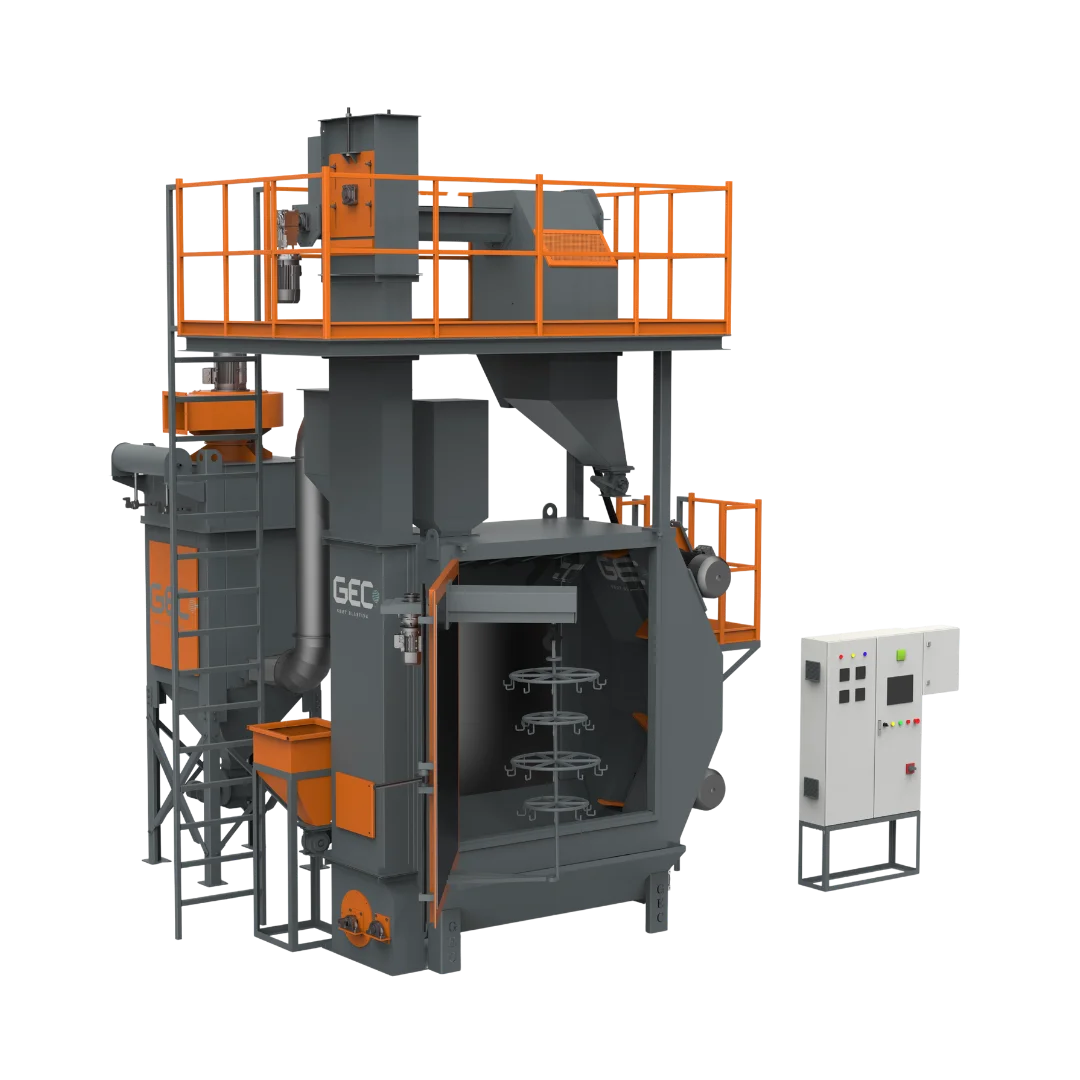

Door Mounted Hanger Type Shot Blasting Machine
GEC Blasting manufactures high-performance Door Mounted Hanger Type Shot Blasting Machines designed to deliver reliable, efficient, and cost-effective surface preparation solutions for various industrial applications
Optional Accessories
- Single Door Type for Double Door Type
- Automatic Operation
- PLC Control System
- VFD Drive System
- Pulse Jet Dust Collector
- Monorail Conveyor for Heavy Duty Construction
- Custom Capacity Available for Automatic Abrasive Recovery
Applications
- Steel structures
- Fabricated components
- Welded assemblies
- Castings and forgings
- Railway components
- Construction machinery parts
- Automotive components for Heavy engineering equipment
Key Features
- Heavy-duty manganese steel blast chamber
- Front door mounted rotating hanger system
- Uniform blasting coverage on complex components
- High-efficiency blast wheels
- Automatic abrasive recovery and recycling system
- Dust collector for a clean working environment
- Low maintenance and energy-efficient operation
- Suitable for small, medium, and large fabricated parts
Benefits
- Improves surface finish quality
- Increases coating adhesion
- Reduces manual cleaning time
- Enhances productivity
- Provides consistent blasting results
- Lowers operating costs
About Door Mounted Hanger Type Shot Blasting Machine
Door Mounted Hanger Type Shot Blasting Machine is specially designed for cleaning, descaling, deburring, and surface preparation of medium to heavy fabricated components. The machine uses a rotating hanger system mounted on a front-loading door, allowing easy loading and unloading of workpieces while ensuring uniform blasting coverage on all surfaces.
This machine is widely used in industries such as steel fabrication, automotive, foundry, construction equipment, railways, heavy engineering, and infrastructure manufacturing. It effectively removes rust, mill scale, welding slag, old paint, and other surface contaminants to create the ideal surface profile for painting, powder coating, galvanizing, or further processing.
Learn more about our Shot Blasting Machines and explore our complete range of surface preparation solutions. For more information about surface preparation standards and blasting applications, visit Indiamart – Shot Blasting.
Technical Specification
| Model | No. of Turbines |
Component Dimension |
Dimensions of |
Bucket Elevator | |||
|---|---|---|---|---|---|---|---|
| A |
C |
B (Width) | L (Length) | H (Height) |
With Air Separator |
||
| ASH-2 | 2 | Ø600 | 1000 | 1600 | 1950 | 4200 | 5300 |

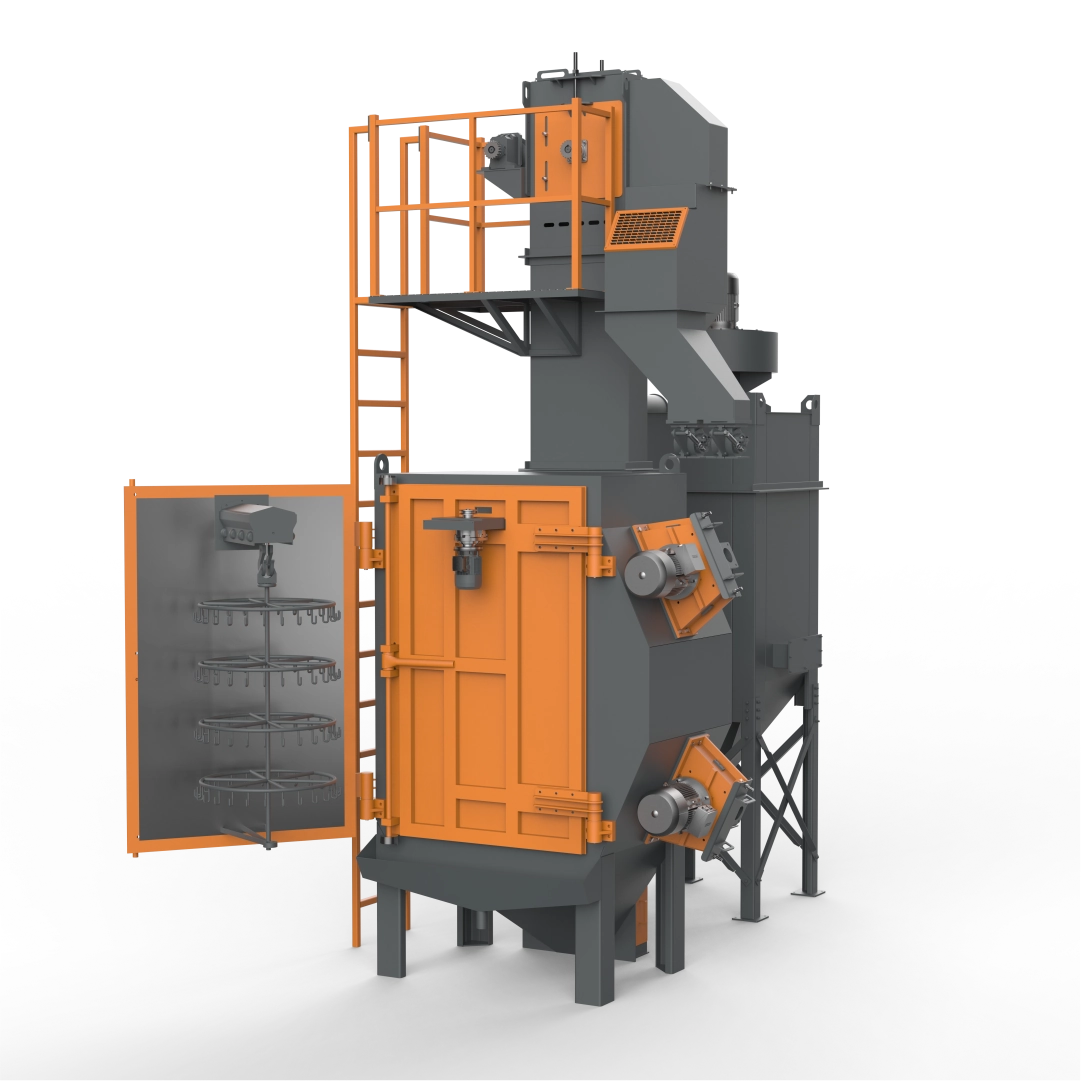

| ASH-7 | 2 | Ø750 | 1000 | 1700 | 2050 | 5000 | 5400 |
| ASH-8 |
2 |
Ø1000 | 1400 | 1950 | 2700 | 5050 | 5700 |
Note: We also customize the design & manufacture the machine as per customer requirements
Product Before After
Before
