Shot blasting of Railway Coach up to 30 Mtrs.
GEC offers advanced Shot Blasting Systems for Railway Coaches up to 30 meters in length, designed for efficient and high-quality surface preparation of railway coaches, wagons, metro coaches, locomotive components and other large railway structures.
Workpieces

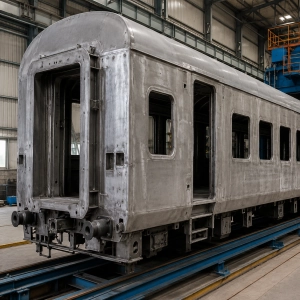

Railway Coach Bodies

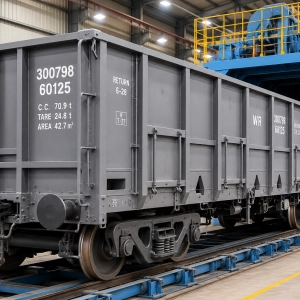

Railway Wagons

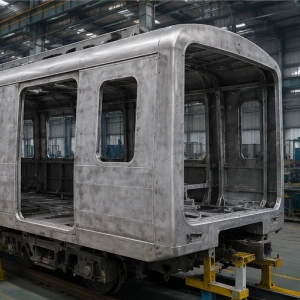

Metro Coach Structures

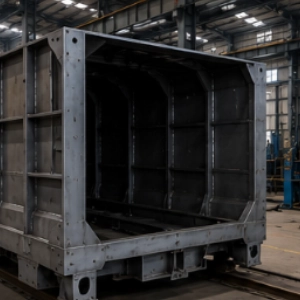

Large Steel Fabrications
Applications
- Shot Blasting of Railway Passenger Coaches.
- Surface Preparation of Railway Coach Bodies.
- Removal of Rust, Mill Scale & Old Paint.
- Cleaning of Railway Wagons & Metro Coaches.
- Preparation of Surface for Protective Coating.
- Surface Cleaning of Large Railway Fabricated Structures.
- Preparation of Railway Components Before Painting.
- Removal of Welding Scale & Surface Contaminants.
About
GEC offers a high-performance Shot Blasting System for Railway Coaches up to 30 Meters in Length. The system is specially designed for the efficient cleaning, descaling and surface preparation of large railway coaches and fabricated railway structures.
The machine uses high-speed abrasive blasting technology to remove rust, mill scale, old paint, welding scale and other surface contaminants. It provides a clean and uniform surface suitable for painting, coating and further surface treatment.
Designed for heavy-duty railway applications, the system combines high-performance blast wheels, an efficient abrasive recovery system and dust collection technology to achieve reliable and consistent blasting results.
The RSB-30M Railway Coach Shot Blasting System is designed with an airless roller conveyor type work handling arrangement and can be configured for automatic or semi-automatic operation according to production requirements.
Technical Specification
|
S. No. |
Model / Equipment Description |
RSB – 30M (Railway Coach) |
RSB – BF (Bogie Frame / Bolster) |
RSB – MS (Metro Seat / Container) |
RSP – SP (Spring / Gear Peening) |
|---|---|---|---|---|---|
|
1. |
Machine Type | Airless Roller Conveyor Type | Spinner Hanger / Monorail Type | Monorail / Conveyor Type | Shot Peening Type (Rotary Table / Spinner Hanger) |
| 2. | No. of Blast Wheels | 12 Wheels | 8 Wheels | 6 Wheels | 2 Wheels |
|
3. |
Power of Blast Wheel | 15 – 20 HP | 15 HP | 10 – 15 HP | 10 – 15 HP |
|
4. |
Work Handling System | Roller Conveyor (Continuous Type) | Monorail / Hanger Rotation | Monorail / Rotary Conveyor | Rotary Table / Spinner Hanger |
|
5. |
Workpiece Size Capacity (Approx.) | Up to 30 m in Length | 6 – 8 m Length | 2 – 3 m Length | Up to 1.5 m Diameter |
|
6. |
Surface Finish (SA) | SA 2.5 – SA 3.0 | SA 2.5 – SA 3.0 | SA 2.5 – SA 3.0 | SA 2.5 – SA 3.0 |
| 7. | Type of Dust Collector | Pulse JET Type | Pulse JET Type | Pulse JET Type | Pulse JET Type |
|
8. |
Workpiece Loading | Automatic / Semi-Automatic | Manual / Semi-Automatic | Manual / Semi-Automatic | Manual / Semi-Automatic |
|
9. |
Requirement of Pit |
Optional / Shallow Pit | No / Optional |
No |
No / Optional |
|
10. |
Application | Railway Coach up to 30 meters | Bogie Frames / Bogie Bolsters | Metro Seats / Container Rooms | Leaf Springs, Coil Springs, Helical Springs, Gears, Pinions |
Product Before After

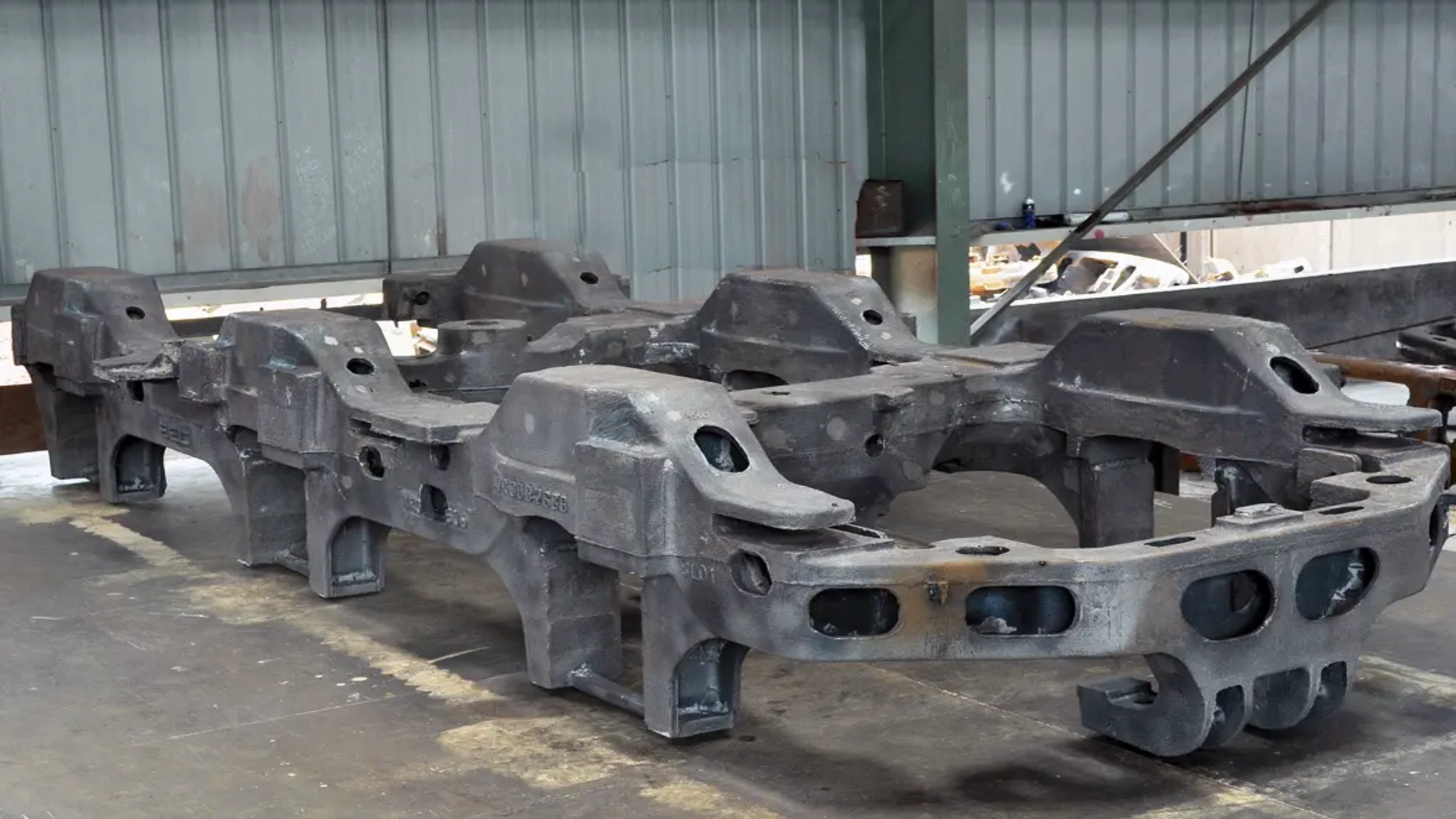

Before

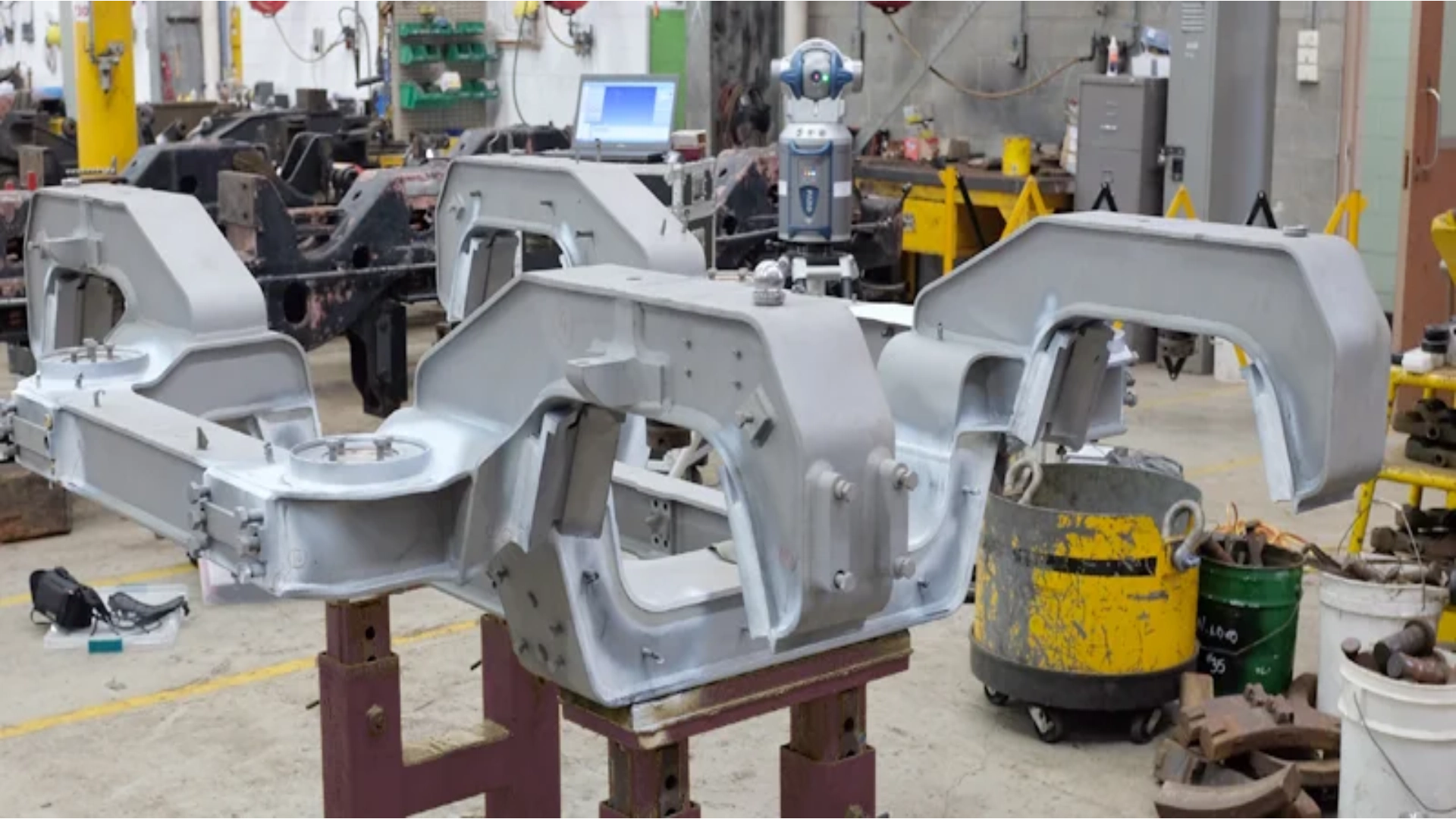

After
