Metro Seats Container Type Blast Room
The Metro Seats Container Type Blast Room is a specialized surface preparation system designed for abrasive blasting of metro rail seats, containers, fabricated structures and other medium-to-large components.
Workpieces
Abrasive Blasting
Loading

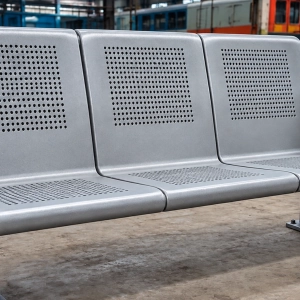

Rust & Removal
Applications
- Metro rail seat surface preparation
- Metro railway components
- Railway containers and fabricated structures
- Steel frames and assemblies
- Railway maintenance components
- Heavy fabricated components
- Rust and paint removal & Surface preparation before painting
- Protective coating preparation & Industrial metal components
About
The Metro Seats Container Type Blast Room is a specialized surface preparation system designed for abrasive blasting of metro rail seats, containers, fabricated structures and other medium-to-large components.
The system provides a controlled blasting environment for removing rust, old paint, scale, oxidation and surface contaminants before painting, powder coating or protective coating.
The container-type configuration offers a compact and practical solution where a conventional permanent blast room is not suitable. Containerized blast rooms can integrate abrasive recovery and dust-collection systems while reducing installation requirements.
Technical Specification
|
S. No. |
Model / Equipment Description |
RSB – 30M (Railway Coach) |
RSB – BF (Bogie Frame / Bolster) |
RSB – MS (Metro Seat / Container) |
RSP – SP (Spring / Gear Peening) |
|---|---|---|---|---|---|
|
1. |
Machine Type | Airless Roller Conveyor Type | Spinner Hanger / Monorail Type | Monorail / Conveyor Type | Shot Peening Type (Rotary Table / Spinner Hanger) |
| 2. | No. of Blast Wheels | 12 Wheels | 8 Wheels | 6 Wheels | 2 Wheels |
|
3. |
Power of Blast Wheel | 15 – 20 HP | 15 HP | 10 – 15 HP | 10 – 15 HP |
|
4. |
Work Handling System | Roller Conveyor (Continuous Type) | Monorail / Hanger Rotation | Monorail / Rotary Conveyor | Rotary Table / Spinner Hanger |
|
5. |
Workpiece Size Capacity (Approx.) | Up to 30 m in Length | 6 – 8 m Length | 2 – 3 m Length | Up to 1.5 m Diameter |
|
6. |
Surface Finish (SA) | SA 2.5 – SA 3.0 | SA 2.5 – SA 3.0 | SA 2.5 – SA 3.0 | SA 2.5 – SA 3.0 |
| 7. | Type of Dust Collector | Pulse JET Type | Pulse JET Type | Pulse JET Type | Pulse JET Type |
|
8. |
Workpiece Loading | Automatic / Semi-Automatic | Manual / Semi-Automatic | Manual / Semi-Automatic | Manual / Semi-Automatic |
|
9. |
Requirement of Pit |
Optional / Shallow Pit | No / Optional |
No |
No / Optional |
|
10. |
Application | Railway Coach up to 30 meters | Bogie Frames / Bogie Bolsters | Metro Seats / Container Rooms | Leaf Springs, Coil Springs, Helical Springs, Gears, Pinions |
Product Before After

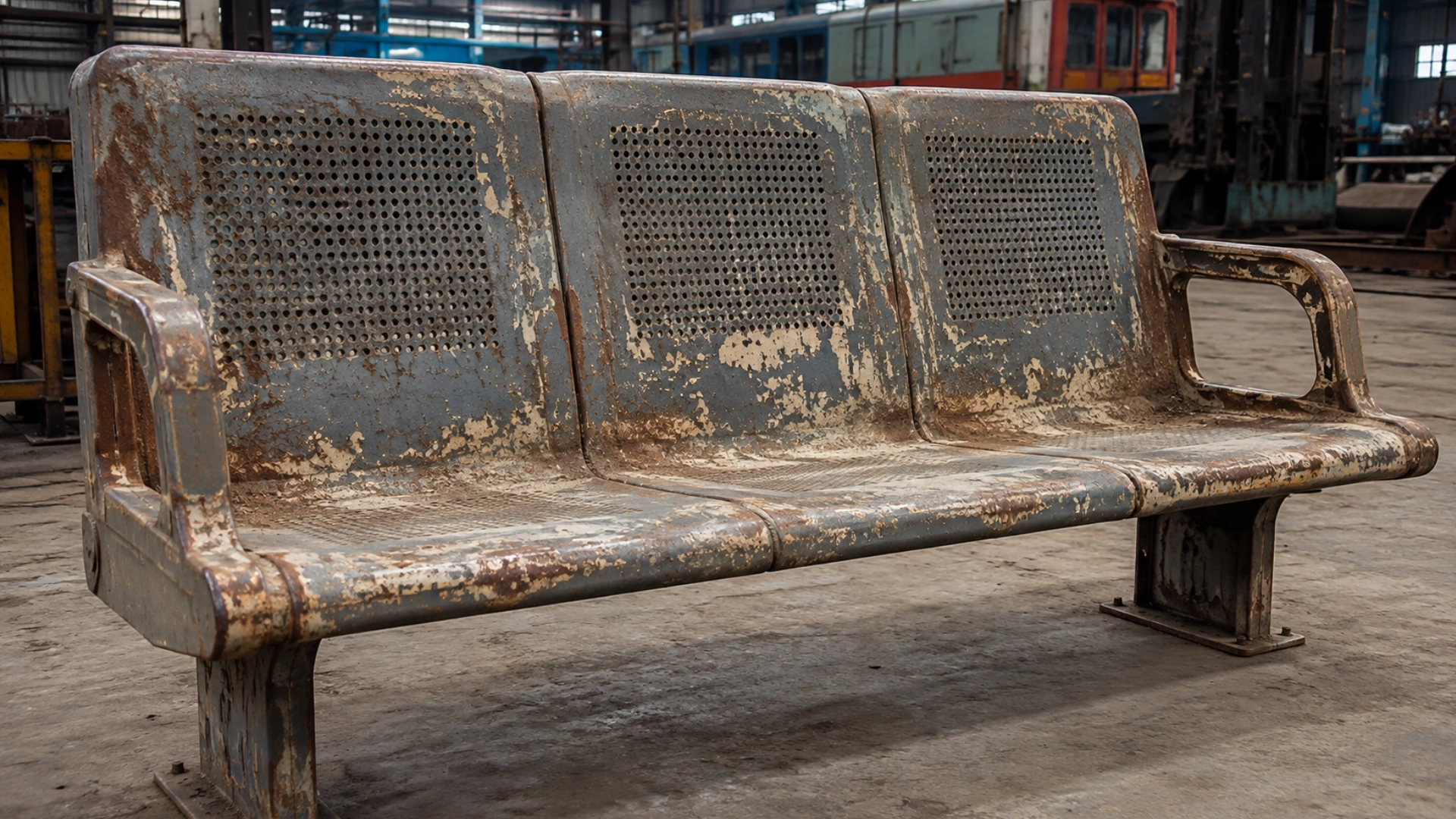

Before

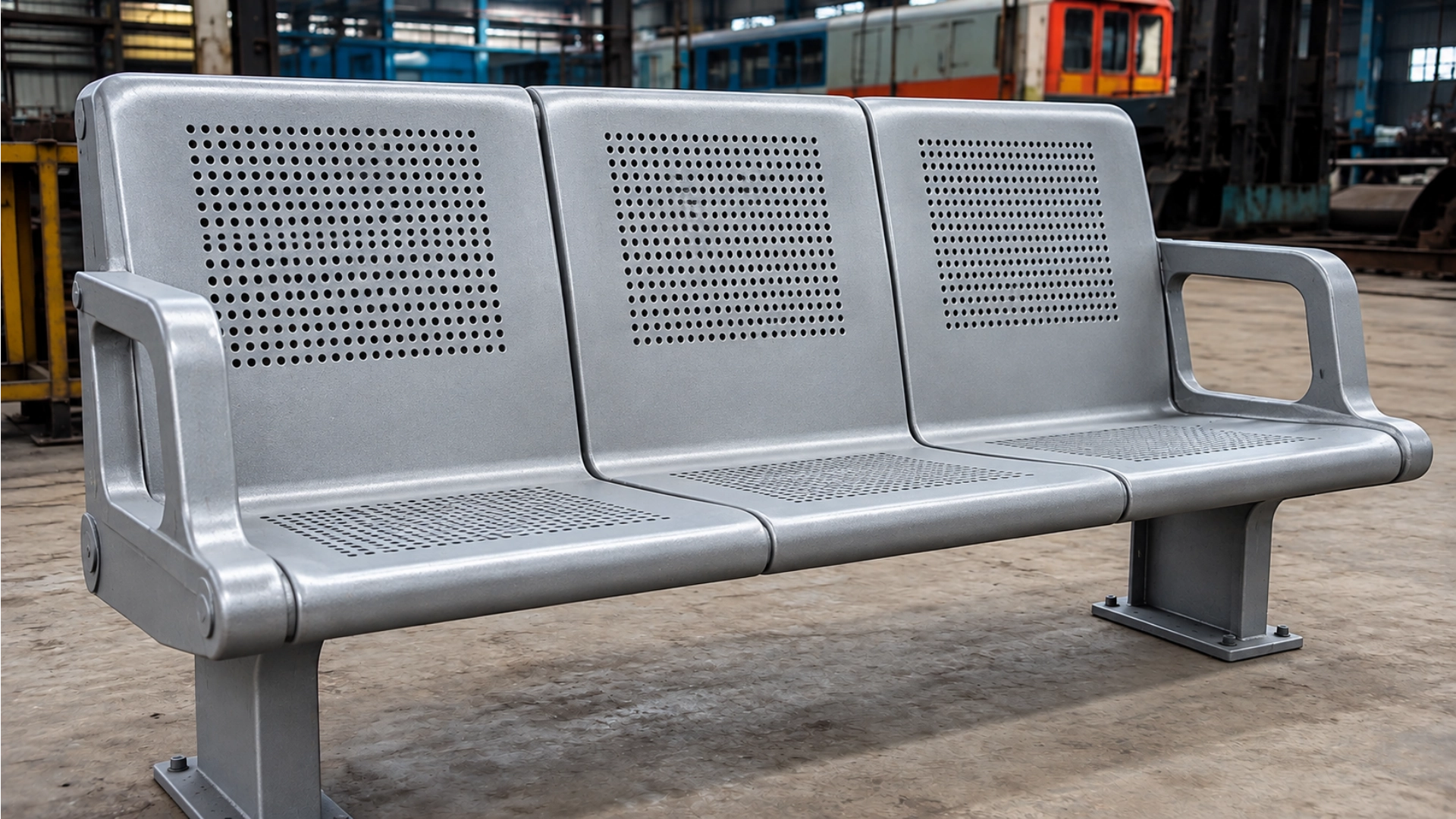

After
