Wire Rod Coil Shot Blasting Machines
Wire Rod Coil Shot Blasting Machines are specially designed for cleaning and descaling wire rods and coils before further processing.
Workpieces

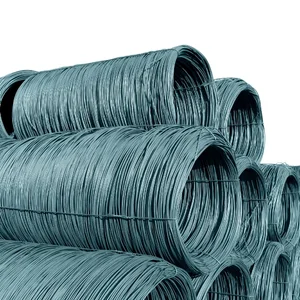

Wire Rod Coils

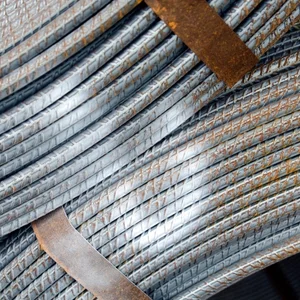

Steel Wire Coils

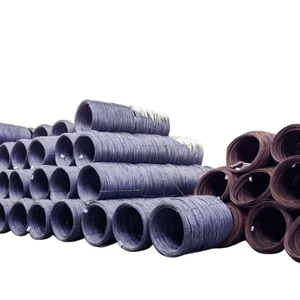

High Carbon Wire Rods

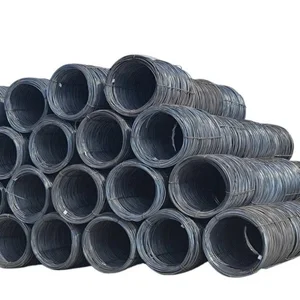

Alloy Steel Wire Coils
Applications
- Continuous and uniform shot blasting of wire rod coils
- Removal of mill scale, rust, and surface contaminants
- Surface preparation before drawing, coating, or galvanizing
- Improved surface roughness for better adhesion of coatings
- Automated handling and blasting of heavy wire rod coils
- Inline integration with rolling mills, drawing, and processing lines
About
Wire Rod Coil Shot Blasting Machines are specially designed for cleaning and descaling wire rods and coils before further processing. Using high-speed abrasive blasting, these machines effectively remove rust, mill scale, and surface impurities, ensuring a smooth and clean finish. This process improves surface adhesion for coating, drawing, or other downstream treatments.
Built with robust construction and advanced blasting technology, these machines deliver consistent cleaning results with high efficiency. They reduce manual handling, improve productivity, and extend the service life of wire products. Widely used in steel plants, metal processing, and manufacturing industries, they guarantee reliable performance and superior surface quality.
Technical Specification
|
|
Description |
|
|
|---|---|---|---|
|
1. |
Coil / Rod Diameter (mm) |
2000 |
3000 |
|
2. |
Maximum Coil Weight (kg) |
1000 |
1500 |
|
3. |
No. of Blast Wheel |
4 |
6 |
|
4. |
Power of Blast Wheel |
15 HP |
15 HP |
|
5. |
conveyor / Rotation Speed |
0.5–2 m/min (variable) |
0.5–2 m/min |
|
6. |
Type of Dust Collector (As per demand) |
Pulse JET |
Pulse JET |
|
7. |
Height of the Machine (mm) |
7000 |
7500 |
|
8. |
Roller / Coil Pitch (mm) |
900 |
900 |
|
9 |
Requirement of Pit |
No |
No |
Product Before After

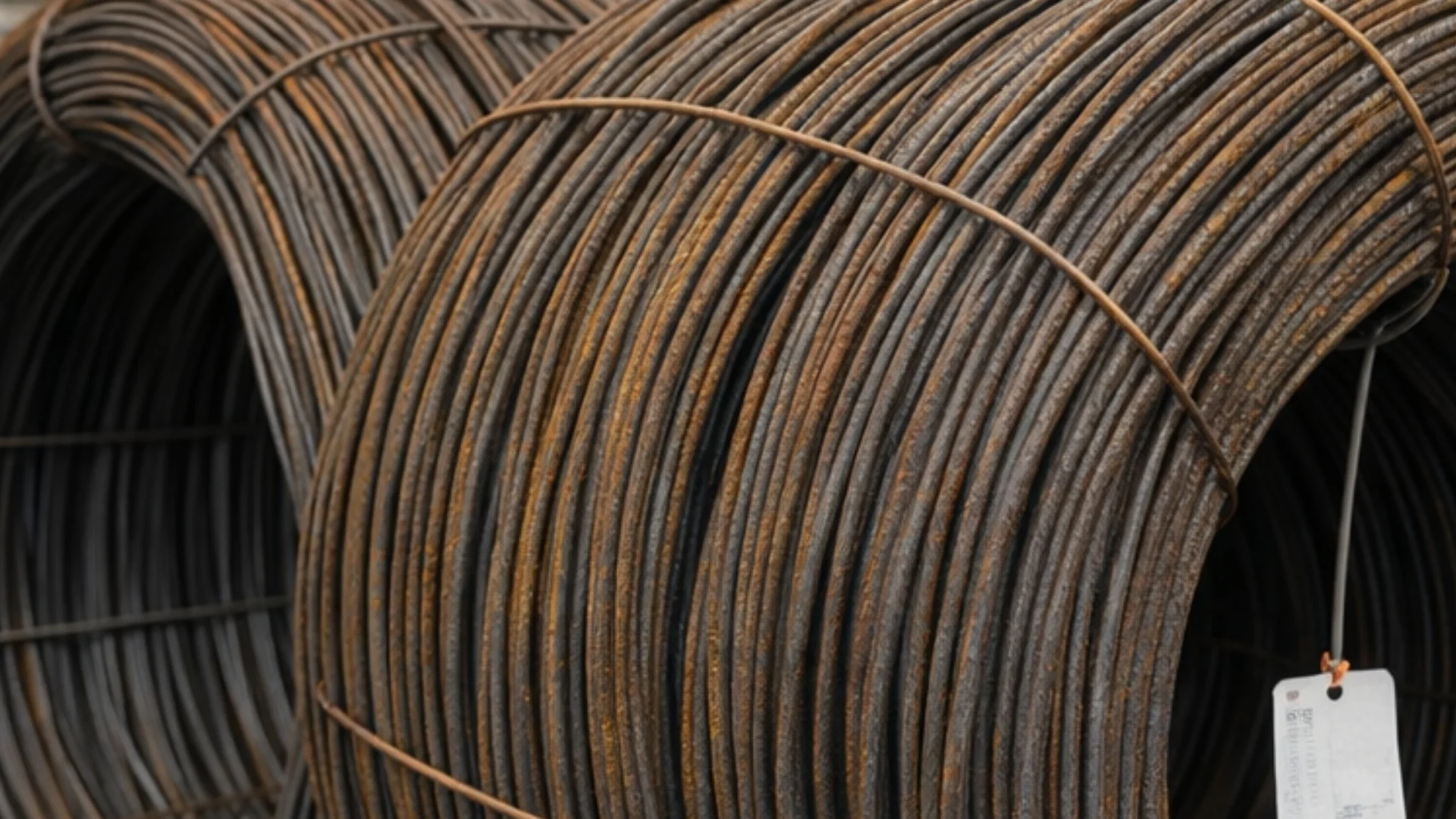

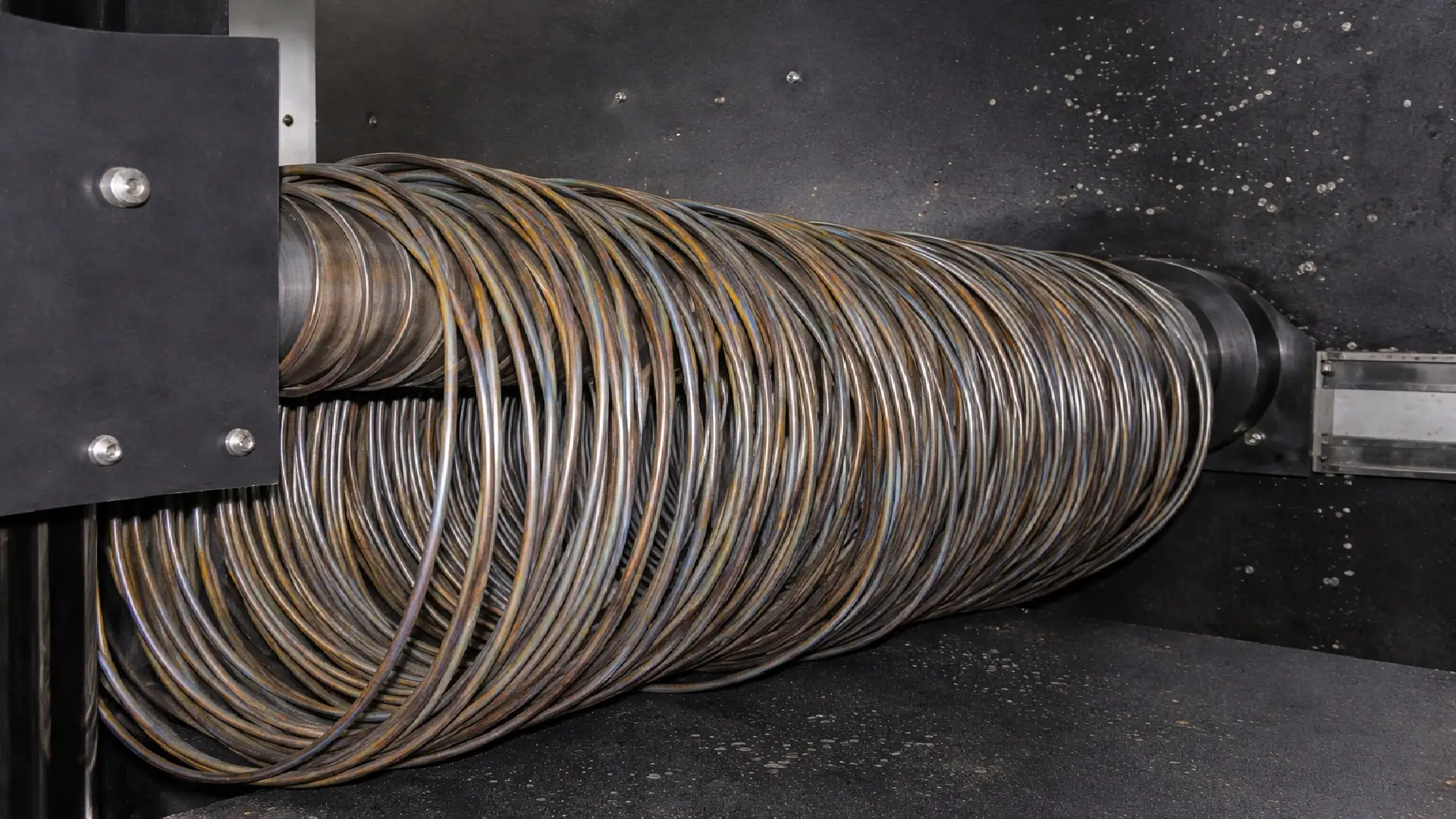

Before

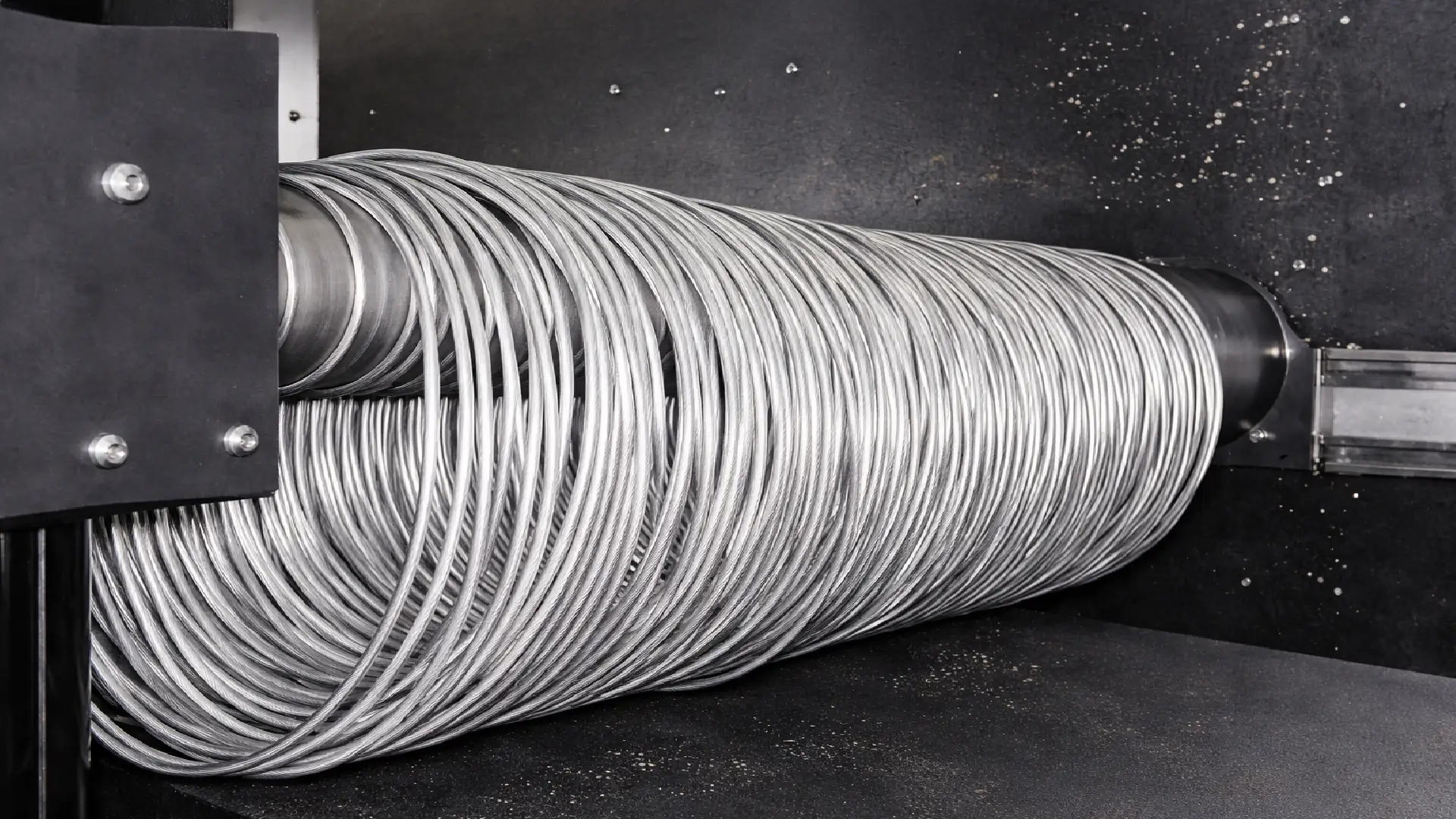

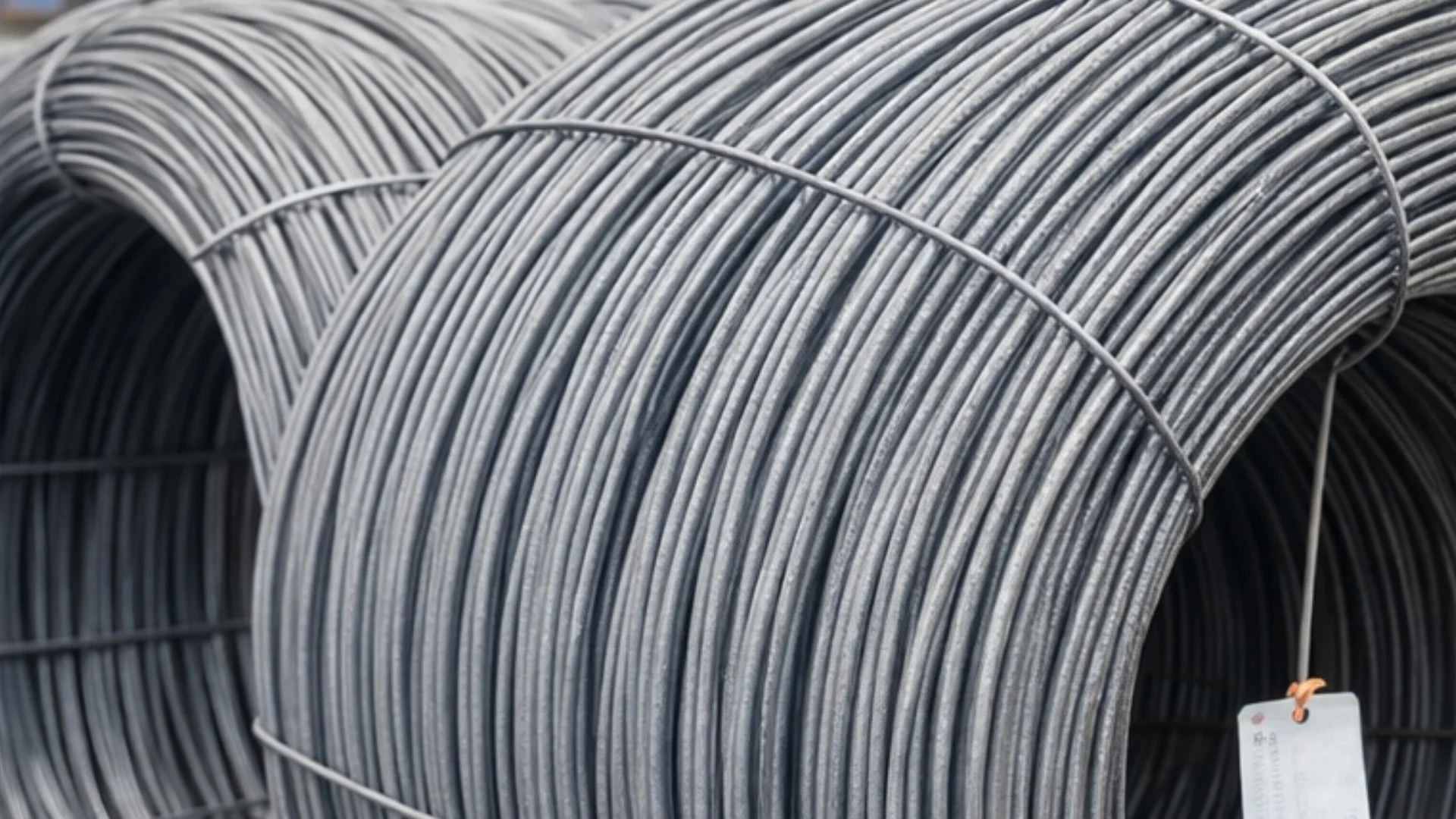

After
Discover our Wire Rod Coil Shot Blasting Machines in 360°
