Roller Conveyor For Aluminium Profile
The GEC Roller Conveyor System for Aluminium Profiles is specially designed to handle long and lightweight aluminium extrusions with ease.
Workpieces

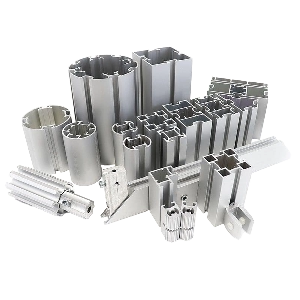

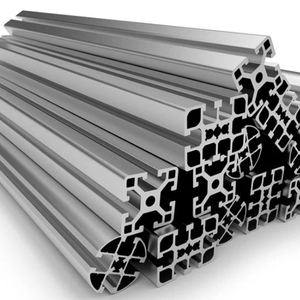

Aluminium Extrusion Profiles

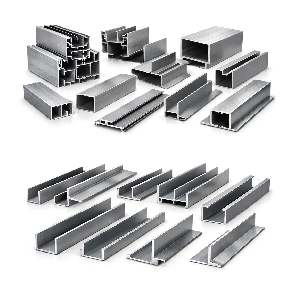

Aluminium Sections & Channels

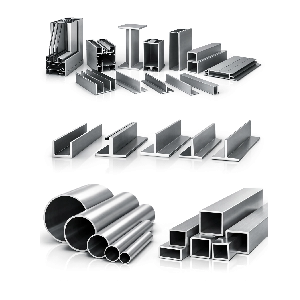

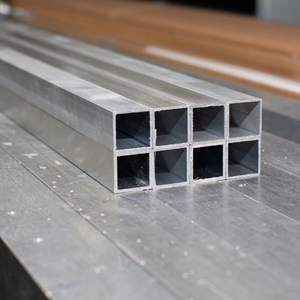

Aluminium Pipes & Tubes

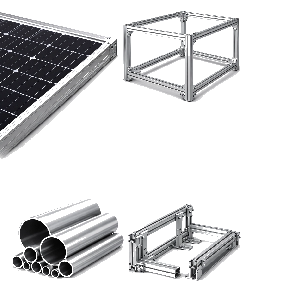

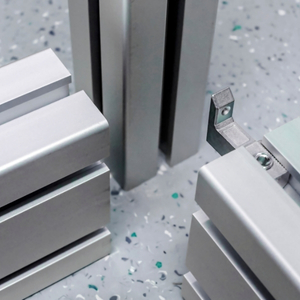

Aluminium Frames
Applications
- Shot Blasting Machines – Surface cleaning and oxide removal
- Powder Coating Plants – Surface preparation before coating
- Anodizing Lines – Improving surface finish and corrosion resistance
- Painting / Pretreatment Lines – Enhancing paint adhesion
- Deburring & Finishing Lines – Edge finishing and surface smoothing
About
The GEC Roller Conveyor System for Aluminium Profiles is specially designed to handle long and lightweight aluminium extrusions with ease. It provides smooth, stable, and efficient movement, ensuring profiles remain aligned and protected during production, finishing, or surface preparation.
Built with durable rollers and a robust frame, the system minimizes friction and reduces manual handling. Its reliable design improves workflow efficiency, enhances productivity, and maintains the quality of delicate aluminium surfaces, making it an excellent choice for industrial applications.
Technical Specification
|
S. No. |
Description |
AT-250-50-4W |
AT-200-100-8W |
|---|---|---|---|
|
1. |
Opening Width |
2500 |
2000 |
|
2. |
Opening Height |
500 |
1000 |
|
3. |
No. of Blast Wheel |
4 |
8 |
|
4. |
Power of Blast Wheel |
15 HP |
15 HP |
|
5. |
Roller Conveyor Speed |
0.5 – 3 m/min (variable) |
0.5 – 3 m/min |
|
6. |
Type of Dust Collector |
Pulse JET |
Pulse JET |
|
7. |
Height of the Machine (mm) |
6500 |
7700 |
|
8. |
Roller Pitch (mm) |
900 |
900 |
|
9. |
Requirement of Pit |
No |
No |
Note: We also customize the design & manufacture the machine as per customer requirements

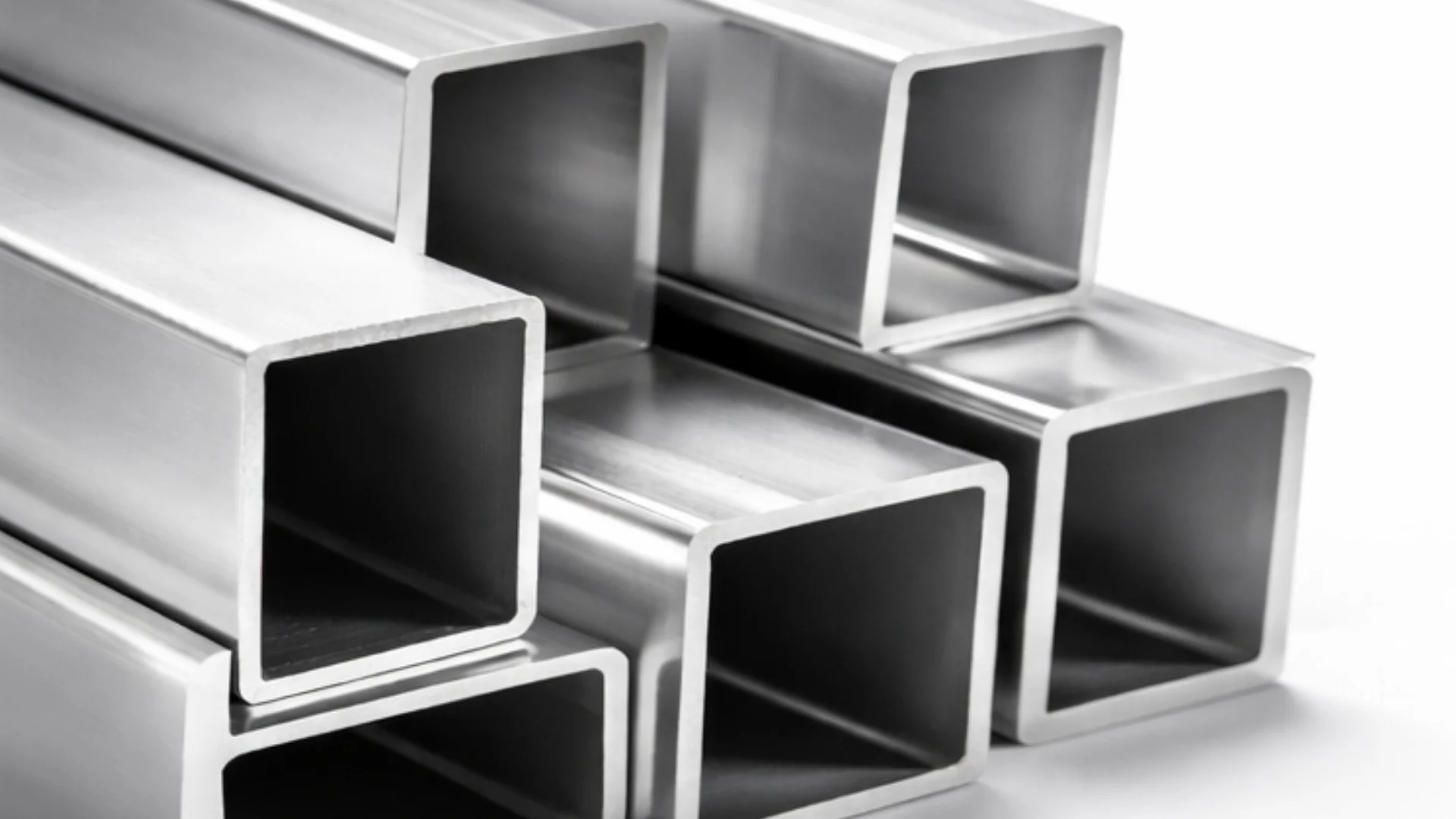

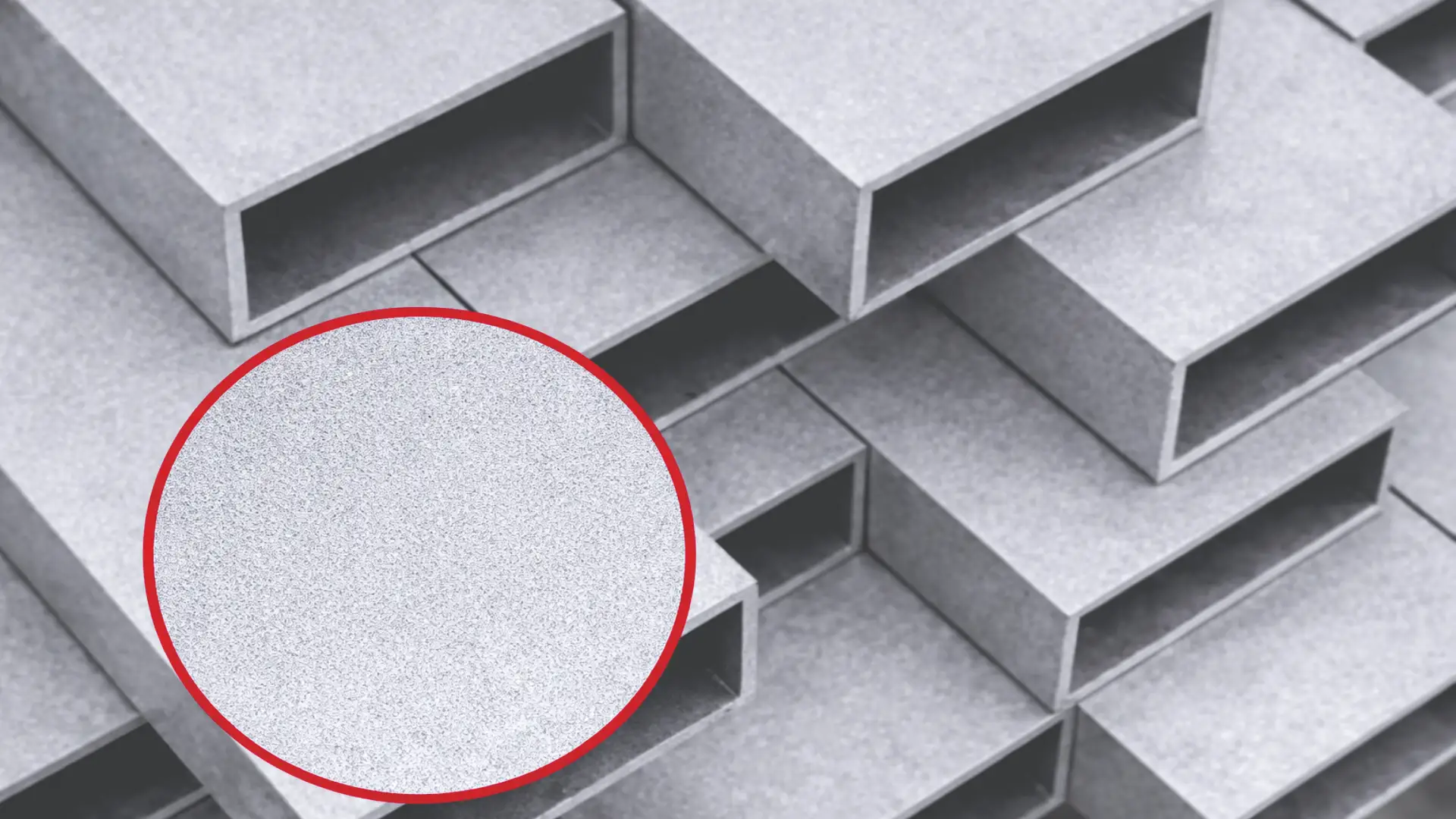

Product Before After

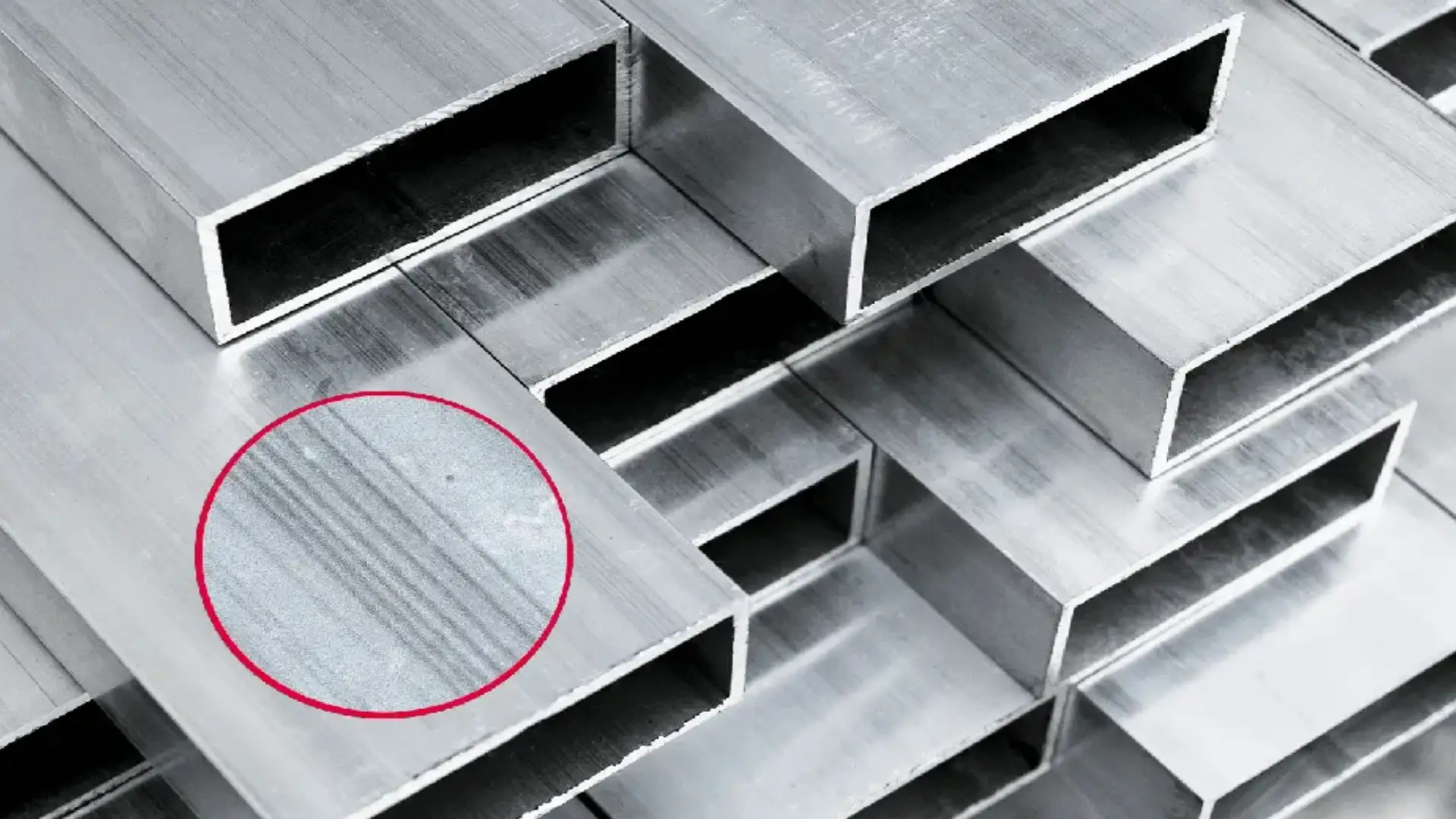

Before
