Automatic Tumble Type Auto Loader Shot Blasting Machine
Automatic Tumble Type Airless Shot Blasting Machine is used for cleaning castings & forgings, removing heat scales, and improving fatigue life of components through efficient single-cycle blasting with a heavy-duty chamber and 300 mm wear-resistant rotor.
Workpieces

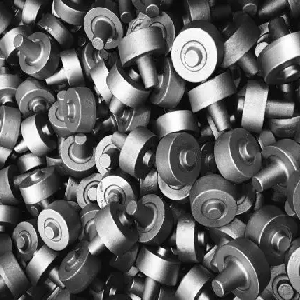

CI SG Iron Castings

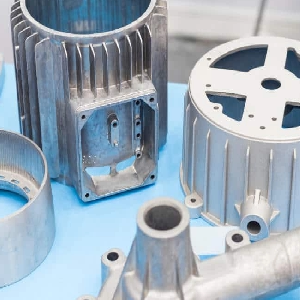

Aluminum Die Cast Components

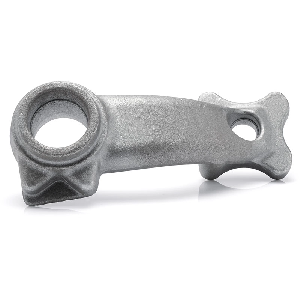

Forged Parts

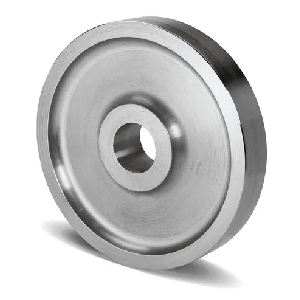

Gear Blanks & Small Machined Parts
Applications
- Foundry castings cleaning
- Removal of sand, rust, and scale
- Surface preparation before painting or coating
- Descaling of heat-treated components
- Cleaning of forged and fabricated parts
About
Shot blasting is required for cleaning of castings and forgings, removal of heat scales, increasing pressure withstanding capacity of Die castings, shot peening of springs/gears etc., to increase their fatigue life, replace acid pickling and many other special applications for relatively small components.
We strongly recommend our airless centrifugal shot blasting machines with dust collection chambers. The components are continuously tumbled during the abrasive blast cleaning process and dust collection; filter bags are shaken after blasting operation by electrically operated mechanism. This ensures speedy and total cleaning operation in single cycle and this minimizes time, expense etc.
1. SHOT BLASTING MACHINE: The main cleaning chamber is fabricated out of 6 mm thick M.S. Plates and rugged design, increases production, improved quality cleaning and cost reduction.
2. MAIN ROTOR: 300 mm dia. Main rotor is properly hardened and balanced and housed in steel castings with abrasion resistant/ wear resistant liners. The control cage (with 70°rectangular opening), blades and impeller will be of abrasion resistant material.
Technical Specification
|
S. No. |
Particulars |
ATB 27" x 36" |
|---|---|---|
|
1. |
Tumbler Size (mm) |
675 × 900 |
|
2. |
Drum Dia × Length |
675 × 900 mm |
|
3. |
Blast Wheel Size |
15½" × 2½" |
|
4. |
No. of Blast Wheel |
1 Nos. |
|
5. |
Production Capacity |
0–5 Ton / Day |
|
6. |
Batch Volume |
3 CFT |
|
7. |
Batch Weight |
200 Kg (Approx.) |
|
8. |
Max. Weight per Piece |
15–20 Kg |
|
9. |
Blast Wheel Power |
15 HP |
|
10. |
Dust Collector |
Pulse Jet / Pleated Bag |
Note: We also customize the design & manufacture the machine as per customer requirements

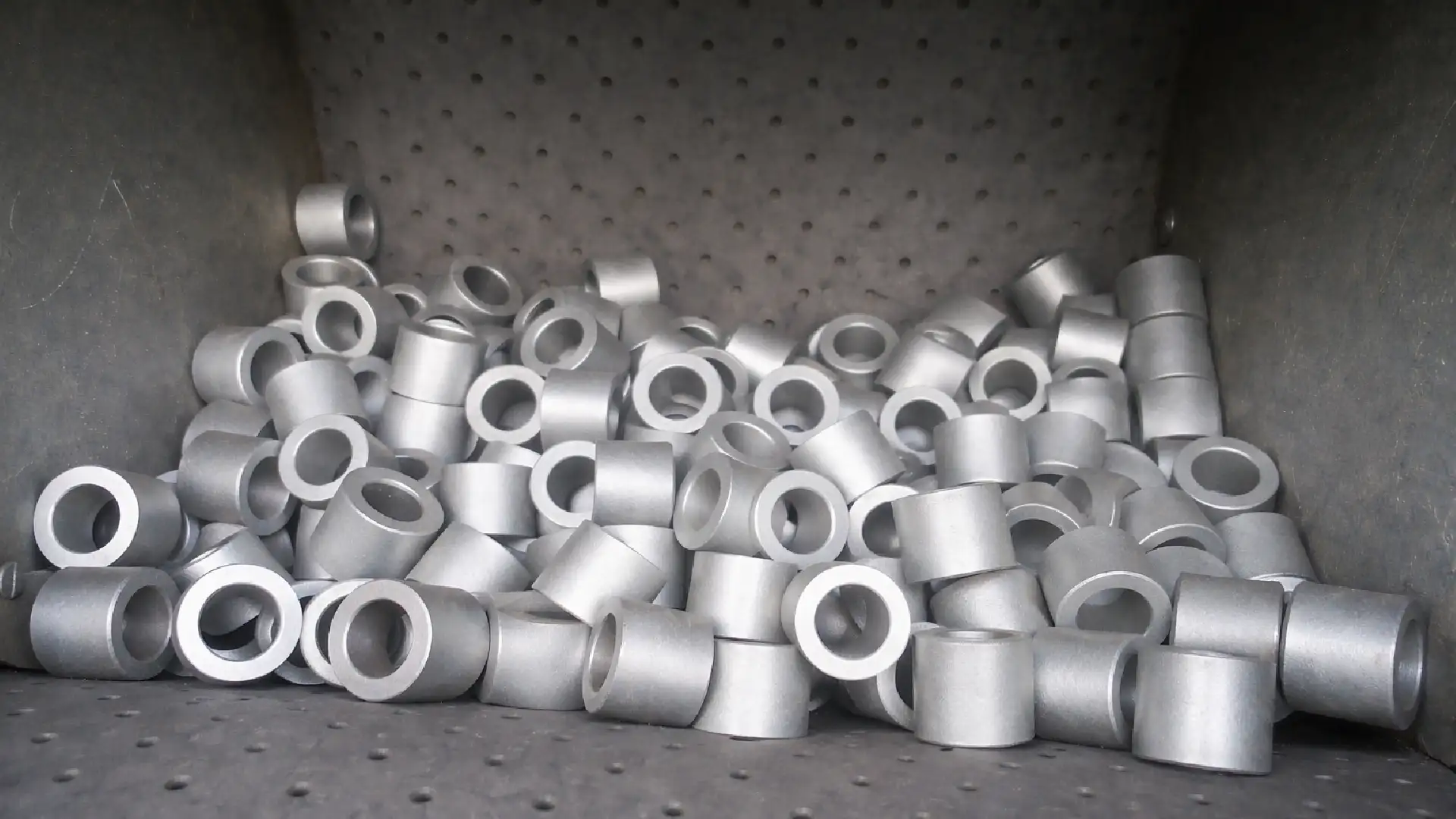

Product Before After

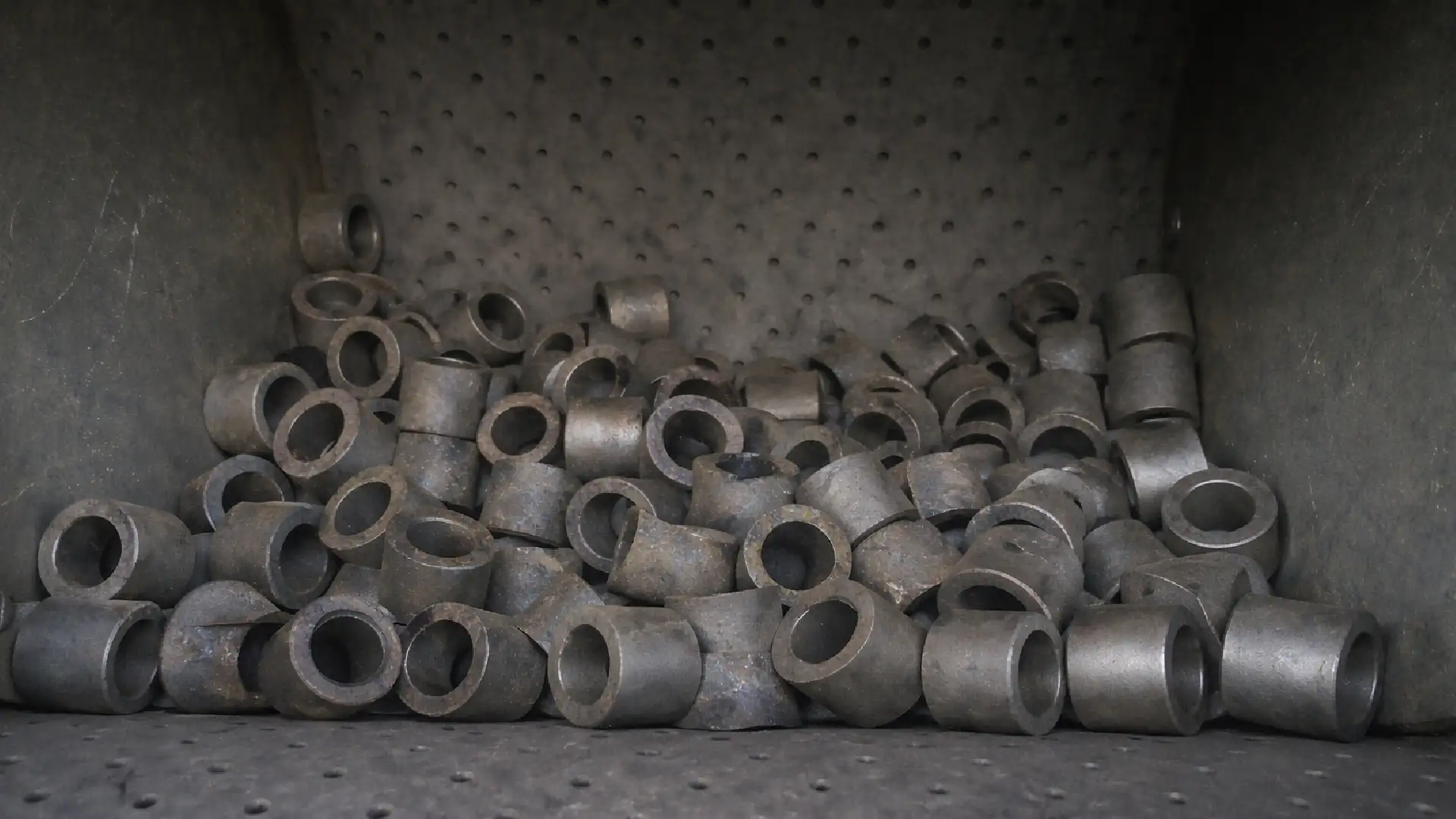

Before
