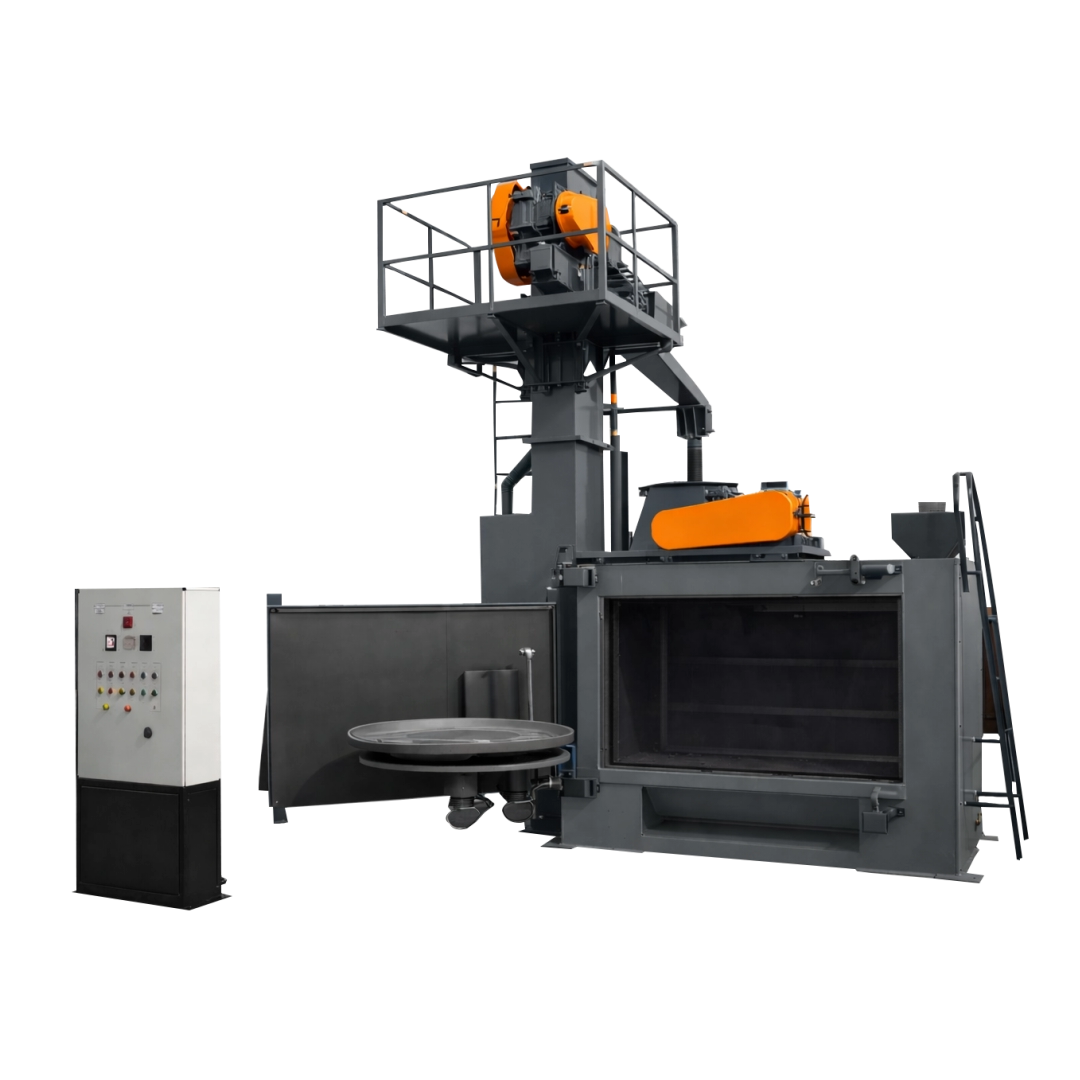

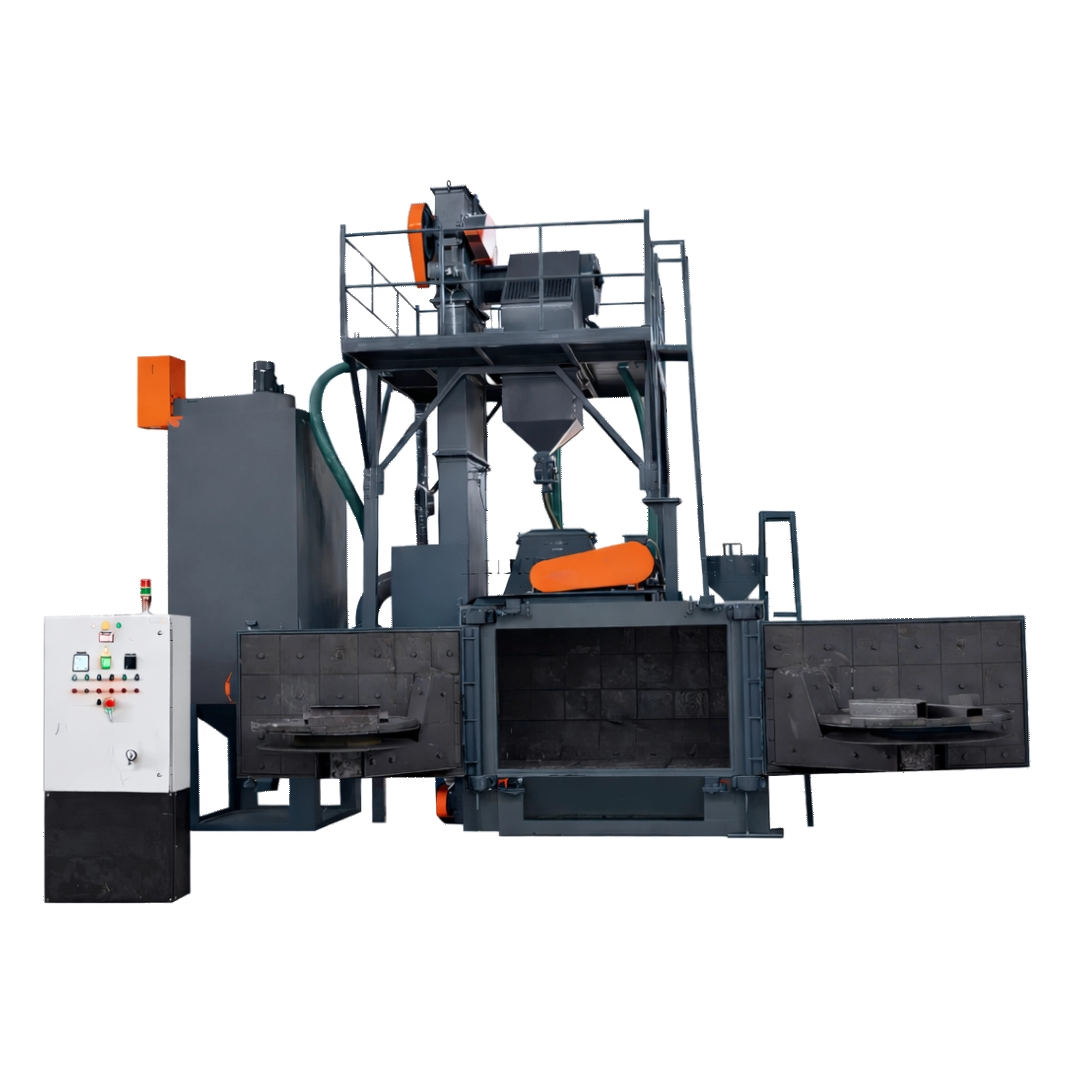

Swing Table Shot Blasting Machines
GEC Swing table type machine is designed for a wide range of applications, including larger-sized, medium, or heavy-weight castings, forgings, heat-treated workpieces, and welded structures.
Workpieces

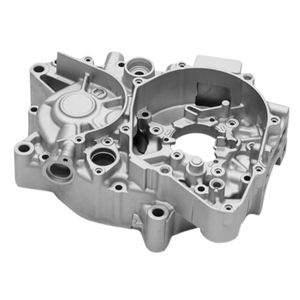

Die Casting Aluminum

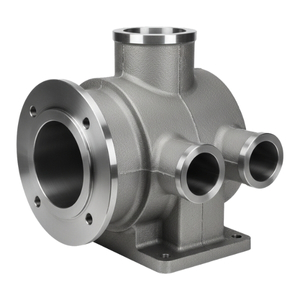

Casting

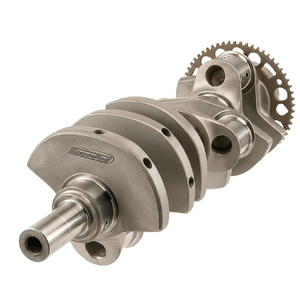

Forging

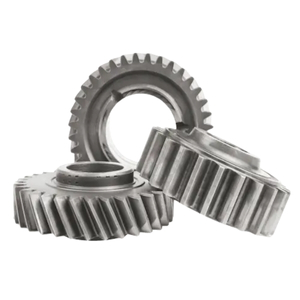

zinc & alloy steel components
Applications
- Sand & scale removal from castings
- Rust & weld slag removal
- Surface preparation before painting / coating
- Uniform surface cleaning of non-tumbling parts
- Shot peening for improved surface strength
About
GEC Swing table type machine is designed for a wide range of applications, including larger-sized, medium, or heavy-weight castings, forgings, heat-treated workpieces, and welded structures. It is suitable for cleaning various parts such as transmission housings, engine blocks, heads, wheels, and crankshafts. Our machines are ideal for batch production, accommodating a mix of large and small items, making them perfect for forgings, castings, and fabricated items.
We offer a wide range of door-mounted swing table-type shot blasting machines, ranging from 30" to 96" in diameter. These machines are available in different capacities, from 350 kilograms to 4500 kilograms, catering to the needs of small, medium, and large-scale foundries, heavy machinery manufacturers, and various industries.
Technical Specification
|
S.No |
Particulars |
AST-900 |
AST-1200 |
AST-1500 |
AST- 1800 |
AST-2400 |
|---|---|---|---|---|---|---|
| 1. |
Size of Blast Wheel |
12.5" X 2.5" |
19.5" X 2.5" | 19.5" × 2.5" | 19.5" × 2.5" | 19.5" × 2.5" |
|
2. |
No. of Blast Wheel |
1 |
1 |
1 |
1 |
2 |
|
3. |
Power of Blast Wheel | 10 H.P. | 15 H.P. | 20 H.P. | 25 H.P. | 20 H.P. |
|
4. |
No. of Swing Table (as per demand) | One / Two | One / Two | One / Two | One / Two | One / Two |
|
|
Diameter of Swing Table | 900mm (36") | 1200mm (48") | 1500 mm (60") | 1800 mm (72") | 2400 mm (96") |
| 6. | Maximum Load on Table | 400 Kg | 750 Kg | 1200 Kg | 2500 Kg | 4500 Kg |
| 7. | Loading Height (mm) | 1000 | 950 | 950 | 950 | 1200 |
|
8. |
Maximum Job Height (mm) | 500 | 600 |
700 |
1000 |
1060 |
|
|
Type of Dust Collector (as per demand) | Pulse JET | Pulse JET | Pulse JET | Pulse JET | Pulse JET |
| 10. | Total Required Power (H.P.) |
16 |
23 |
28 |
36 |
56 |
|
11. |
Height of the Machine | 4100mm |
4300mm |
4500mm | 5500mm | 5750mm |
|
12. |
Requirement of the Pit | No | No | No | No | No |
Note: We also customize the design & manufacture the machine as per customer requirements

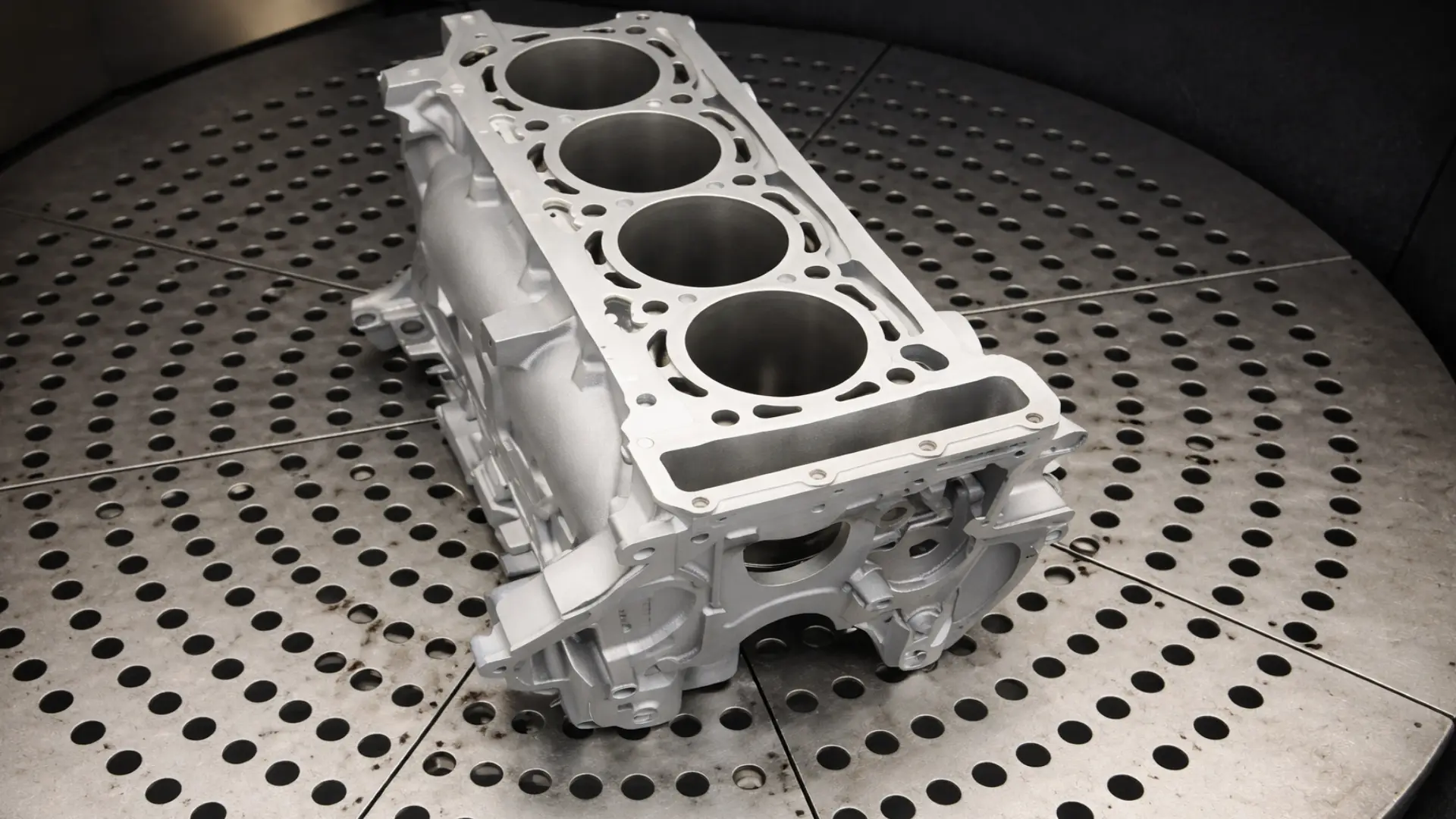

Product Before After

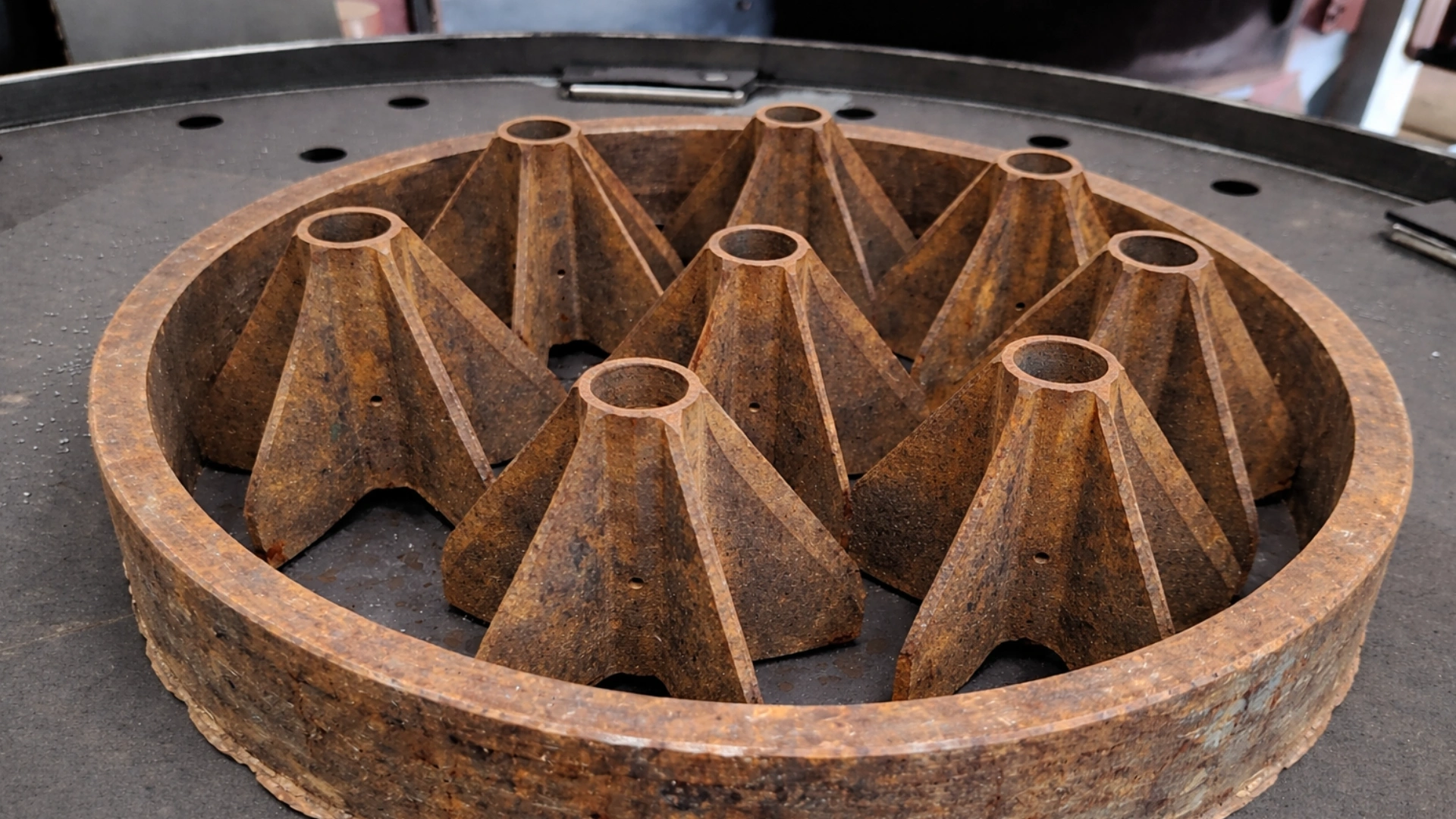

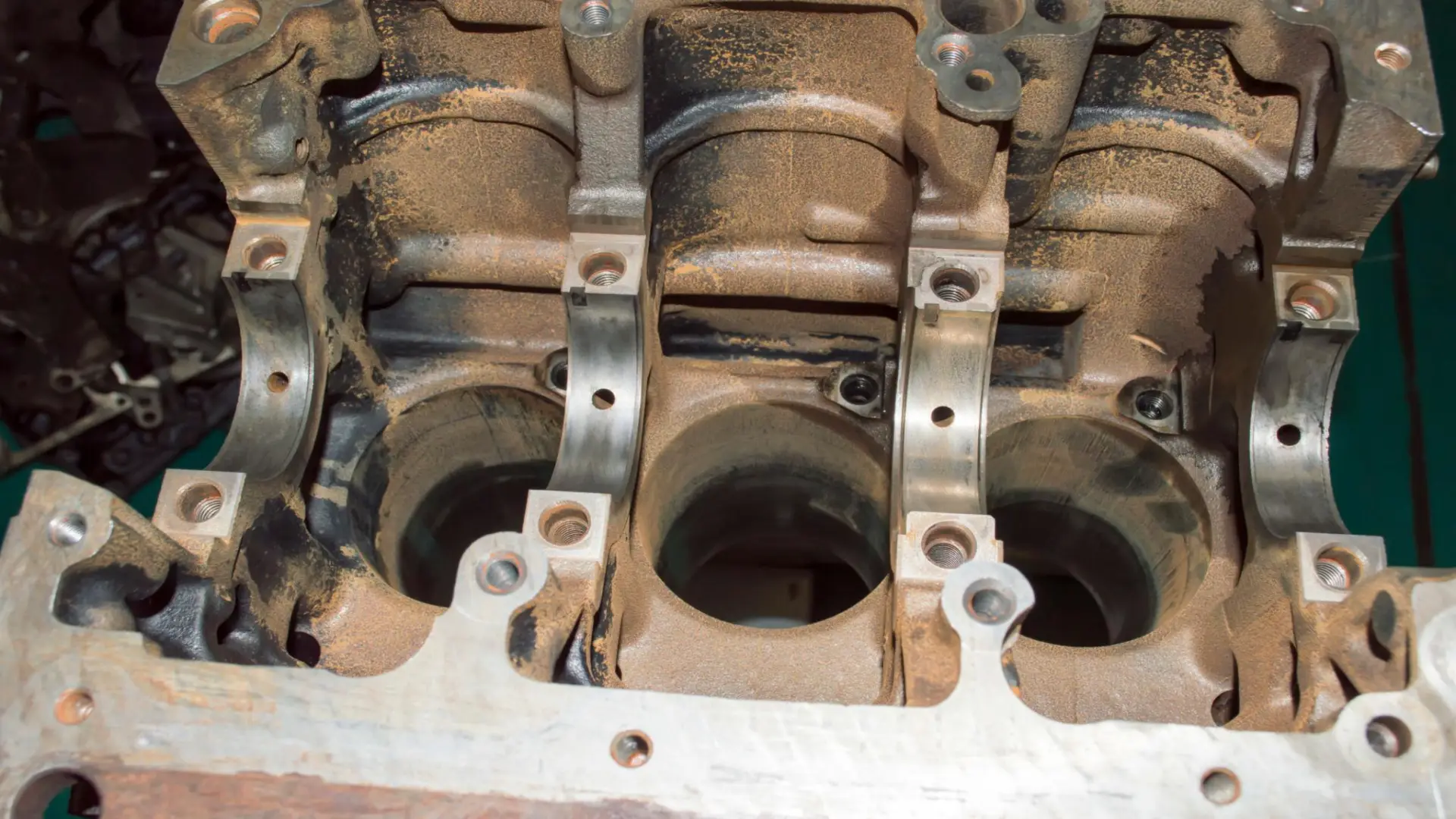

Before
