Roller Conveyor Structural Steel Shot Blasting Machine
Roller conveyor shot blasting is a surface treatment process where workpieces are conveyed on a roller conveyor system through a blast chamber.
Workpieces

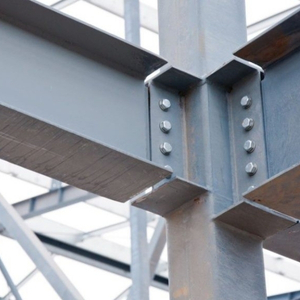

PEB Columns & Beams
Angles, Channels & Joists

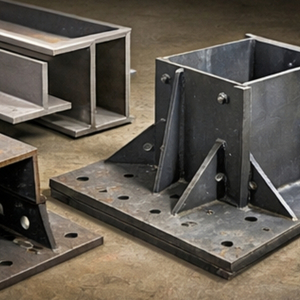

Plates & Fabricated Structures

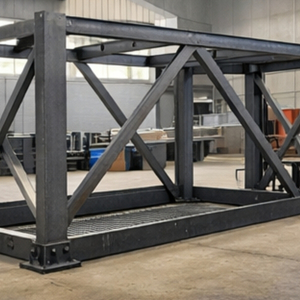

Welded Frames & Trusses
Applications
- Structural steel ki surface cleaning & descaling
- Mill scale, rust & welding slag removal
- Painting / primer / galvanizing se pehle surface preparation
- Fabrication ke baad uniform finish achieve karna
- Steel components ki fatigue life improve karna
About
Roller conveyor shot blasting is a surface treatment process where workpieces are conveyed on a roller conveyor system through a blast chamber. High-speed abrasive particles are propelled onto the workpiece surfaces, removing contaminants, scale, and rust, and preparing them for further processing or coating.
GEC offers a range of Airless Shot Blasting Machine Tunnel/Roller Conveyor Type for descaling mild steel plates and structural sections prior to painting. These machines are designed for large production output and surface treatment. The number of Blast Wheels varies according to the job size and required productivity.
Technical Specification
|
S. No. |
Description |
AT-150-50-4W |
AT-200-50-6W |
AT-200-100-8W |
AT-300-150-10W |
|---|---|---|---|---|---|
|
1. |
Passage Opening Width (mm) | 1500 mm | 2000 mm | 2000 mm / 2500 mm | 3000 mm |
| Height (mm) | 500 mm | 500 mm | 1000 mm / 500 mm | 1500 mm | |
|
2. |
No. of Blast Wheel |
4 |
6 |
8 |
10 |
|
3. |
Power of Blast Wheel | 15 HP | 15 HP | 15 HP | 15 HP |
|
4. |
Roller Conveyor Speed | 0.5 – 3 m/min (variable) | 0.5 – 3 m/min | 0.5 – 3 m/min | 0.5 – 3 m/min |
|
5. |
Abrasive Type | Steel Shot / Steel Grit | Steel Shot / Steel Grit | Steel Shot / Steel Grit | Steel Shot / Steel Grit |
|
6. |
Type of Dust Collector | Pulse JET | Pulse JET | Pulse JET | Pulse JET |
|
7. |
Height of the Machine | 6500mm | 6900mm | 7700mm | 8000mm |
| 8. | Roller Pitch |
900 |
900 |
900 |
900 |
|
9. |
Abrasive Media Recovery | Automatic | Automatic | Automatic | Automatic |
|
10. |
Loading Method | Continuous Through Conveyor | Continuous Through Conveyor | Continuous Through Conveyor | Continuous Through Conveyor |
|
11. |
Requirement of Pit |
No |
No |
No |
No |
Note: We also customize the design & manufacture the machine as per customer requirements
Product Before After
Before
After
Discover our Roller Conveyor Shot Blasting Machines in 360°
