8 Wheel Aluminum Profile Shot Blasting Machine
The GEC Roller Conveyor System for Aluminium Profiles is specially designed to handle long and lightweight aluminium extrusions with ease.
Workpieces

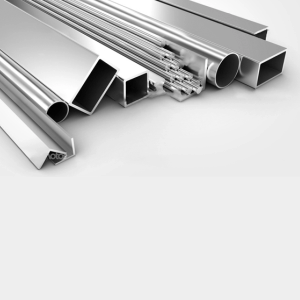

Aluminum extruded profiles

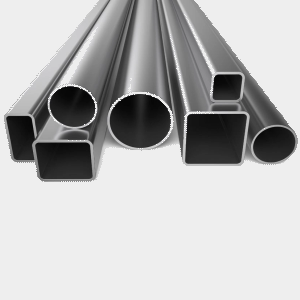

Tubes & channels

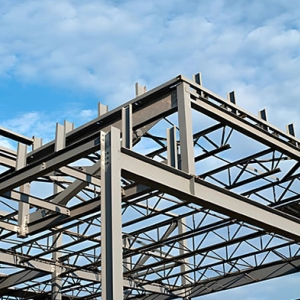

Frames & structural components
Applications
- Transporting aluminum profiles between production stages
- Feeding profiles to blasting, anodizing, or cutting stations
- Industrial assembly lines for aluminum products
- Surface finishing or coating operations
About
The GEC Roller Conveyor System for Aluminium Profiles is specially designed to handle long and lightweight aluminium extrusions with ease. It provides smooth, stable, and efficient movement, ensuring profiles remain aligned and protected during production, finishing, or surface preparation.
Built with durable rollers and a robust frame, the system minimizes friction and reduces manual handling. Its reliable design improves workflow efficiency, enhances productivity, and maintains the quality of delicate aluminium surfaces, making it an excellent choice for industrial applications.
Technical Specification
| S. No. | Description | AT-250-50-4W | AT-200-100-8W |
|---|---|---|---|
|
1. |
Opening Width |
2500 |
2000 |
|
1. |
Opening Height |
500 |
1000 |
|
3. |
No. of Blast Wheel |
4 |
8 |
|
4. |
Power of Blast Wheel | 15 HP | 15 HP |
|
5. |
Roller Conveyor Speed | 0.5 – 3 m/min (variable) | 0.5 – 3 m/min |
|
6. |
Type of Dust Collector | Pulse JET | Pulse JET |
|
7. |
Height of the Machine (mm) |
6500 |
7700 |
|
9. |
Roller Pitch (mm) |
900 |
900 |
|
9. |
Requirement of Pit |
No |
No |
Note: We also customize the design & manufacture the machine as per customer requirements
Product Before After

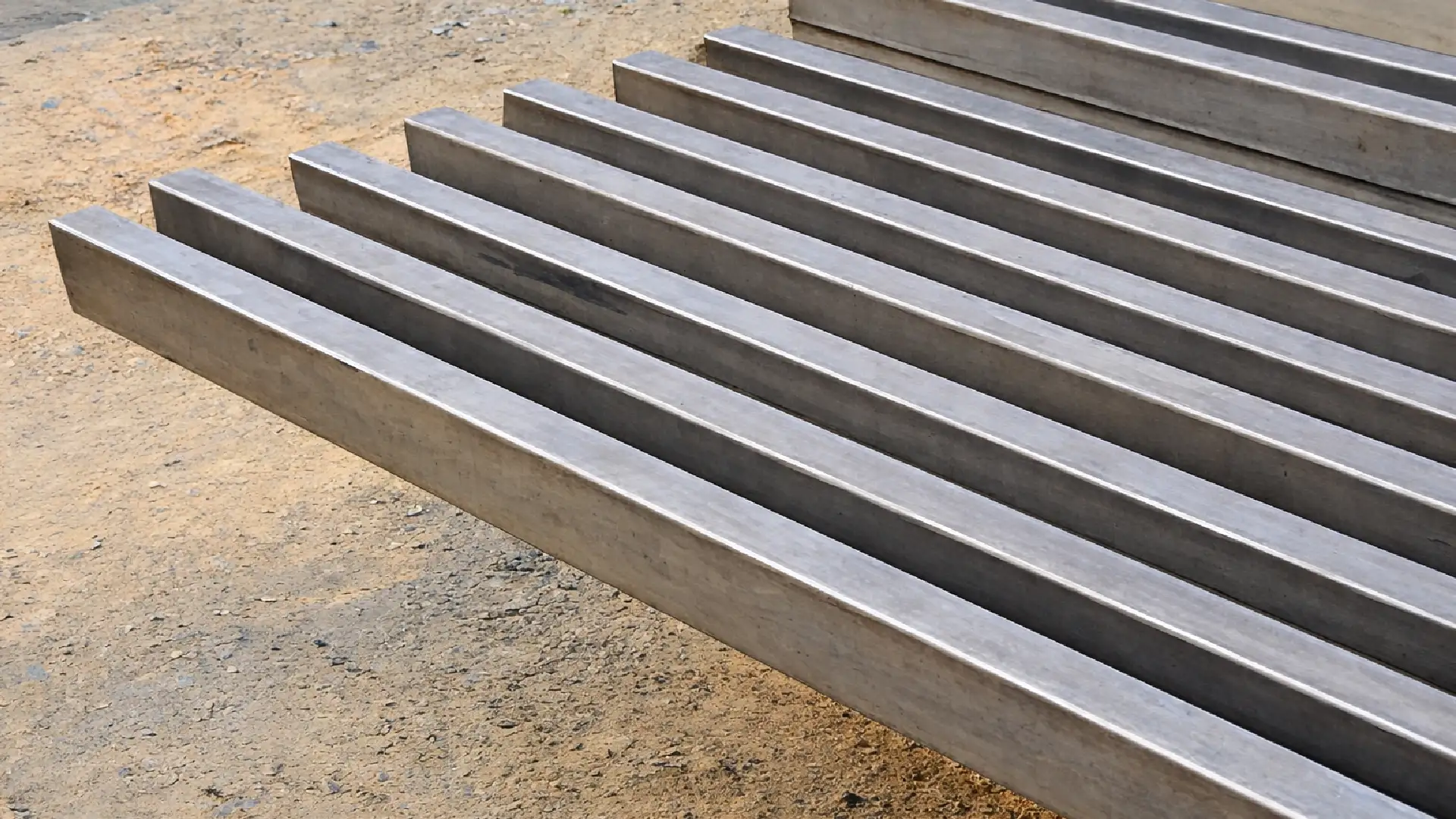

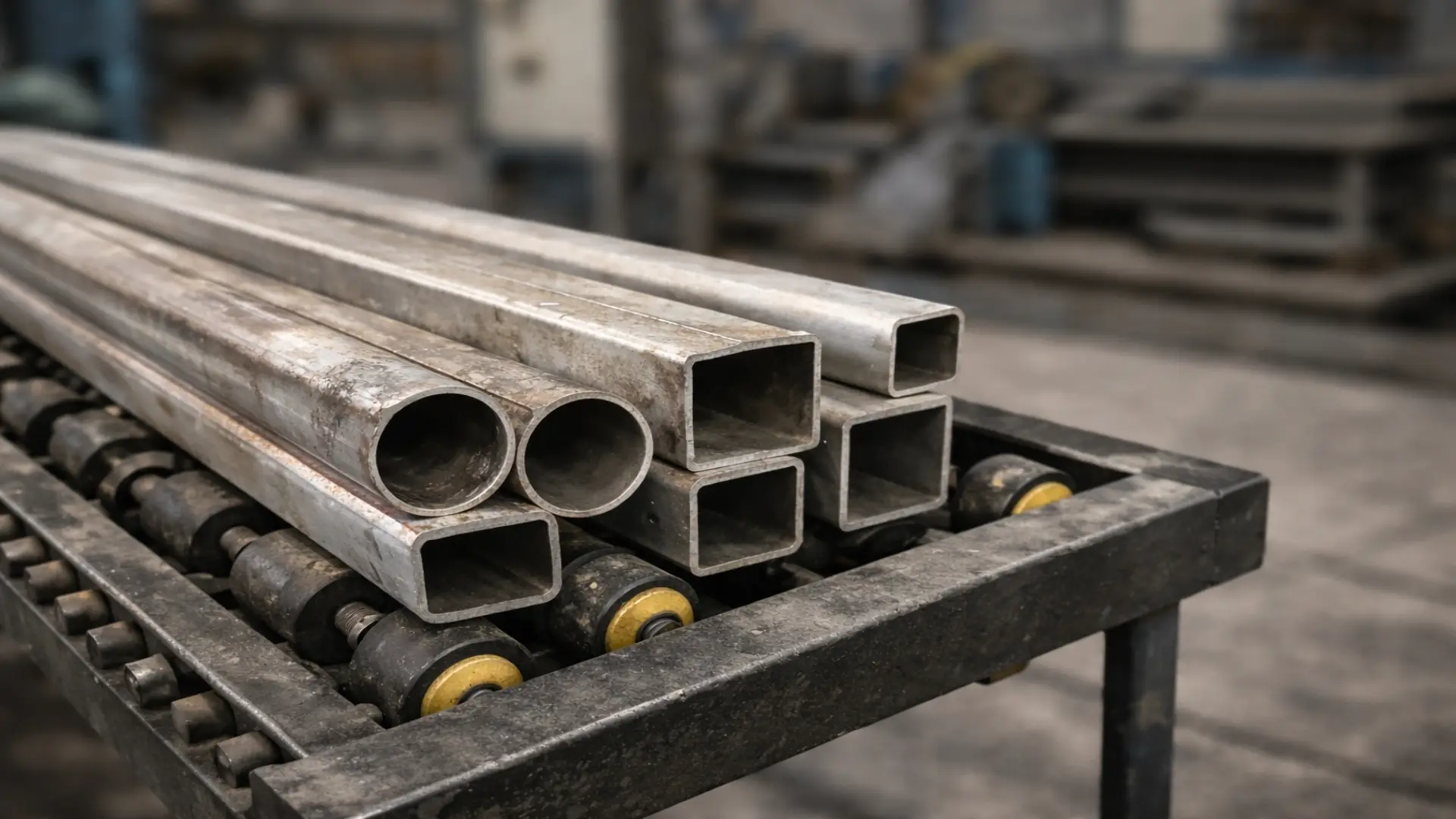

Before

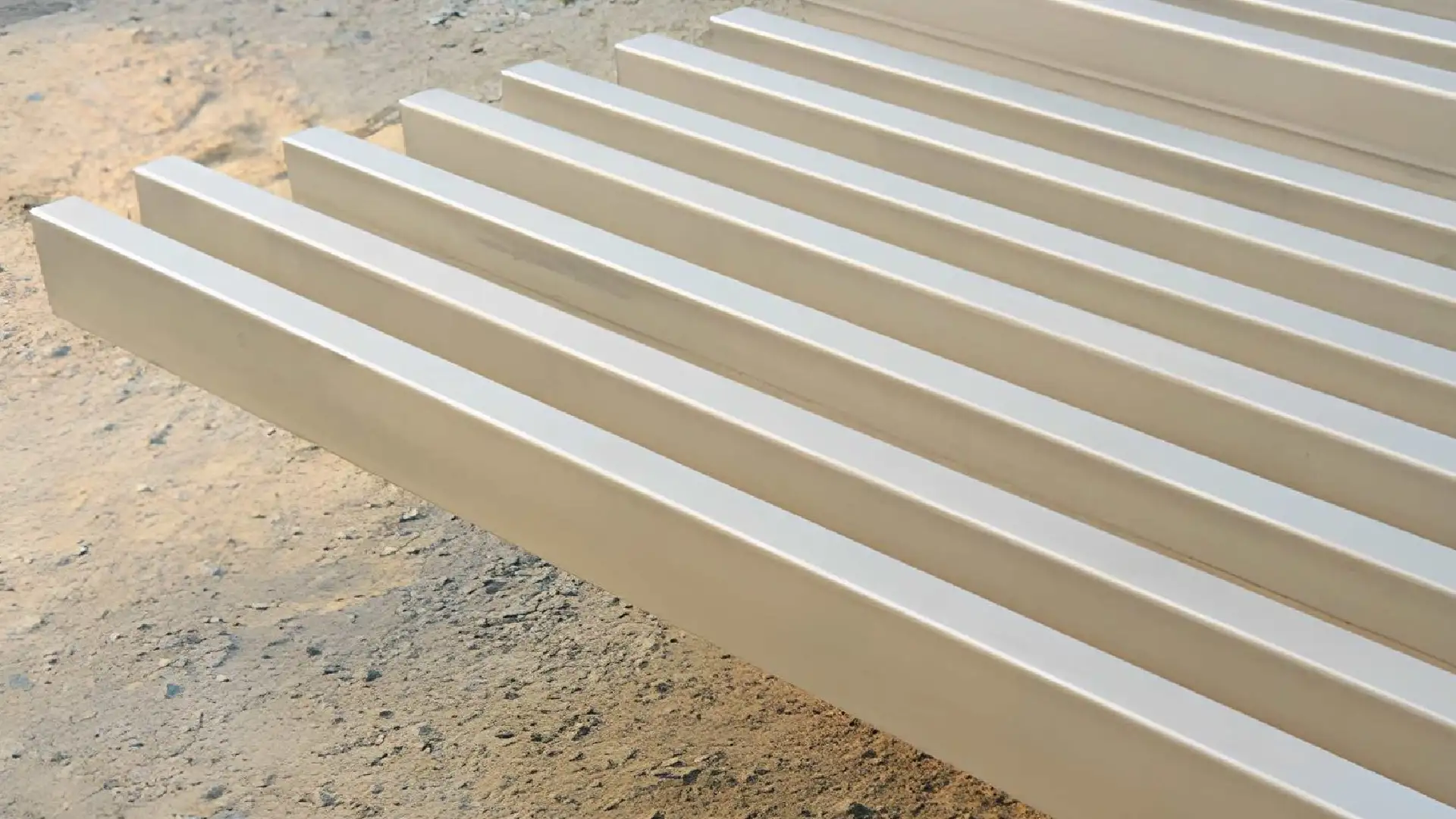

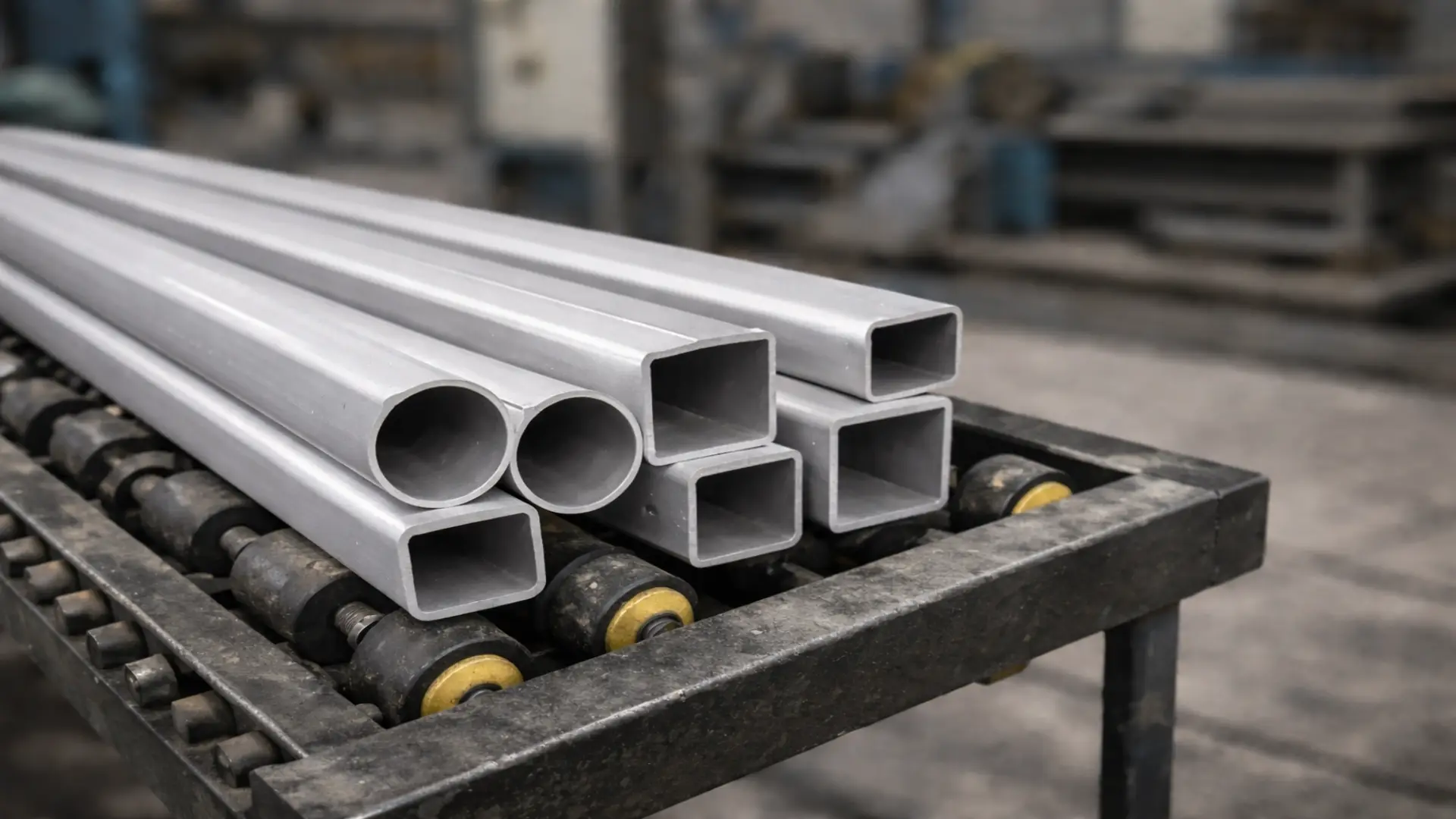

After
Discover our Roller Conveyor for Aluminium Profile in 360°
