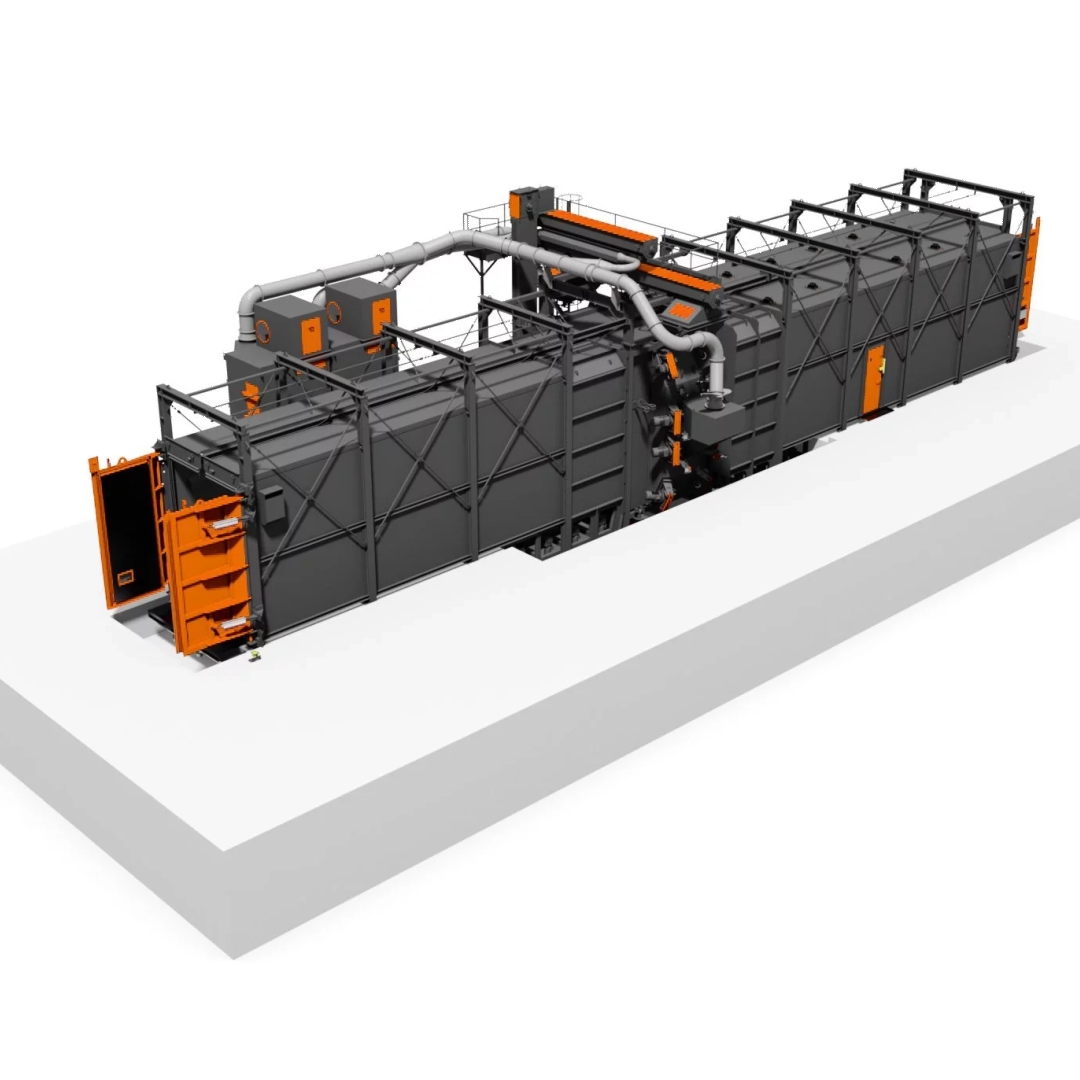

Railway Shot Blasting Equipment
Railway Shot Blasting Equipment is specially designed to clean, descale, and prepare railway components such as bogies, wheel sets, frames, and other large steel structures.
Workpieces

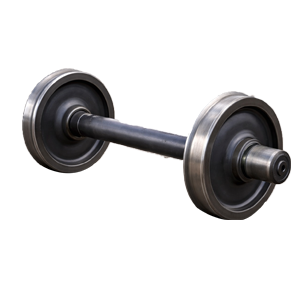

Railway axles and wheels

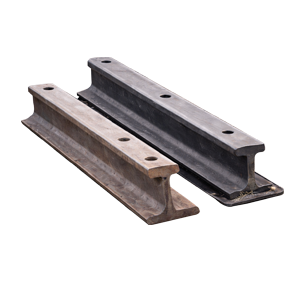

Rail Tracks and Sections
Rail Tracks and Sections
Rail Tracks and Sections
Applications
- Removal of rust, mill scale, grease, old paint
- Surface preparation before painting/coating
- Improving paint adhesion & coating life
- Inducing compressive residual stress (fatigue life ↑)
- Cleaning before inspection, welding, or assembly
- Uniform surface finish for long-term corrosion resistance
About
Railway Shot Blasting Equipment is specially designed to clean, descale, and prepare railway components such as bogies, wheel sets, frames, and other large steel structures. Using high-speed abrasive blasting, the equipment removes rust, paint, grease, and surface contaminants, ensuring a uniform and clean finish suitable for coating, painting, or inspection. This process not only improves appearance but also enhances the durability and safety of railway parts.
Built with heavy-duty construction and advanced blasting technology, these machines deliver consistent, high-quality results for large and complex railway components. They reduce manual labor, increase efficiency, and provide a dust-controlled environment for safe operation. Ideal for railway workshops, maintenance depots, and manufacturing units, this equipment ensures reliability, productivity, and long service life.
Technical Specification
|
S. No. |
Model / Equipment Description |
RSB – 30M (Railway Coach) |
RSB – BF (Bogie Frame / Bolster) |
RSB – MS (Metro Seat / Container) |
RSP – SP (Spring / Gear Peening) |
|---|---|---|---|---|---|
|
1. |
Machine Type |
Airless Roller Conveyor Type |
Spinner Hanger / Monorail Type |
Monorail / Conveyor Type |
Shot Peening Type (Rotary Table / Spinner Hanger) |
|
2. |
No. of Blast Wheels |
12 Wheels |
8 Wheels |
6 Wheels |
2 Wheels |
|
3. |
Power of Blast Wheel |
15 – 20 HP |
15 HP |
10 – 15 HP |
10 – 15 HP |
|
4. |
Work Handling System |
Roller Conveyor (Continuous Type) |
Monorail / Hanger Rotation |
Monorail / Rotary Conveyor |
Rotary Table / Spinner Hanger |
|
5. |
Type of Dust Collector |
Pulse JET Type |
Pulse JET Type |
Pulse JET Type |
Pulse JET Type |
|
6. |
Workpiece Loading |
Automatic / Semi-Automatic |
Manual / Semi-Automatic |
Manual / Semi-Automatic |
Manual / Semi-Automatic |
|
7. |
Requirement of Pit |
Optional / Shallow Pit |
No / Optional |
No |
No / Optional |
|
8. |
Application |
Railway Coach |
Bogie Frames / Bogie Bolsters |
Metro Seats / Container Rooms |
|
Product Before After

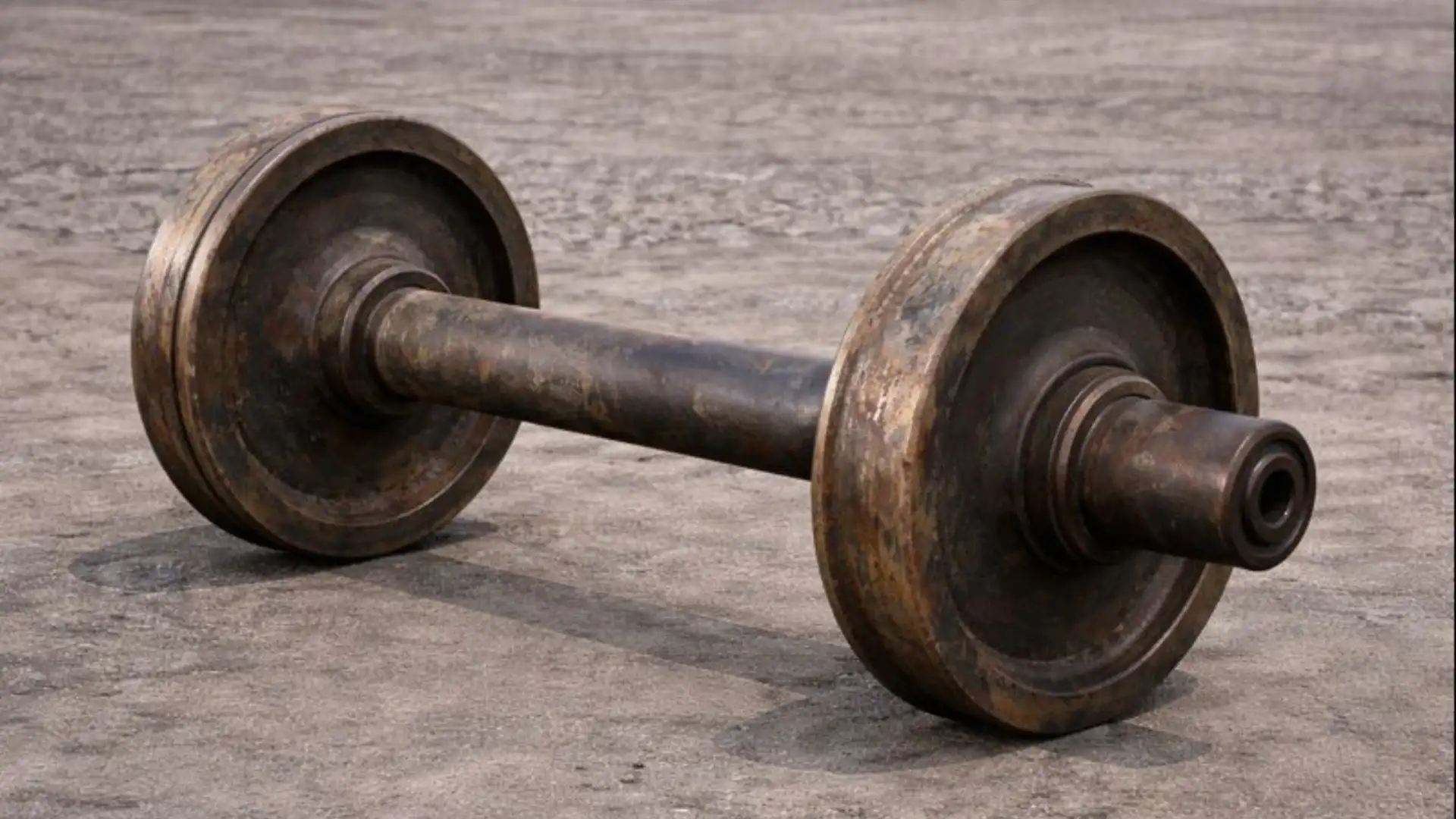

Before

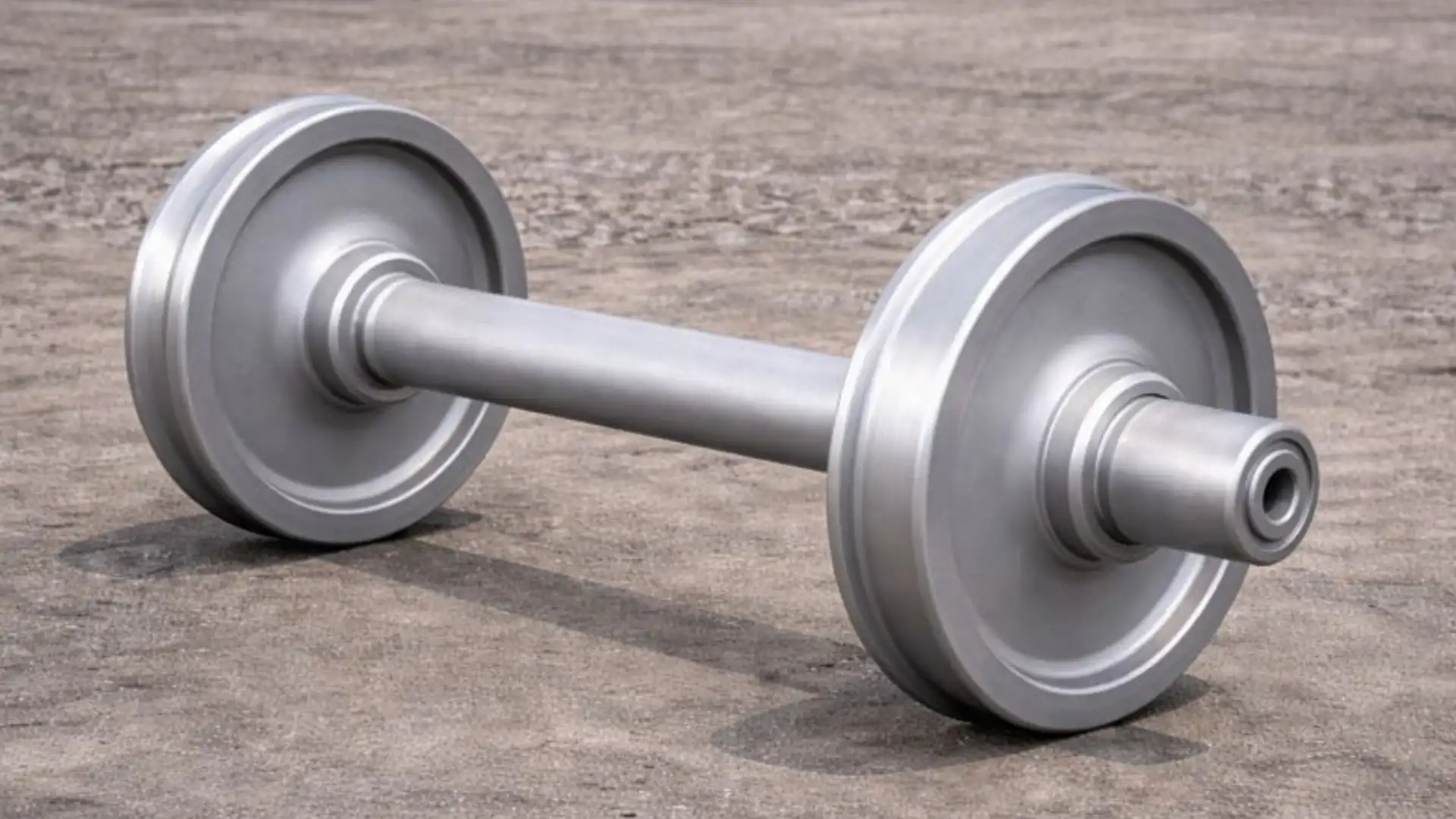

After
Discover our Railway Shot Blasting Equipment in 360°
