Belt Conveyor Paver Block Shot Blasting Machine With 600-900 MM Belt Width

Paver Block Shot Blasting Machines are designed to texture and finish concrete paver blocks, tiles, and slabs with precision.

Workpieces

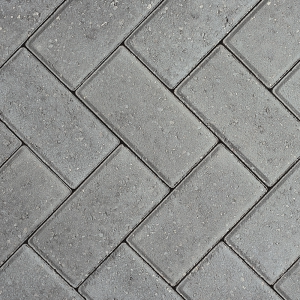

Concrete Paver Blocks

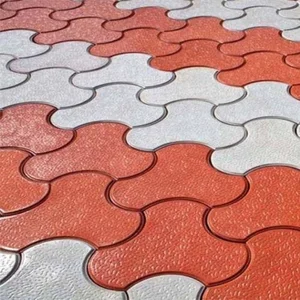

Interlocking Paver Blocks

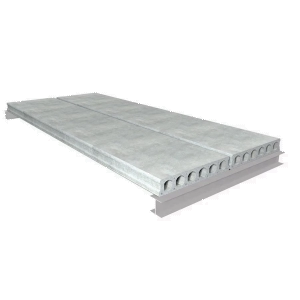

RCC Slabs & Precast Concrete Panels

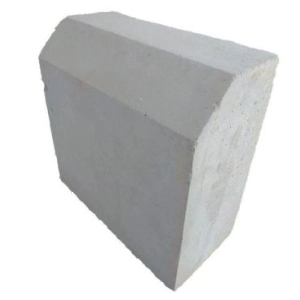

Kerbstones & Chequered Tiles

Applications

About

Paver Block Shot Blasting Machines are designed to texture and finish concrete paver blocks, tiles, and slabs with precision. By propelling abrasive media at controlled speeds, the machine creates a uniform, decorative, and non-slip surface, enhancing both the aesthetic appeal and functional performance of paver blocks. This process also improves surface durability, making the blocks more resistant to wear and weathering.

Built with robust construction and advanced technology, these machines ensure consistent results with minimal manual effort. They are widely used in the construction and landscaping industries to produce high-quality pavers for pathways, driveways, and outdoor spaces. Offering efficiency, reliability, and excellent finishing, Paver Block Shot Blasting Machines are an ideal choice for manufacturers seeking premium-quality surface treatment.

Technical Specification

S.No

Model / Equipment Description

BCPB-600-1W

BCPB-800-2W

1.

Size of Blast Wheel

600

800

2.

No. of Blast Wheels

1 Wheel

2 Wheel

3.

Power of Blast Wheel (HP)

15 HP

15 HP

4.

Belt Speed (m/min, adjustable)

0.5 – 3

0.5 – 3

5.

Type of Dust Collector

Pulse JET

Pulse JET

6.

Machine Height (mm)

3500

4000

7.

Workpiece Size Capacity (Approx.)

Up to 600 mm Width

Up to 800 mm Width

8.

Workpiece Loading

Manual / Semi-Automatic

Manual / Semi-Automatic

9.

Requirement of Pit

No / Optional

No / Optional

10.

Application

Paver Blocks / Concrete Blocks

Paver Blocks / Concrete Blocks

Note: We also customize the design & manufacture the machine as per customer requirements

Product Before After

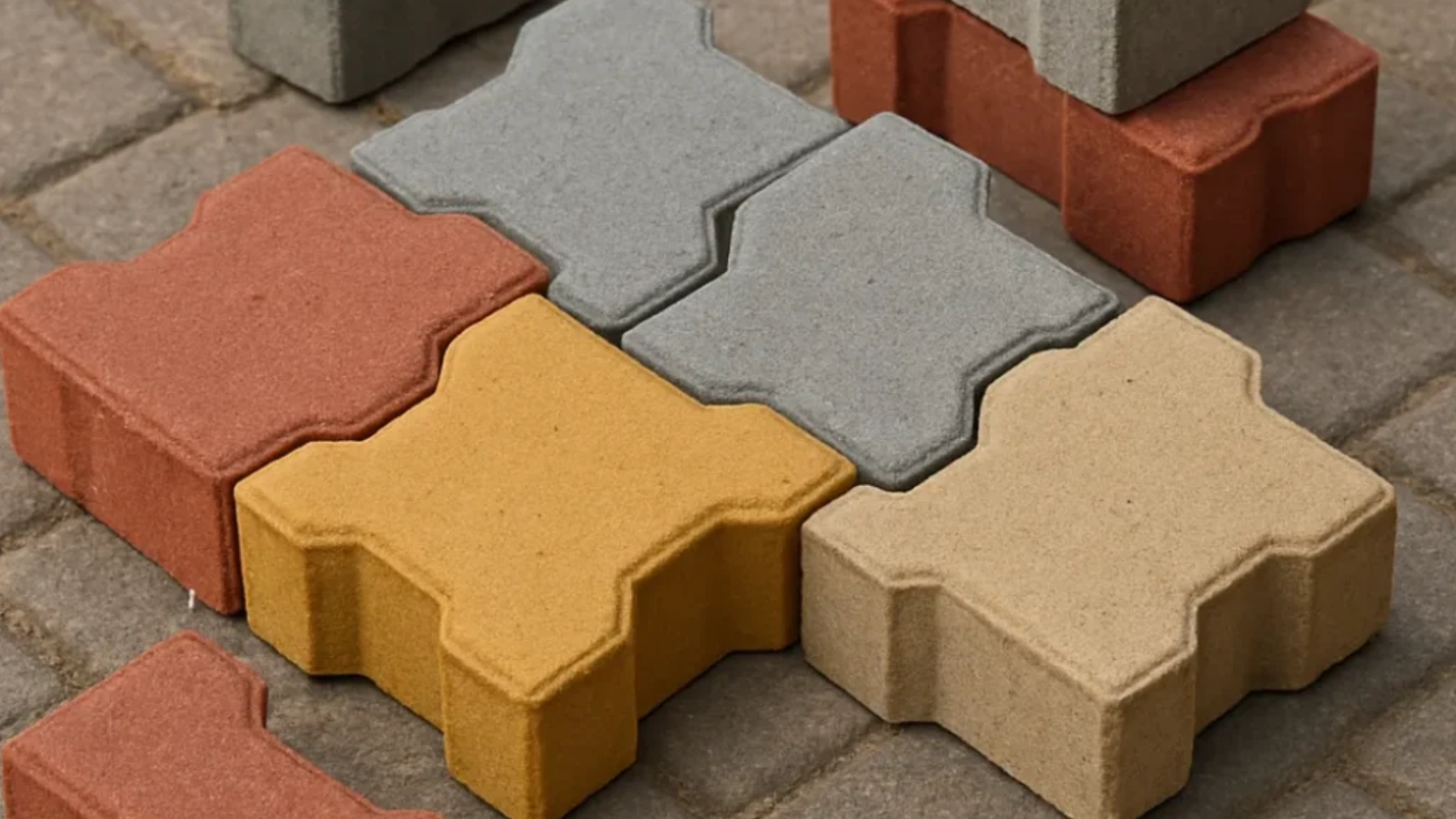

Before

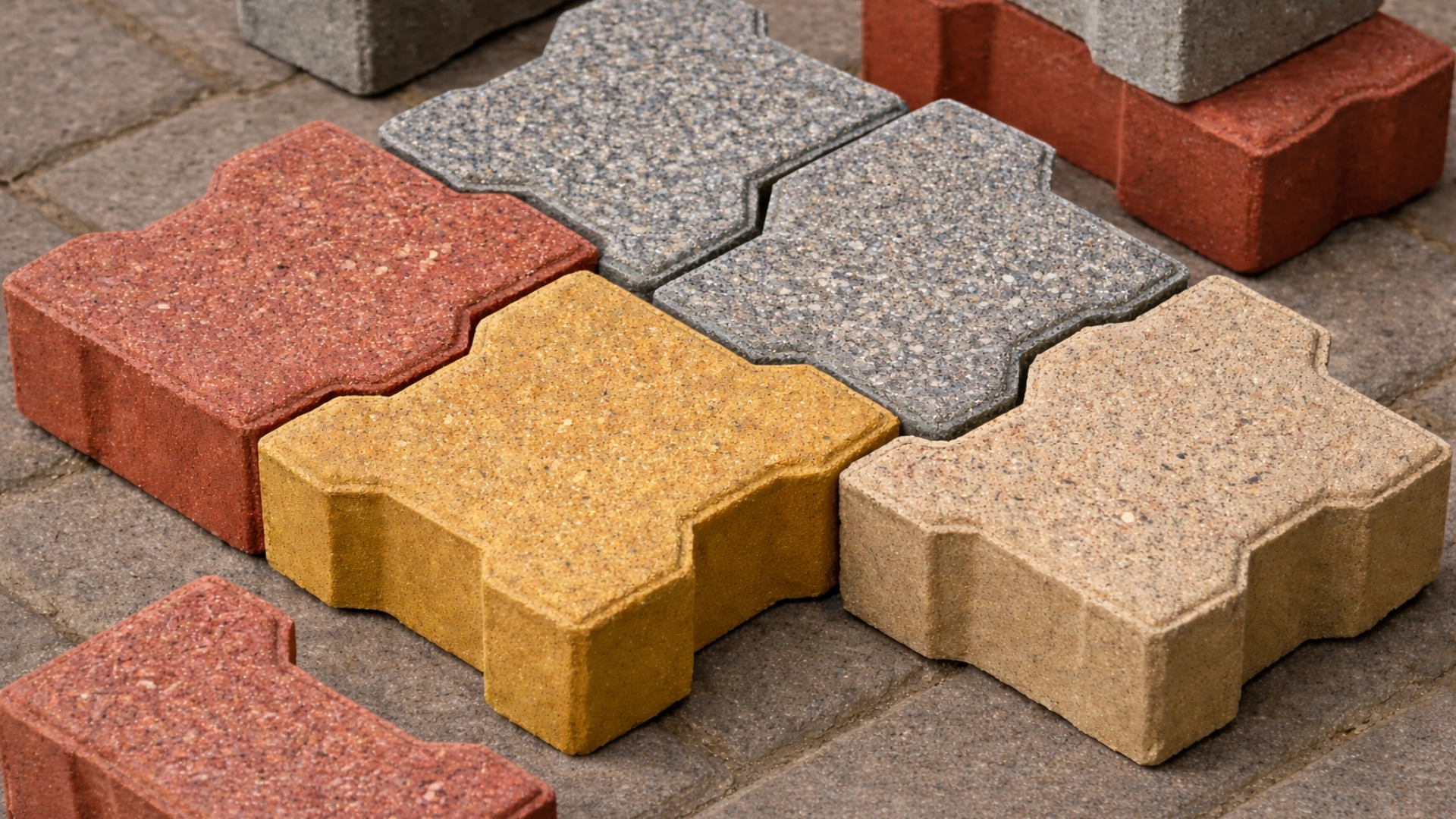

After

Discover our Paver Block Shot Blasting Machine in 360°
