Paver Block Shot Blasting Machine
Paver Block Shot Blasting Machines are designed to texture and finish concrete paver blocks, tiles, and slabs with precision.
Workpieces

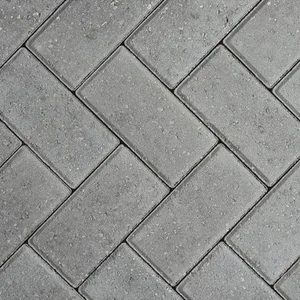

Concrete Paver Blocks

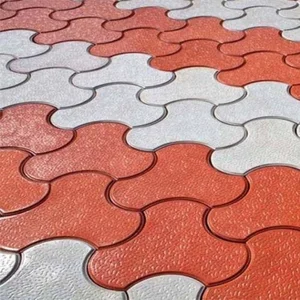

Interlocking Paver Blocks

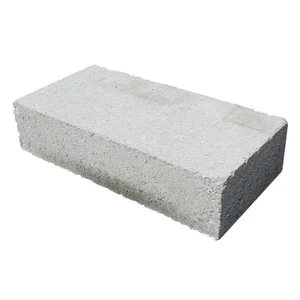

Fly Ash Paver Blocks

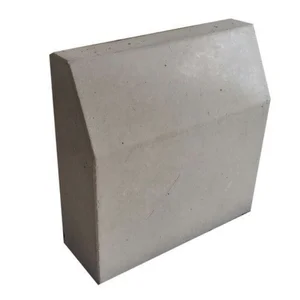

Kerb Stones & Concrete Tiles

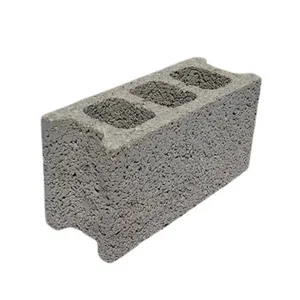

Precast Concrete Blocks
Applications
- Uniform anti-skid surface finish
- Removal of laitance, dust & loose particles
- Enhanced aggregate exposure
- Improved adhesion before sealing or coloring
- Better appearance & long-term durability
About
Paver Block Shot Blasting Machines are designed to texture and finish concrete paver blocks, tiles, and slabs with precision. By propelling abrasive media at controlled speeds, the machine creates a uniform, decorative, and non-slip surface, enhancing both the aesthetic appeal and functional performance of paver blocks. This process also improves surface durability, making the blocks more resistant to wear and weathering.
Built with robust construction and advanced technology, these machines ensure consistent results with minimal manual effort. They are widely used in the construction and landscaping industries to produce high-quality pavers for pathways, driveways, and outdoor spaces. Offering efficiency, reliability, and excellent finishing, Paver Block Shot Blasting Machines are an ideal choice for manufacturers seeking premium-quality surface treatment.
Technical Specification
|
S.No |
Model / Equipment Description |
BCPB-600-1W |
BCPB-1200-2W |
|---|---|---|---|
|
1. |
Size of Blast Wheel |
700 |
1250 |
|
2. |
No. of Blast Wheels |
1 Wheel |
2 Wheel |
|
3. |
Power of Blast Wheel (HP) |
15 HP |
15 HP |
|
4. |
Belt Speed (m/min, adjustable) |
0.5 – 3 |
0.5 – 3 |
|
5. |
Type of Dust Collector |
Pulse JET |
Pulse JET |
|
6. |
Machine Height (mm) |
3500 |
5850 |
|
7. |
Workpiece Size Capacity (Approx.) |
Up to 250 mm Width |
Up to 250 mm Width |
|
8. |
Workpiece Loading |
Manual / Semi-Automatic |
Manual / Semi-Automatic |
|
9. |
Requirement of Pit |
No / Optional |
No / Optional |
|
10. |
Application |
Paver Blocks / Concrete Blocks |
Paver Blocks / Concrete Blocks |
Note: We also customize the design & manufacture the machine as per customer requirements

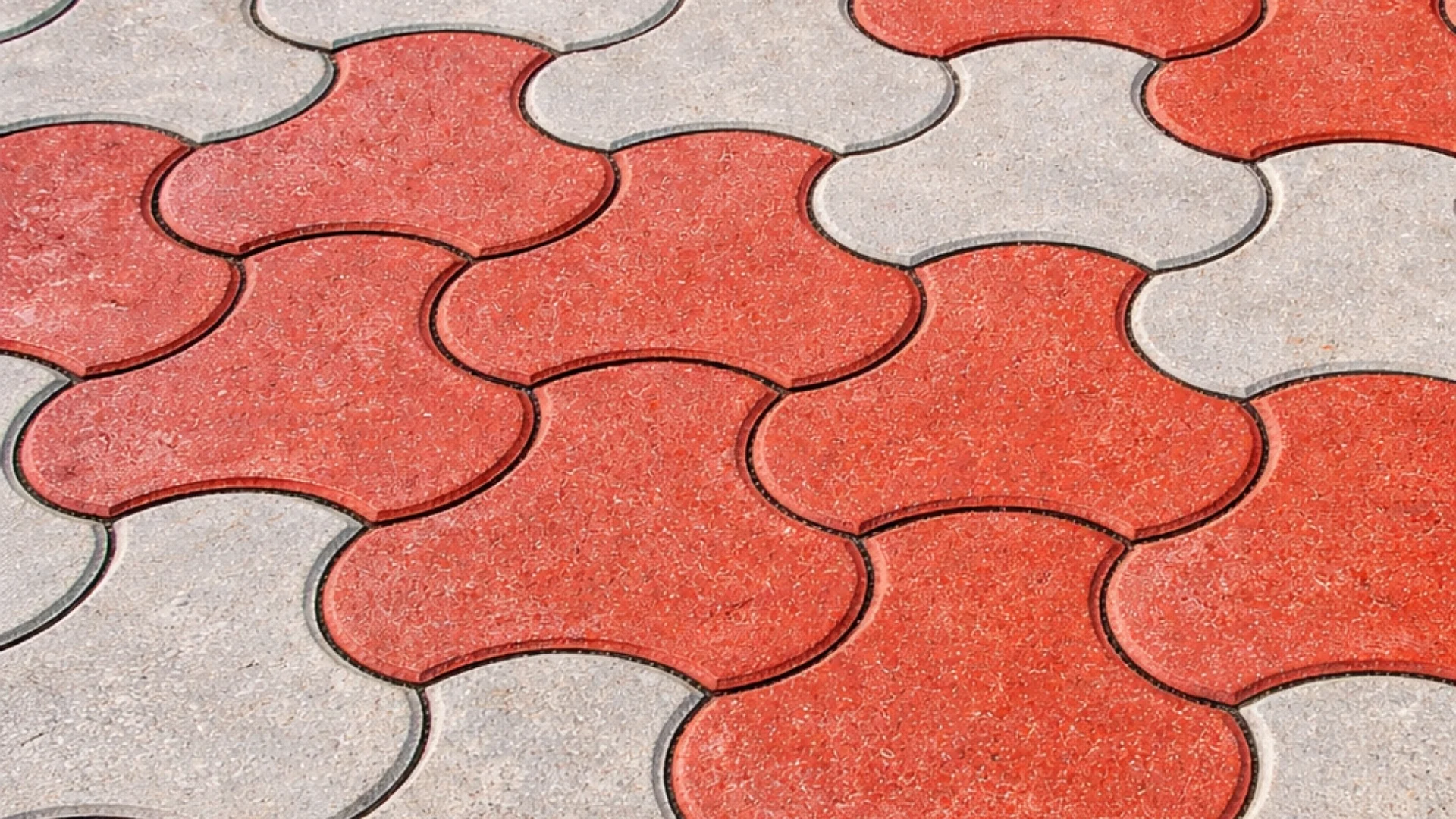

Product Before After

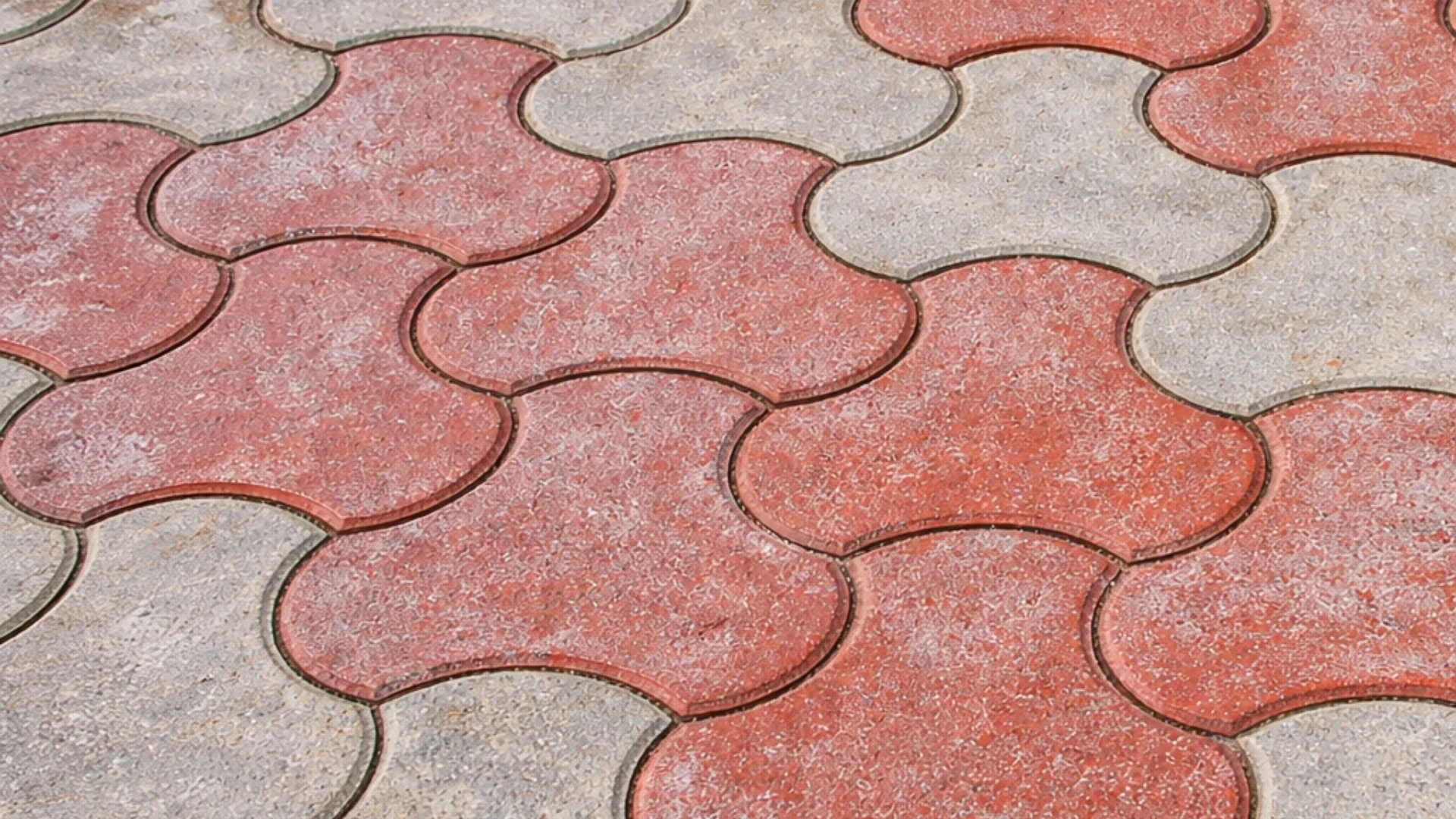

Before
