Door Hook Type Shot Blasting Machines

Paint Spray Booths are specially designed and developed to provide efficient, flexible & clean spray painting.

Workpieces

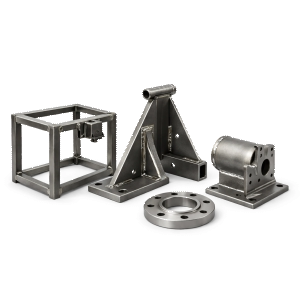

Small to medium welded assemblies

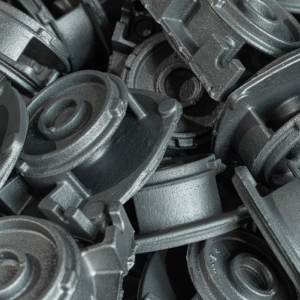

CI castings

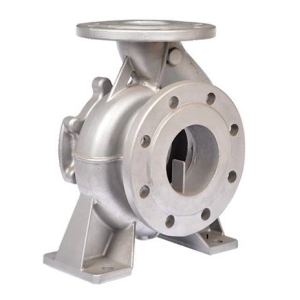

Valves & pump parts

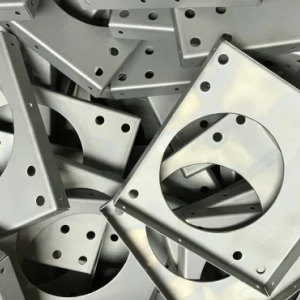

Flanges, brackets & housings

Flanges, brackets & housings

Applications

  • Rust & scale removal
  • Cleaning before painting / powder coating
  • Weld slag & surface impurity removal
  • Surface preparation for coating
  • Uniform surface finishing

About

Paint Spray Booths are specially designed and developed to provide efficient, flexible & clean spray painting. The Hazardous Paints Fume Particles are sucked by the vacuum/airflow created by the centrifugal / axial fans. Paint spray Booth is suitable for conventional airless and electrostatic painting and provides better painting results.

Technical Specification

Model No. of Turbines

Component Dimension
Work Piece Dimensions
Depending On The Work
Piece Geometry Up To

Dimensions of
Blasting Chamber

 Bucket Elevator
A

C

 B (Width) L (Length) H (Height)

With Air Separator
ASH-2 2 Ø600 1000 1600 1950 4200 5300
ASH-7 2 Ø750 1000 1700 2050 5000 5400
ASH-8

2

 Ø1000 1400 1950 2700 5050 5700

Note: We also customize the design & manufacture the machine as per customer requirements

Product Before After

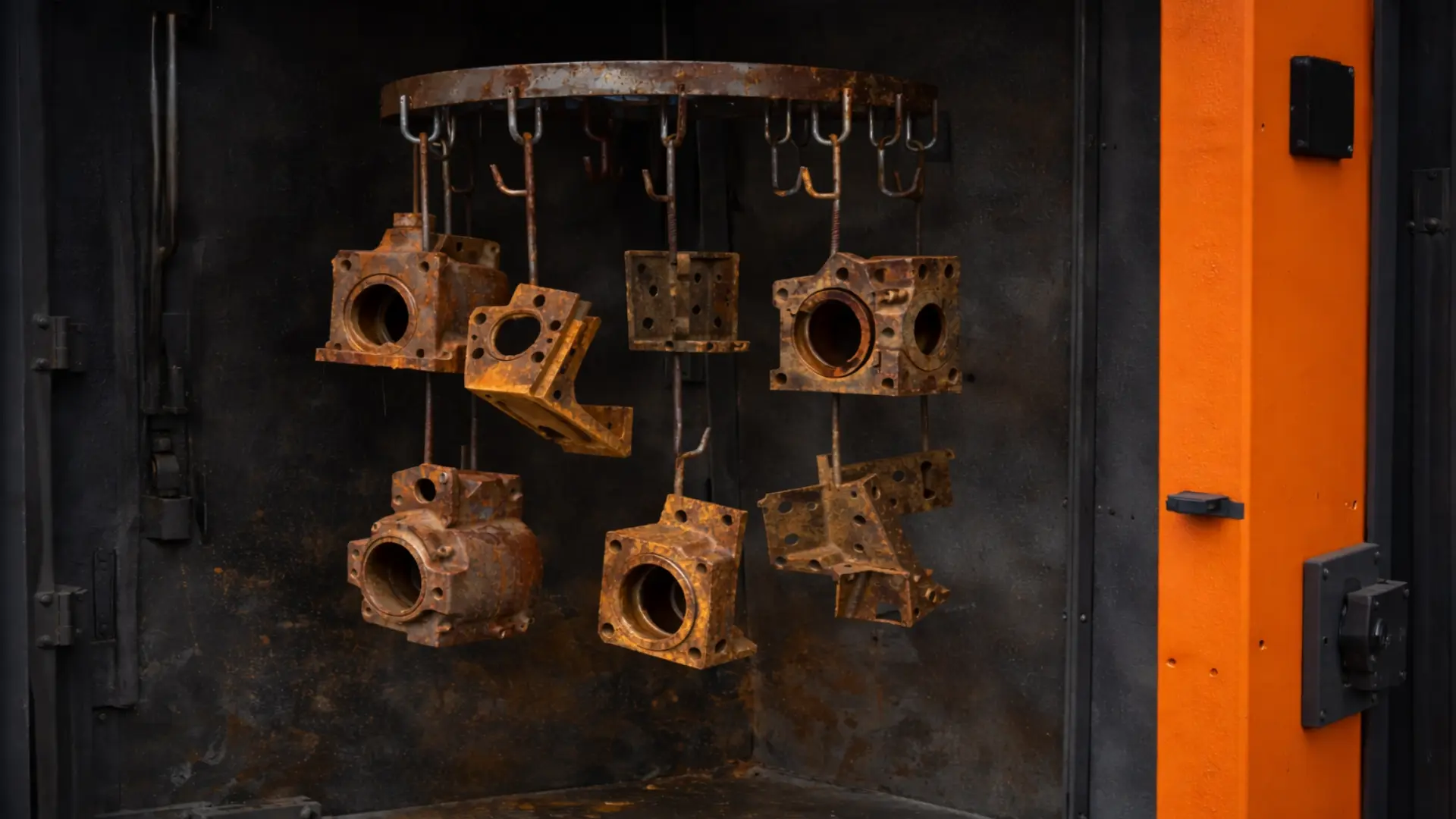

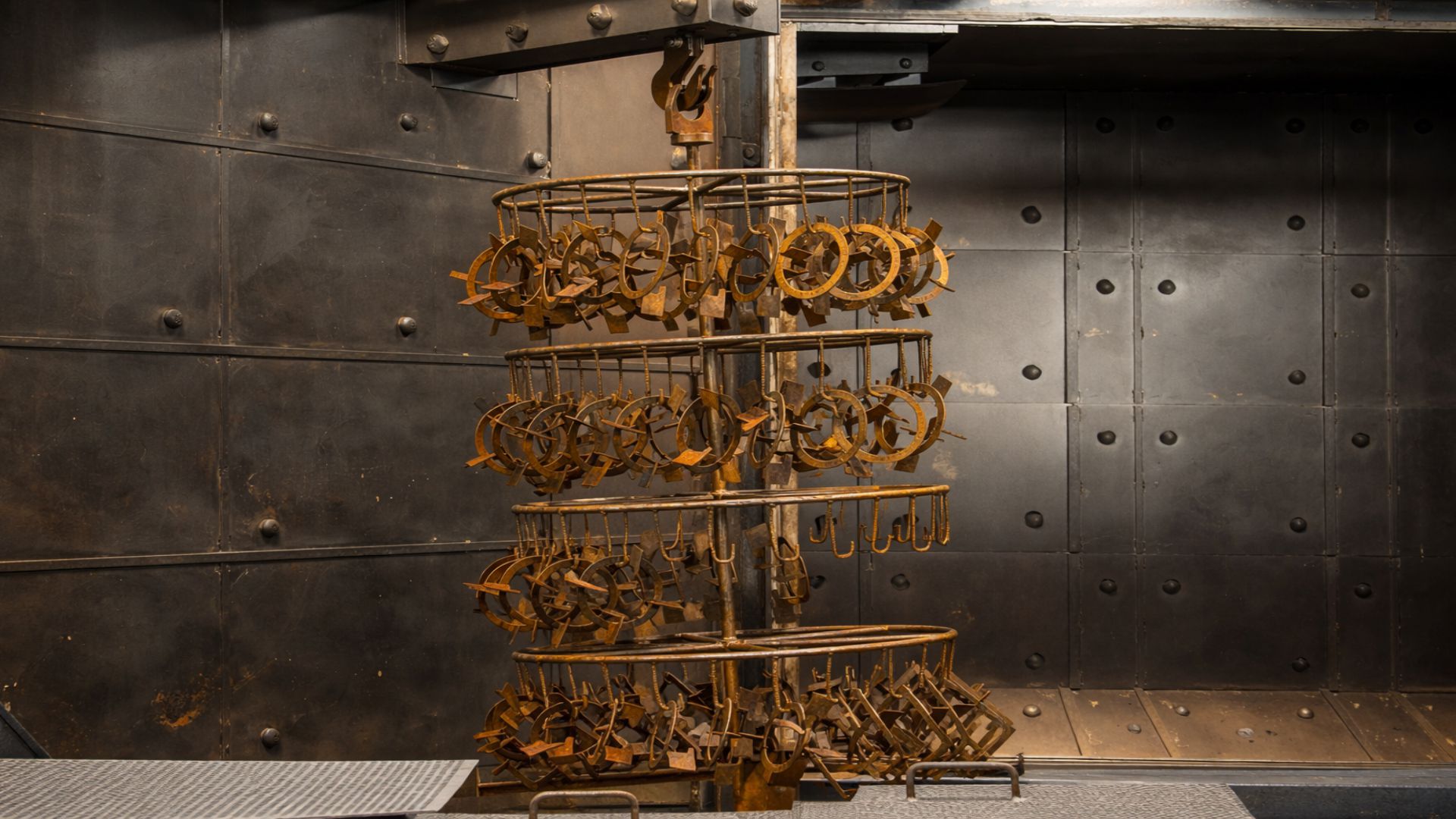

Before

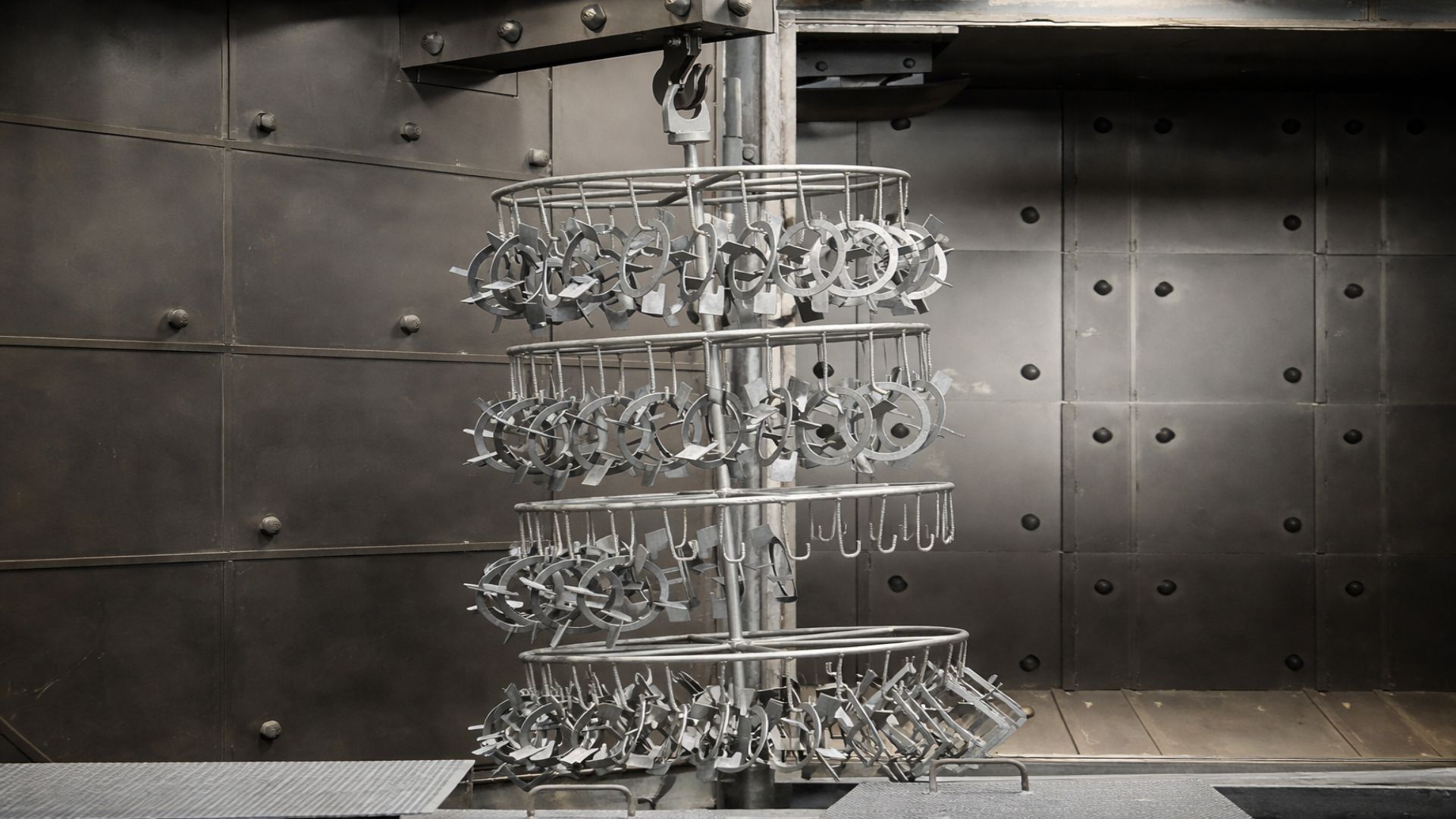

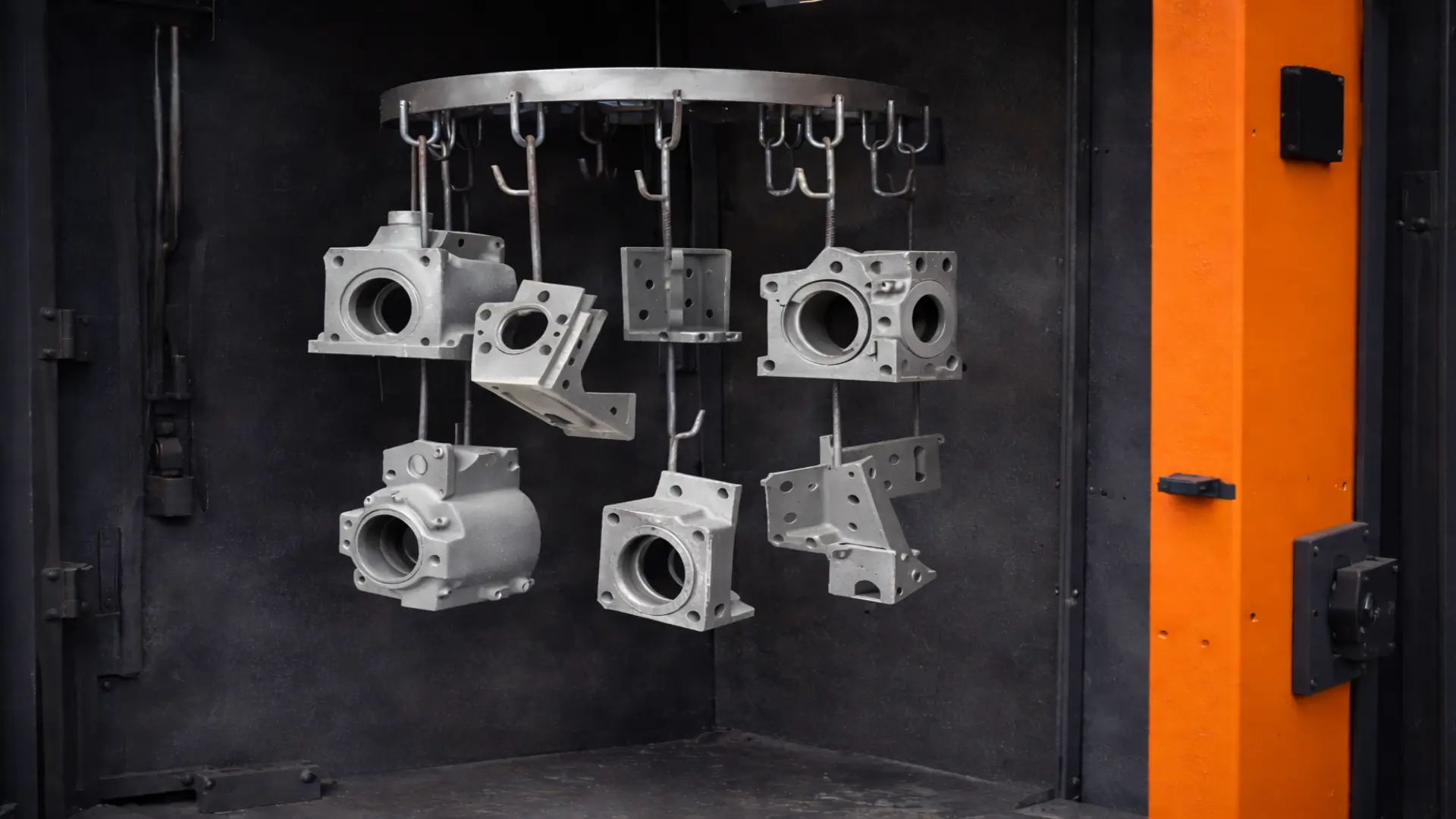

After

Discover our Paint Spray Booth in 360°
