Stones and Ceramic Blasting
GEC Belt (Rubber / Wire mesh) Conveyor Shot Blast refers to a type of shot blasting machine that utilizes a Belt (Rubber / Wire mesh) conveyor system for the transportation of workpieces through the blasting process.
Workpieces

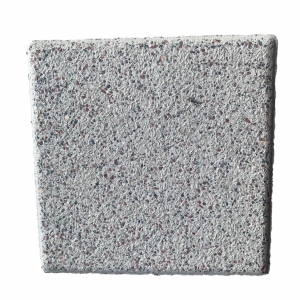

Shot Blasted Concrete Tile (Anti-Skid Finish)

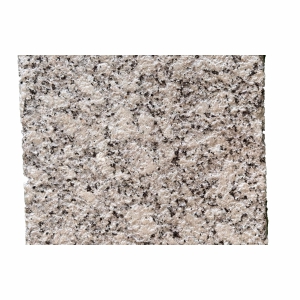

Shot Blasted Granite Surface (Anti-Slip Finish)
Natural Stone Blocks
Applications
- Anti-slip surface finishing
- Decorative and textured stone surfaces
- Uniform matte surface preparation
- Removal of saw marks and surface defects
- Surface preparation before sealing or coating
- Suitable for outdoor and architectural stone applications
About
GEC Belt (Rubber / Wire mesh) Conveyor Shot Blast refers to a type of shot blasting machine that utilizes a Belt (Rubber / Wire mesh) conveyor system for the transportation of workpieces through the blasting process. This system allows for continuous and automated operation, ensuring efficient and uniform cleaning or surface treatment.
In Belt (Rubber / Wire mesh) Conveyor Shot Blasting, the workpieces are placed on the conveyor Belt (Rubber / Wire mesh), which moves them through the blasting chamber. As the workpieces pass through, abrasive media is propelled at high velocity by blast wheels, impacting the surface to remove contaminants, scale, or rust.
This blasting method is commonly used in industries such as automotive, metal fabrication, foundries, and aerospace, alloy wheels, stone processing, where large volumes of workpieces need to be processed. It offers advantages like high productivity, consistent results, and the ability to handle various workpiece sizes and shapes. Belt (Rubber / Wire mesh) Conveyor Shot Blast machines are designed to improve efficiency and achieve quality surface finishes.
Technical Specification
|
S. No. |
Description |
Model: SB-2W | Model: SB-4W | Model: SB-6FT | Model: SB-3FT |
|---|---|---|---|---|---|
|
1. |
Opening Width | 900 – 1800 mm | 900 – 1800 mm | 1800 mm (6 ft) | 900 mm (3 ft) |
| 2. | Opening Height | 300 – 600 mm | 400 – 700 mm | 500 – 800 mm | 300 – 500 mm |
|
3. |
No. of Blast Wheels (Turbines) |
2 |
4 |
2 |
2 |
|
4. |
Blast Wheel Power (HP × Nos.) |
10 |
10 |
15 |
10 |
|
5. |
Blast Wheel Size | 12.5" | 12.5" | 19.5" | 19.5" |
|
6. |
Belt Conveyor Speed (Rubber Belt) | 0.5 – 3.0 m/min | 0.5 – 3.0 m/min | 0.5 – 3.0 m/min | 0.5 – 3.0 m/min |
|
7. |
Effective Blasting Length | 3 – 6 m | 4 – 7 m | 5 – 7 m | 3 – 5 m |
| 8. | Dust Collector | Reverse Pulse Jet |
Reverse Pulse Jet |
Reverse Pulse Jet |
Reverse Pulse Jet |
| 9. | Approx. Production Capacity (m²/hr) | 40 – 100 | 70 – 160 | 120 – 160 | 40 – 90 |
|
10 |
Pit Requirement | No | No | No | No |
Note: We also customize the design & manufacture the machine as per customer requirements

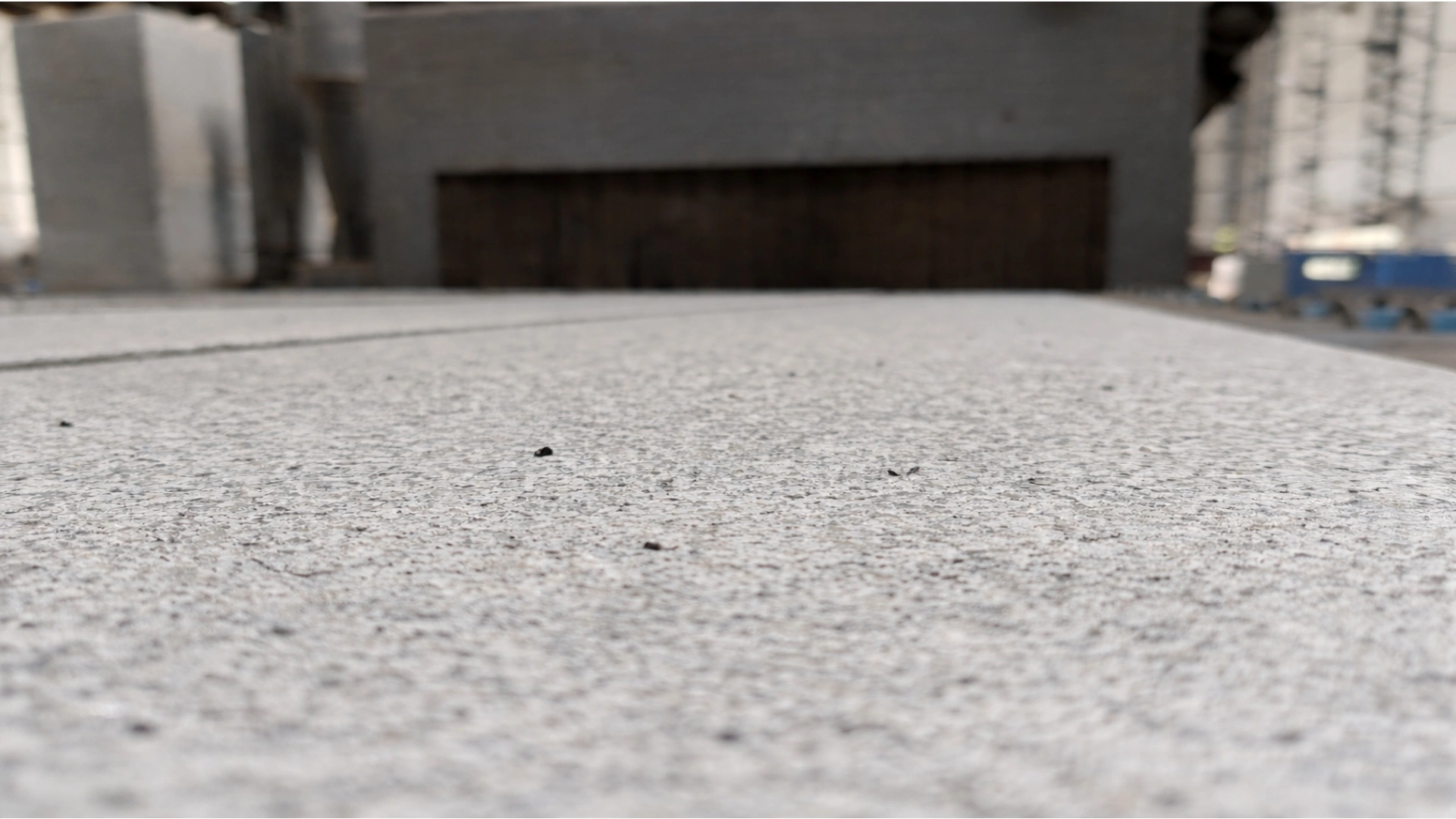

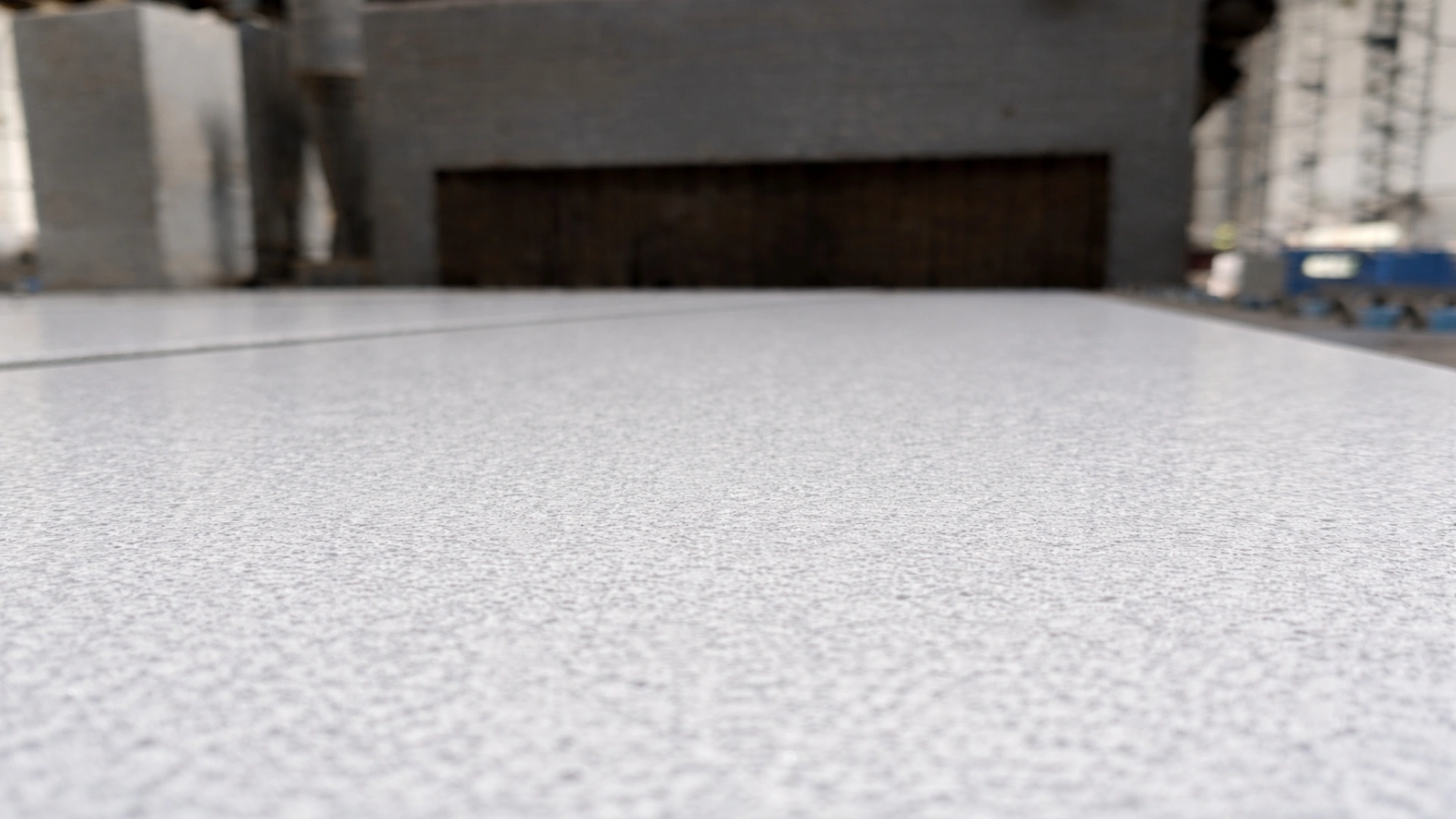

Product Before After
Before
