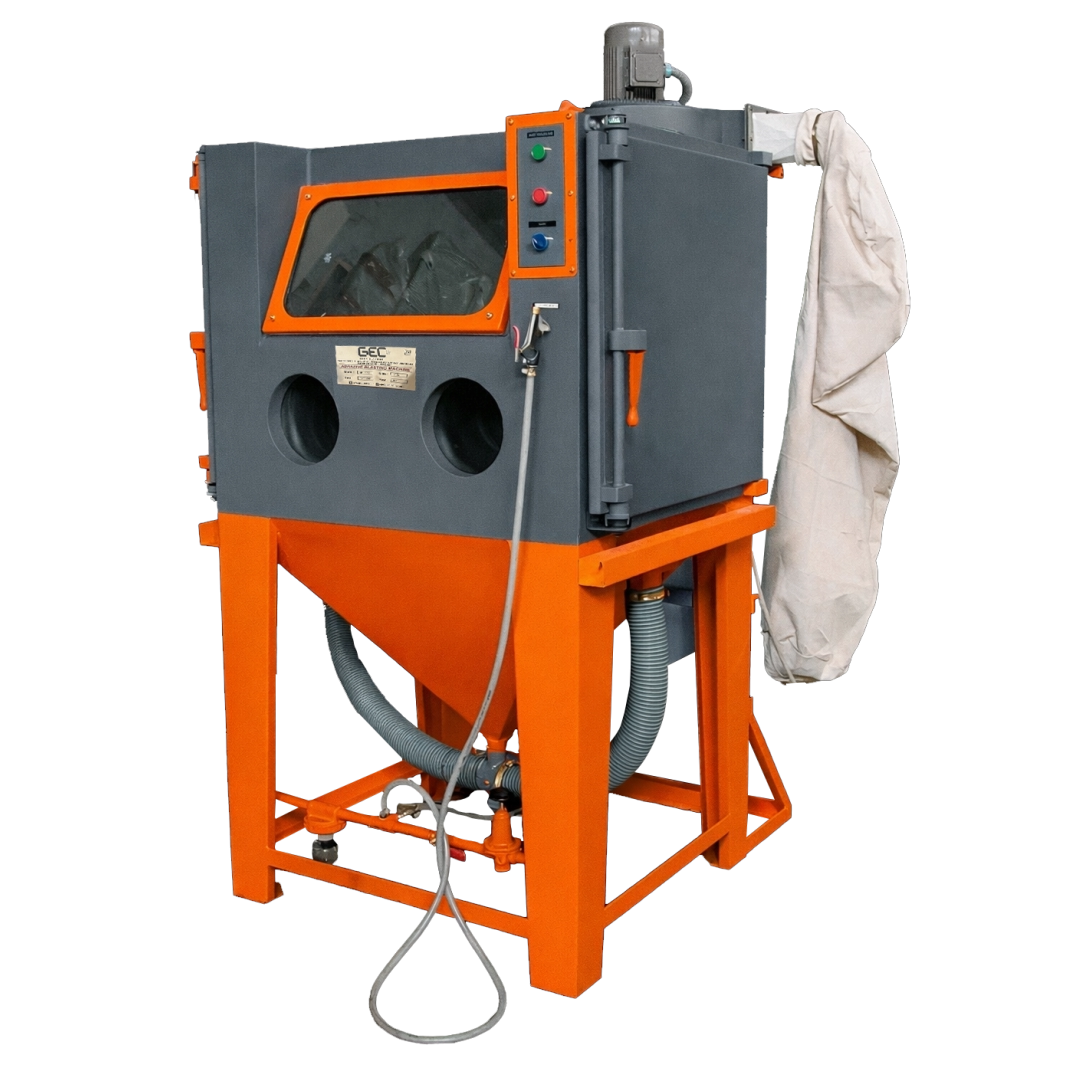

Suction Blasting Cabinet

A Suction Blasting Cabinet is a fully enclosed system designed for safe and controlled surface treatment.

Workpieces

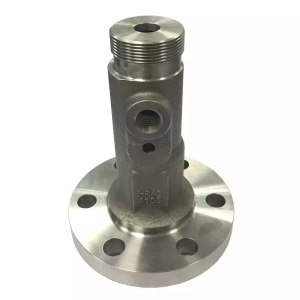

Small to medium metal components

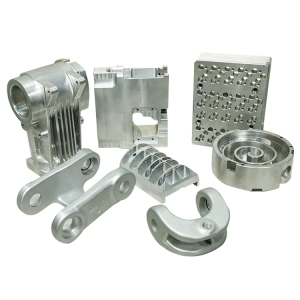

Cast iron & cast aluminum parts

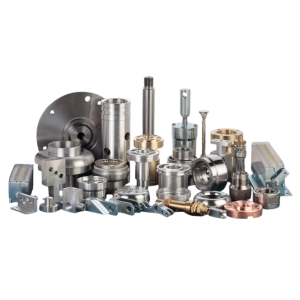

Machined Components

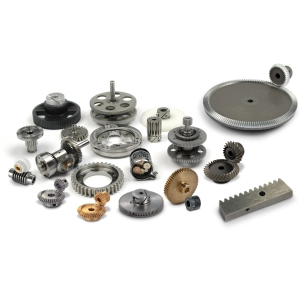

Automotive parts (brackets, housings, gears – small size)

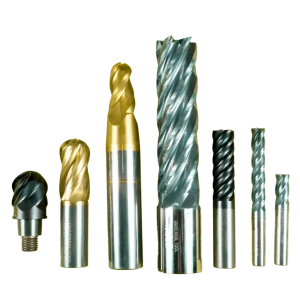

Moulds, dies, and tools

Applications

  • Removal of rust, scale, paint & corrosion
  • Surface cleaning before painting / powder coating
  • Deburring of machined components
  • Surface roughening for better coating adhesion
  • Matte / satin finish & refurbishment of parts

About

A Suction Blasting Cabinet is a fully enclosed system designed for safe and controlled surface treatment. It uses abrasive media directed at high speed to clean, deburr, finish, or prepare surfaces with precision. By containing the blasting process inside a sealed chamber, it prevents dust and media from escaping, ensuring a clean and safe work environment. Commonly used in automotive, aerospace, and manufacturing industries, blast cabinets are ideal for treating metal, glass, plastic, and other materials. With user-friendly controls and durable construction, they provide efficiency, consistency, and superior results for a wide range of surface preparation tasks.

Technical Specification

Model                                                                                                                                                                                                                Suction blaster (SB)

Specification

SB - 6060

SB - 9182

SB - 12090

Working Chamber (mm)
Height (A)
Width (B)
Depth (C)


600
600
600


775
910
820


900
1200
900

Door Opening (mm)
Width (G)
Height (H)


500
500


730
675


800
800

Overall Dimension (mm)
Height (D)
Width
Depth (P)


1660
800
1500


2120
1070
1400


2570
1365
1700

Dust /Mist Collector / Reclaimer Fan Motor (HP)
Fan Capacity (M³/min)
Fan Capacity (CFM)
Filter Cloth Area (M²)
Slurry Pump Motor (HP)
Air Jet Orifice (mm)
Blast Nozzle (mm)

0.5
5.66
200
1.0
-
*2,3
*6,8

1.0
11.32
400
2.0
-
*3,4,5.5
*8,10,12

1.5
16.98
600
4.0
-
3,*4,5.5
*8,*10,12

Abrasive Storage Capacity Litres (CFT)
Pit Size (mm)
Width
Length
Depth

28 (1.0)
-
-
-
-

28 (1.0)
-
-
-
-

42 (1.5)
-
-
-
-

Weight in Kg (approx.)

250

380

490

Abrasive Feed

Induction Suction

Induction Suction

Induction Suction

Note: We also customize the design & manufacture the machine as per customer requirements

Product Before After

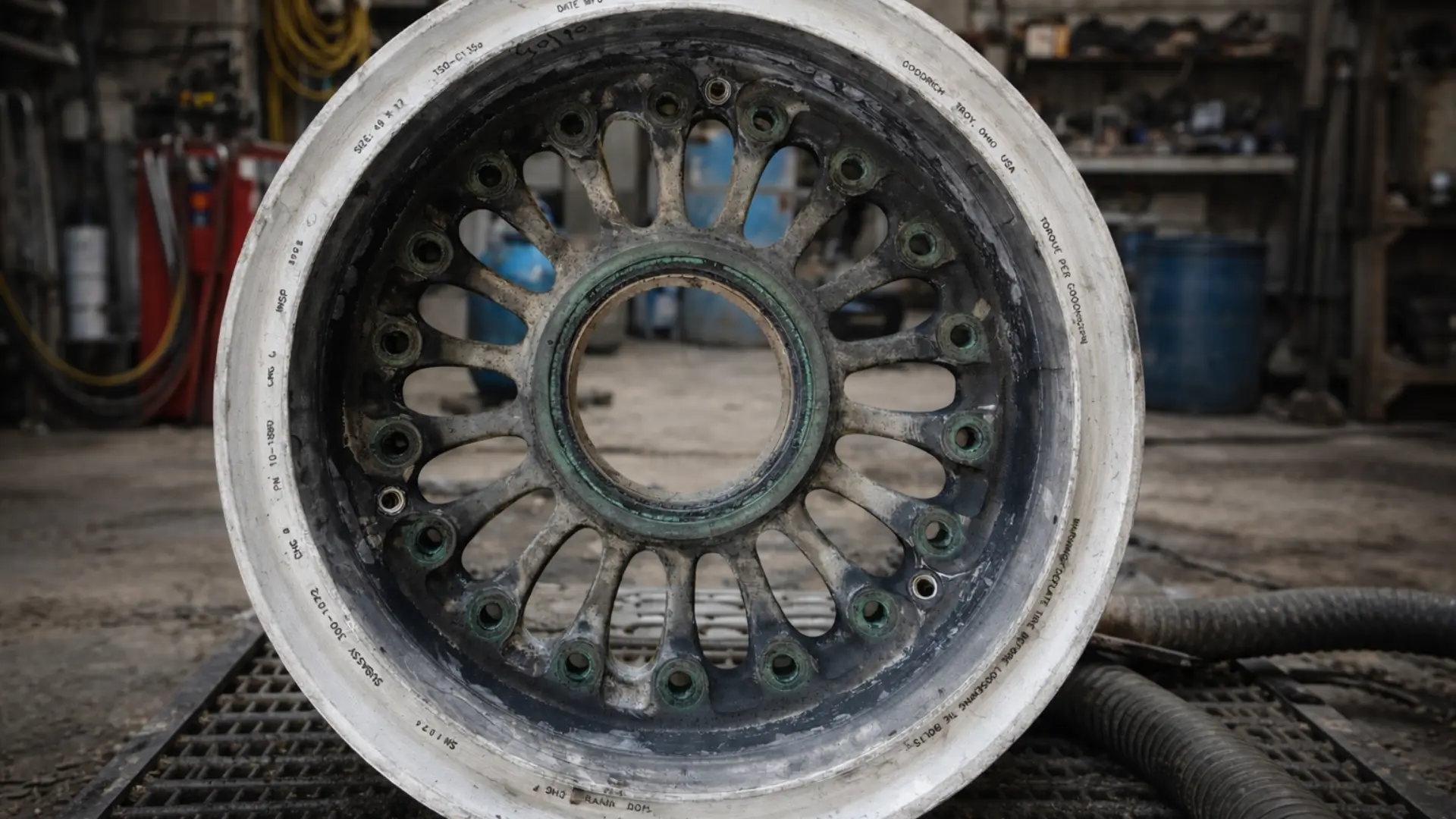

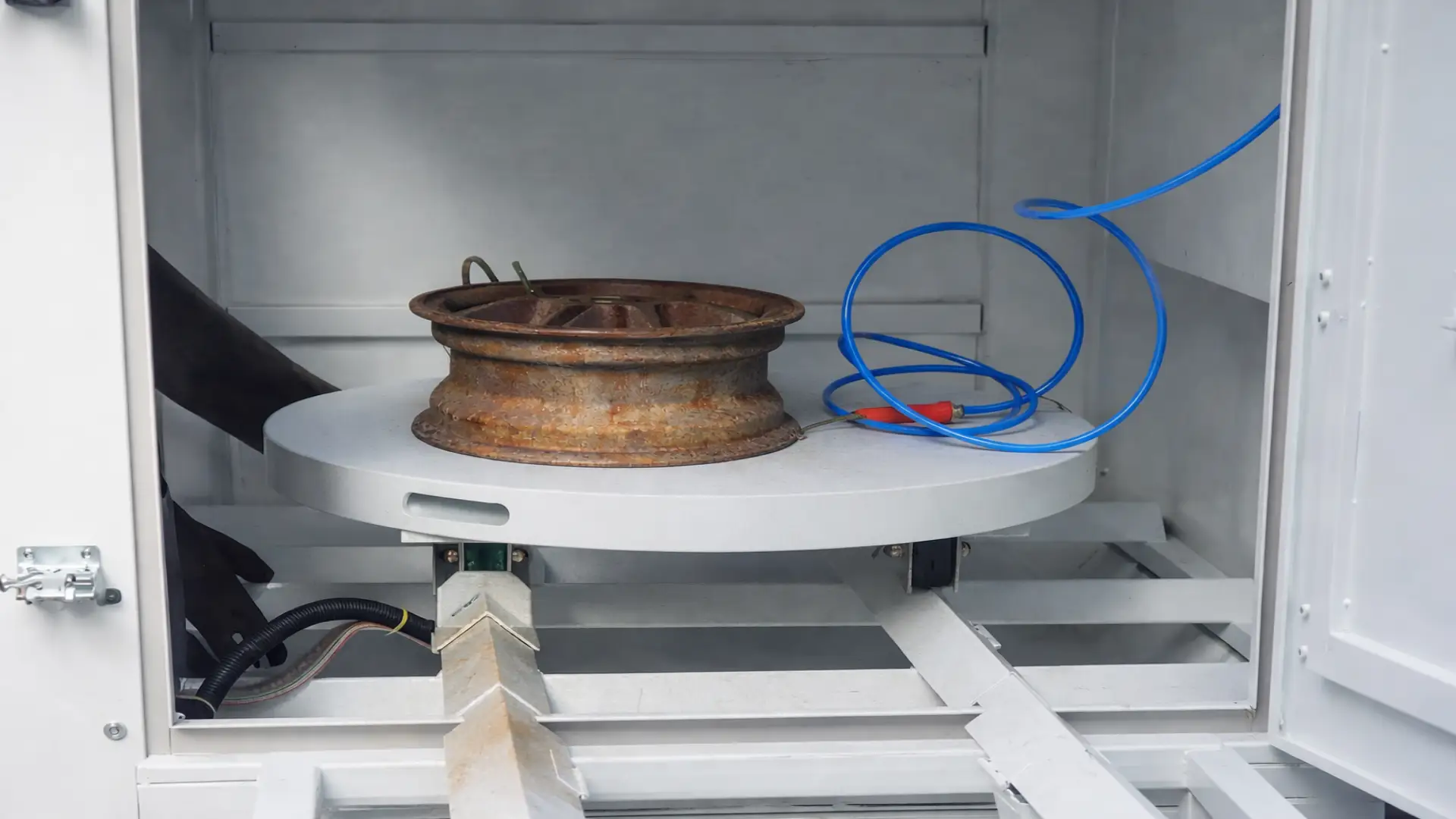

Before

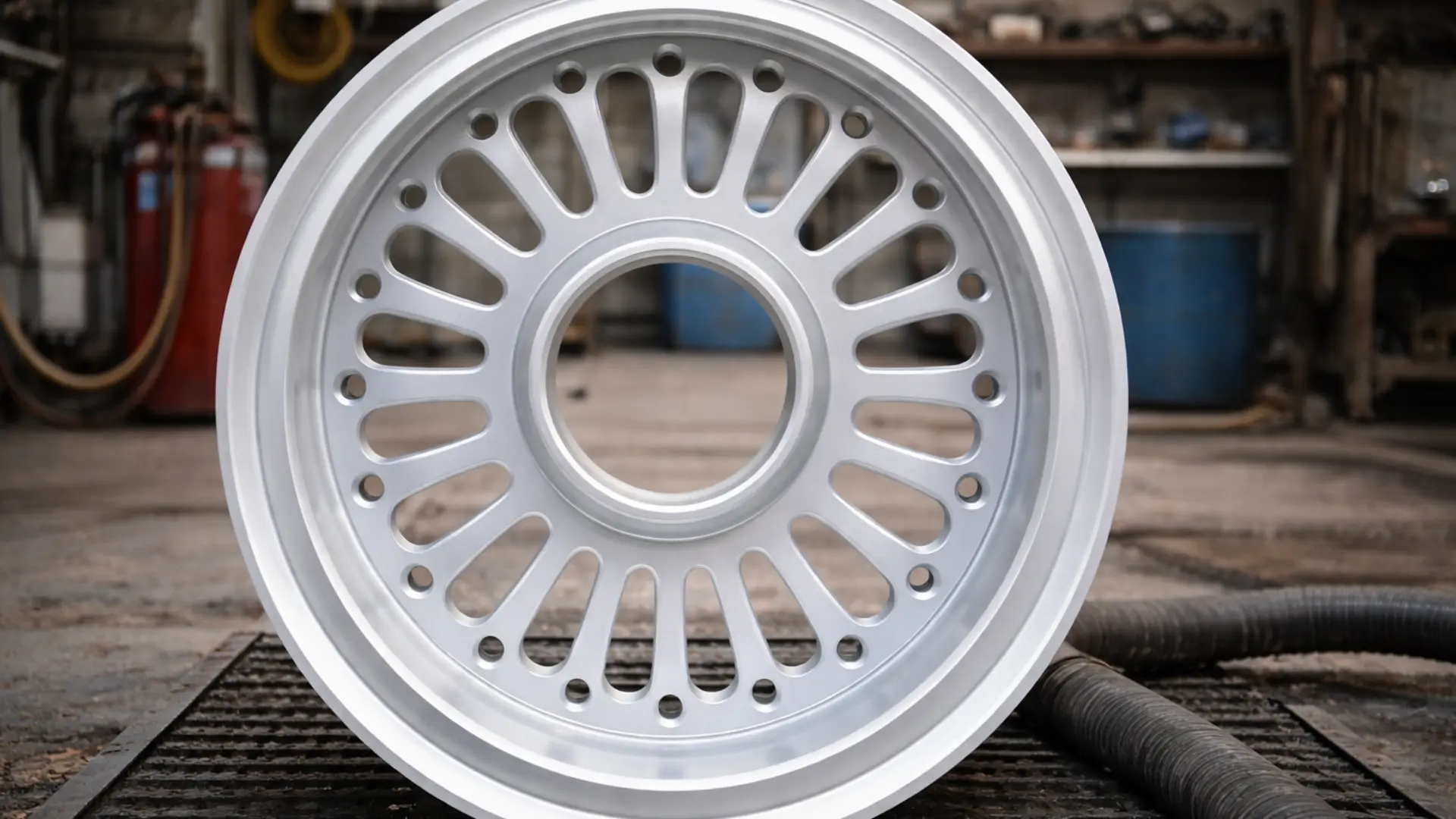

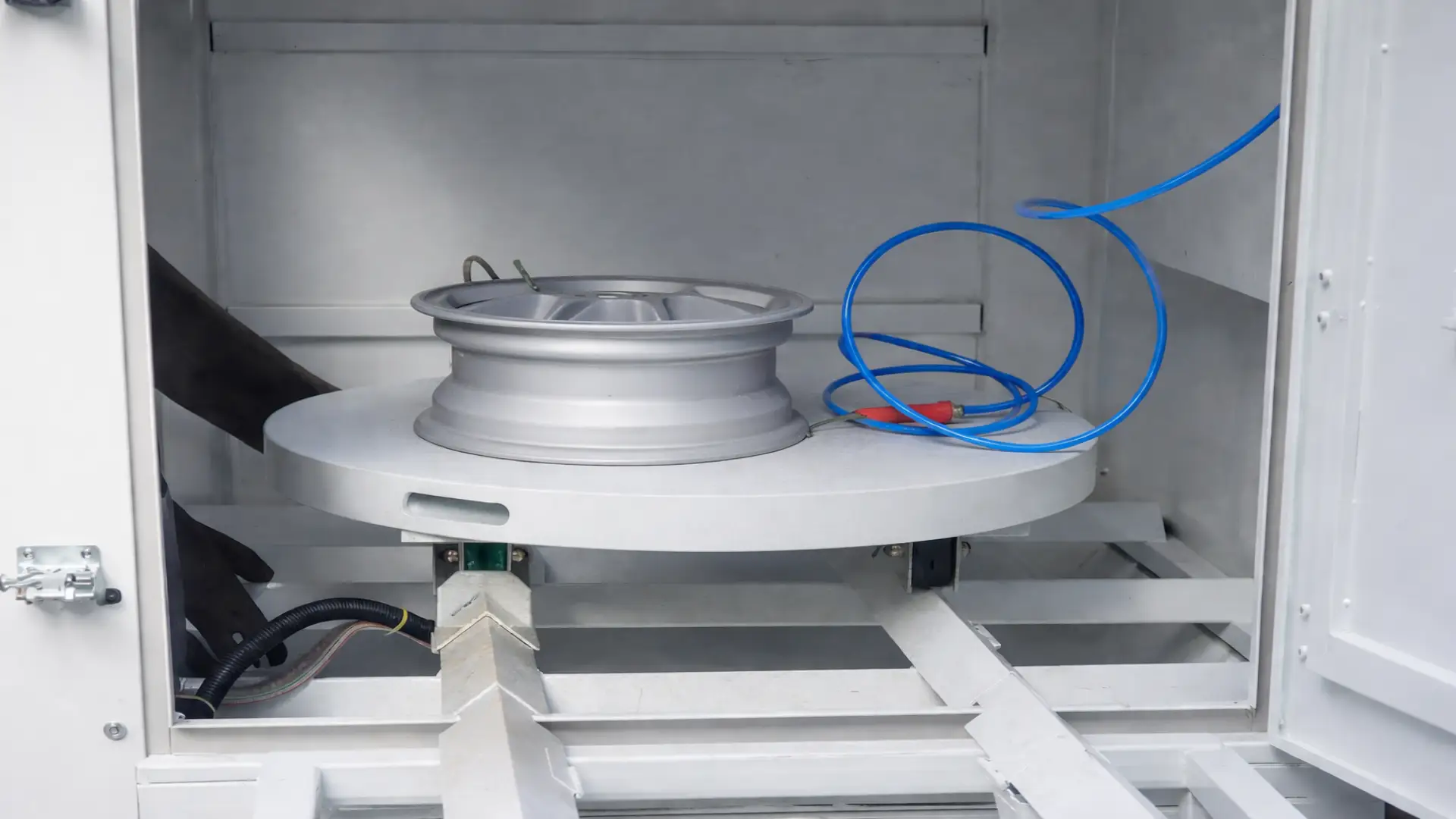

After

Discover our Suction Blasting Cabinet in 360°

Suction Blasting Cabinet Models

SB-12090

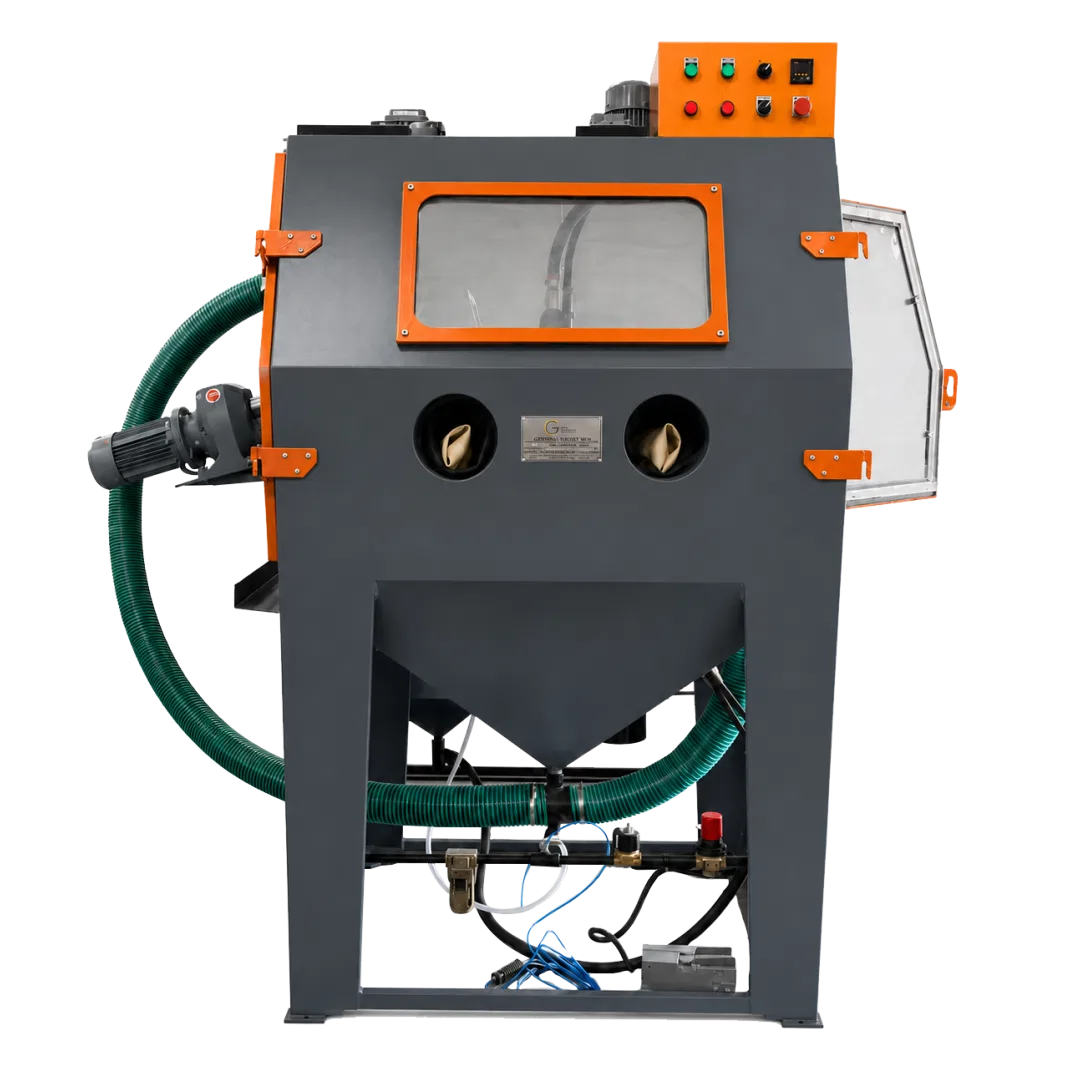

SB-9182

SB-6060
