Tyre Mould Cleaning Machine
The Servo Controlled Automatic Blasting Machine is an advanced solution for precise and efficient surface treatment of various metal components.
Workpieces

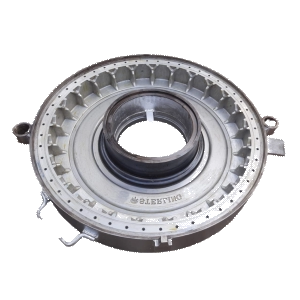

Complete tyre moulds (top & bottom plates)

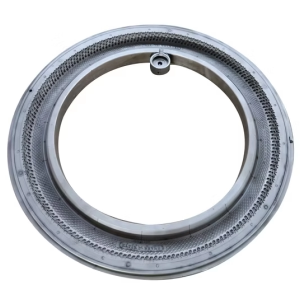

Bead ring moulds

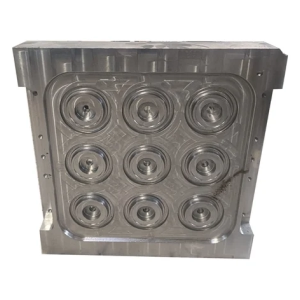

Rubber-contaminated steel mould parts
Applications
- Removal of rubber deposits & carbon build-up
- Cleaning of sulphur, release agent & tyre residue
- Restoring vent holes & fine engravings
- Improving tyre surface finish & pattern accuracy
- Preventive maintenance of tyre moulds
- Extending mould life & reducing rejection rate
Product Description
The Servo Controlled Automatic Blasting Machine is an advanced solution for precise and efficient surface treatment of various metal components. Equipped with servo-controlled technology, it allows accurate control over blasting parameters, ensuring uniform and high-quality results. This machine is ideal for removing rust, scale, paint, and other surface contaminants, preparing components for coating, finishing, or further processing.
Designed for automation and high productivity, the machine minimizes manual handling while delivering consistent performance across large production batches. Its robust construction, user-friendly interface, and precise control make it suitable for automotive, aerospace, manufacturing, and metal processing industries, offering reliability, efficiency, and superior surface quality.
Technical Specification
|
S. No. |
Model Name |
MGM-2000 | AIB-600 | MBH-400 | TMC-2500 | GFM-2x2.5 |
|---|---|---|---|---|---|---|
|
1. |
Machine | Multiple Glass Mould Cleaning Machine | Axle Internal Bore Blasting Machine | Micro Blasting Machine for Hobbs & Gears | Tyre Mould Cleaning Machine | Glass Frosting Machine – 2x2.5 mtr |
|
2. |
Working Chamber / Size (mm) | 2000 × 1500 × 1200 | Bore Dia. 20–120 mm, Length 600 mm | 600 × 400 × 400 | 2500 × 2000 × 1500 | 2000 × 2500 × 1800 |
|
3. |
No. of Blast Guns / Wheels |
2 |
1 |
1 |
2 |
3 |
|
4. |
Motor Power (HP) | 7.5 | 5 | 1.5 | 10 | 15 |
| 5. | Abrasive Type | Steel Grit / Shot | Steel Shot / Grit | Aluminium Oxide / Glass Beads | Steel Shot / Grit | Aluminum Oxide |
| 6. | Approx. Weight (Kg) | 1200 | 400 | 150 | 1500 | 1800 |
|
7. |
Remarks / Notes | For multiple glass Moulds, high productivity | Precision internal surface cleaning | High-precision micro blasting for gears & hobbs | Automatic mould cleaning, suitable for tyres | Decorative glass frosting, uniform surface finish |

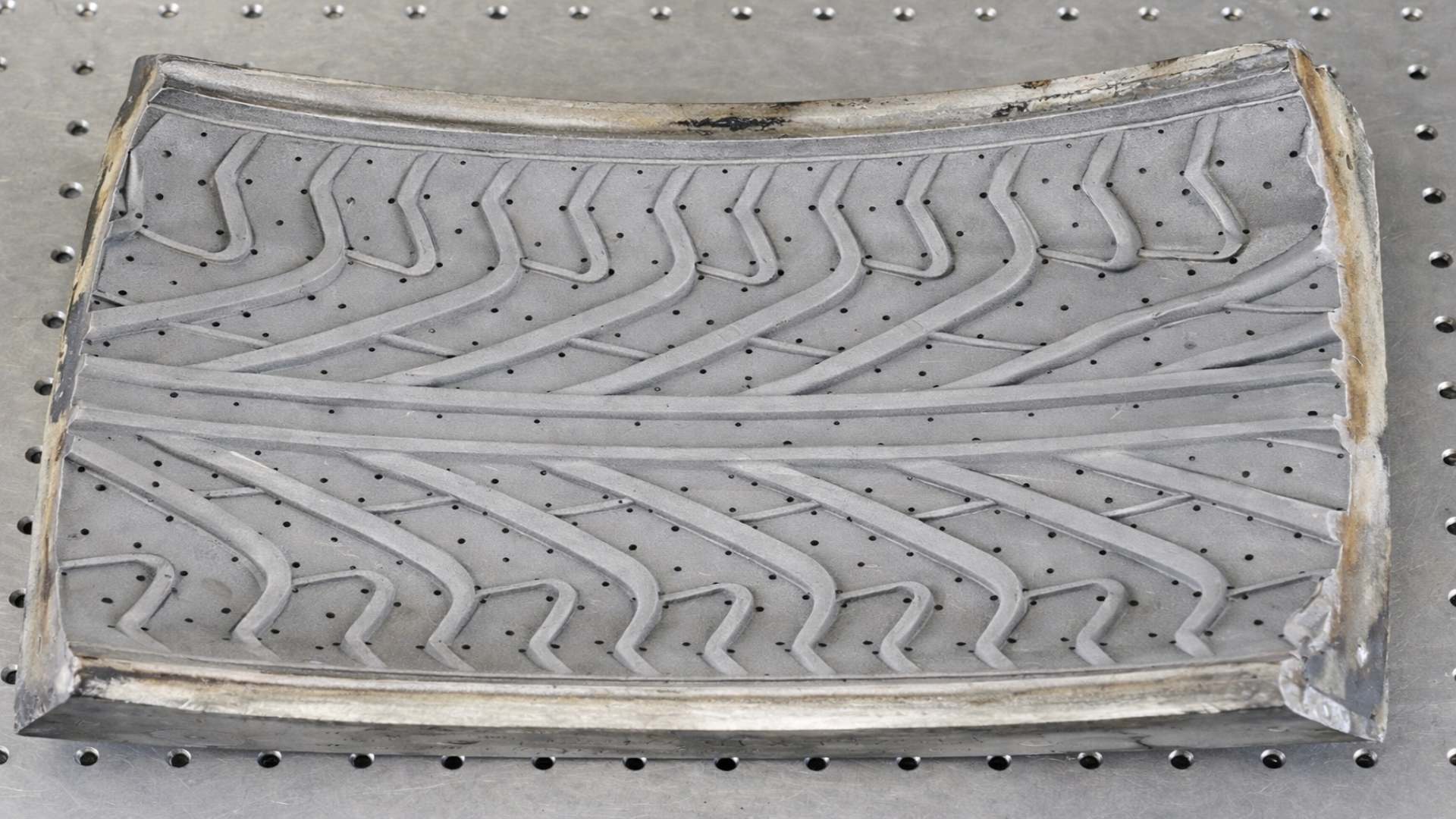

Product Before After

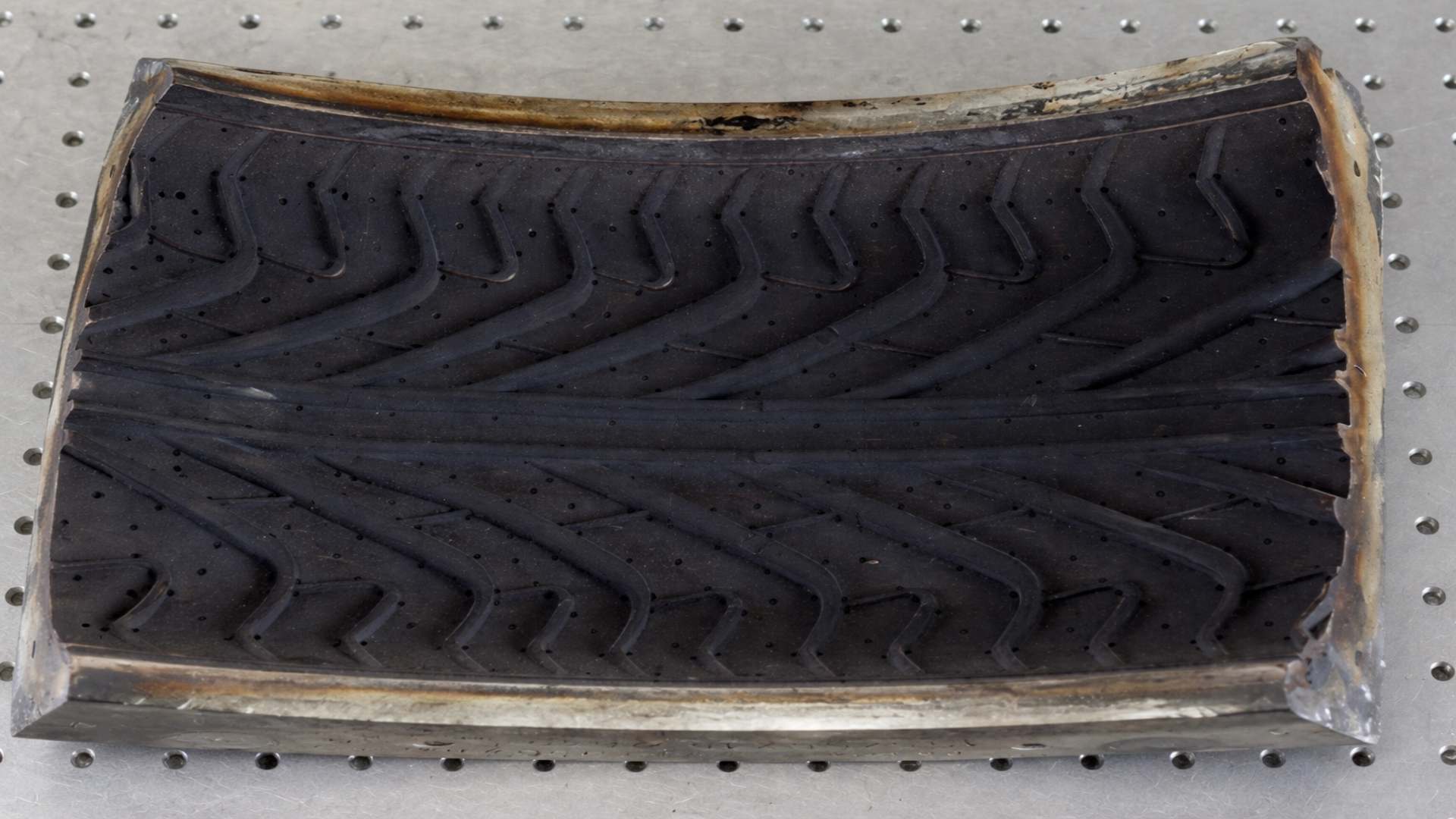

Before
