Servo Controlled Automatic Blasting Machine
The Servo Controlled Automatic Blasting Machine is an advanced solution for precise and efficient surface treatment of various metal components.
Workpieces

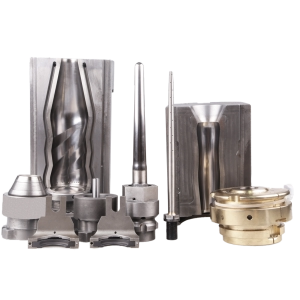

Glass bottle moulds

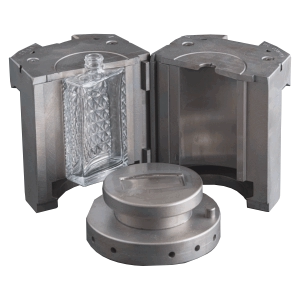

Cosmetic & perfume bottle moulds
Applications
- Removal of carbon, soot & glass residue
- Cleaning of oil, grease & release agents
- Restoration of mould surface finish
- Precision cleaning without dimensional damage
- Maintenance cleaning for consistent glass quality
- Preparation of moulds before reuse or inspection
About
The Servo Controlled Automatic Blasting Machine is an advanced solution for precise and efficient surface treatment of various metal components. Equipped with servo-controlled technology, it allows accurate control over blasting parameters, ensuring uniform and high-quality results. This machine is ideal for removing rust, scale, paint, and other surface contaminants, preparing components for coating, finishing, or further processing.
Designed for automation and high productivity, the machine minimizes manual handling while delivering consistent performance across large production batches. Its robust construction, user-friendly interface, and precise control make it suitable for automotive, aerospace, manufacturing, and metal processing industries, offering reliability, efficiency, and superior surface quality.
Technical Specification
|
S. No. |
Model |
Multiple Glass Mould Cleaning |

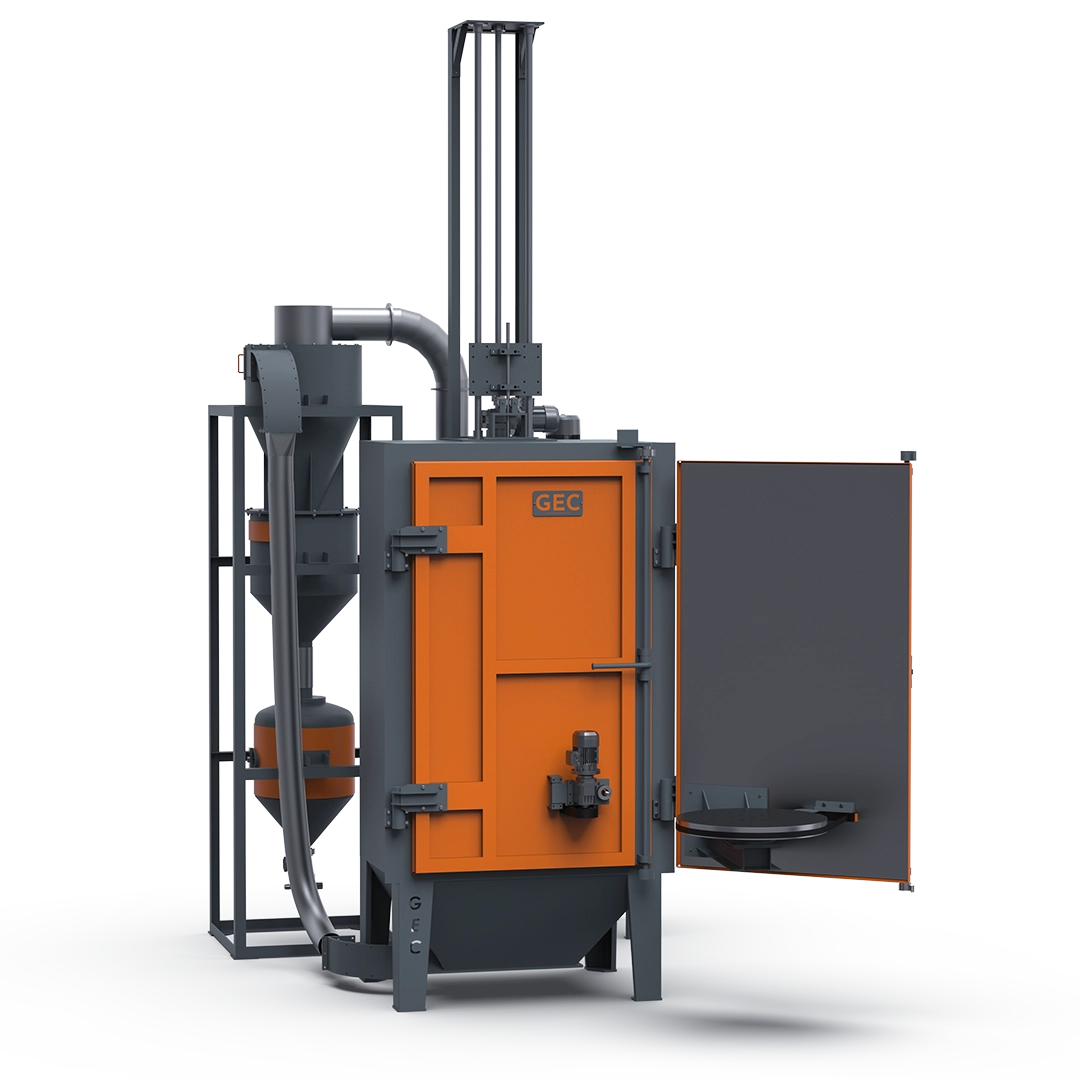

Axle Internal Bore Blasting |
Micro Blasting for Hobs & Gears |

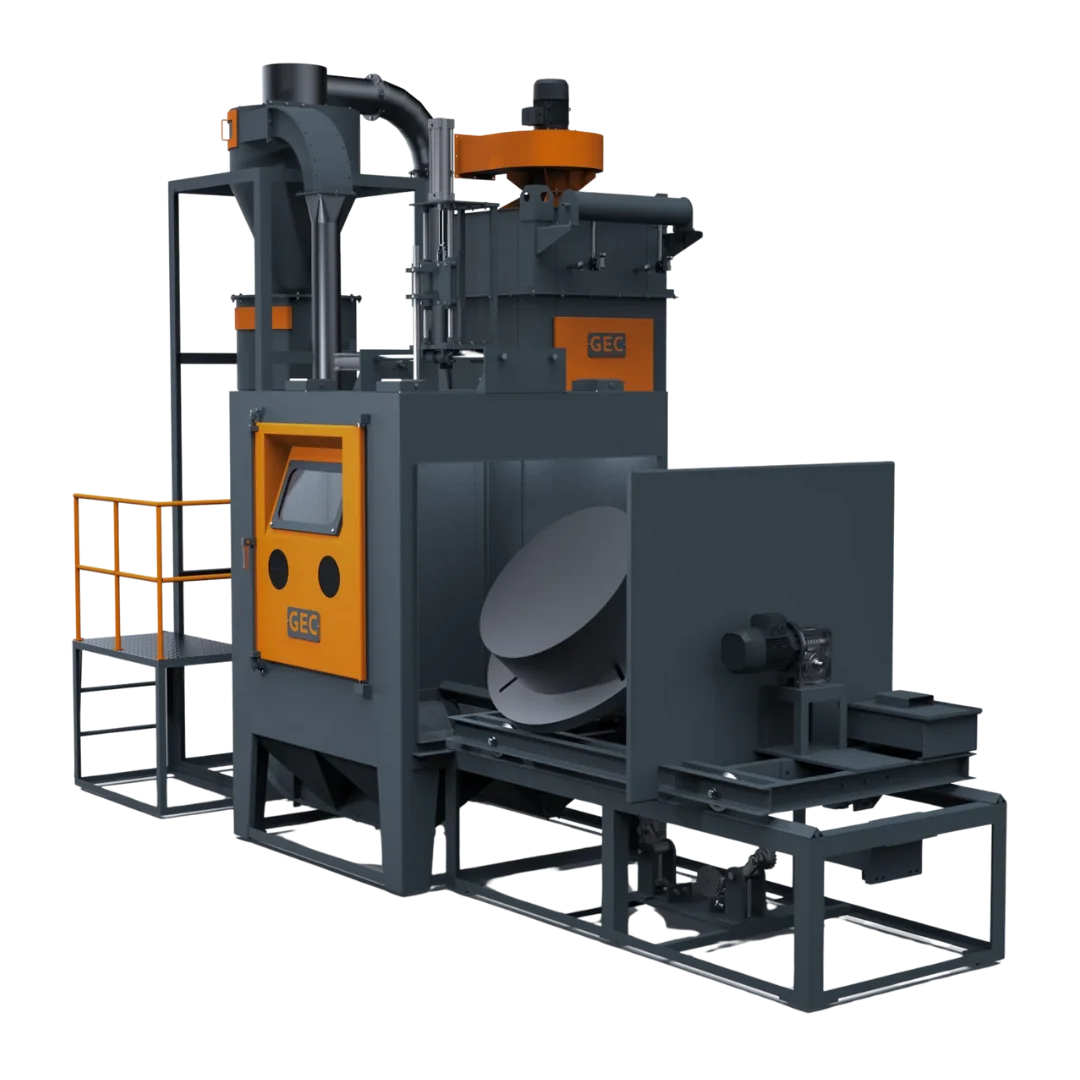

Tyre Mould Cleaning |

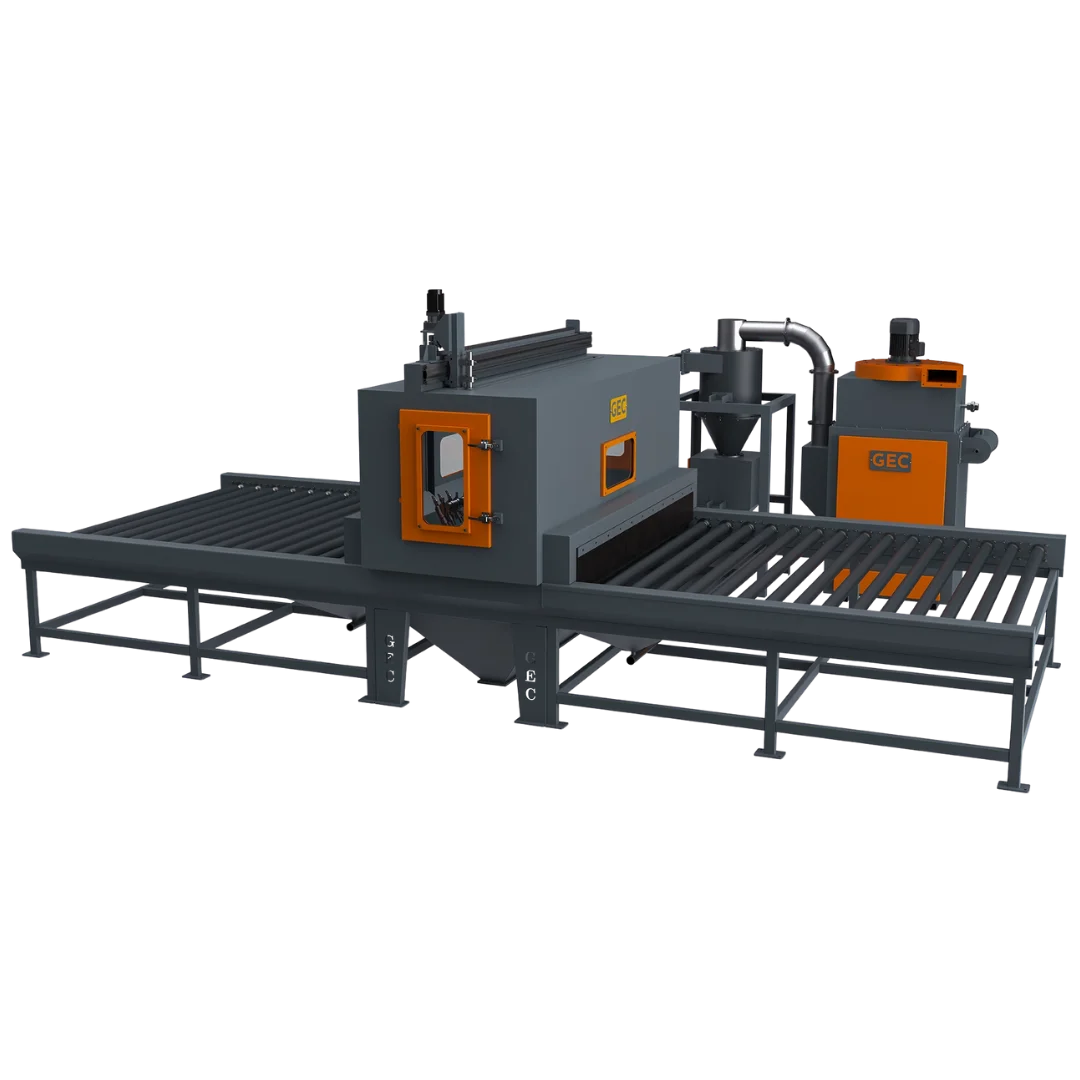

Glass Frosting Machine |
|---|---|---|---|---|---|---|
|
1. |
Working Chamber / Size |
2000 × 1500 × 1200 mm |
Bore Ø 20–120 mm, Length 600 mm |
600 × 400 × 400 mm |
Customized Table |
2000 × 2500 × 1800 mm |
|
2. |
Blasting Guns / Wheels |
2 |
1 |
1 |
2-6 |
3 |
|
3. |
Installed Power |
7.5 HP |
5 HP |
1.5 HP |
10 HP |
15 HP |
|
4. |
Abrasive Media |
Steel Grit / Shot |
Steel Shot / Grit |
Aluminium Oxide / Glass Beads |
Steel Shot / Grit |
Aluminium Oxide |
|
5. |
Table / Component Size |
Ø 600 – 2000 mm |
Ø 600 – 1000 mm |
Ø 400 – 900 mm |
Ø 1000 – 4000 mm |
- |
|
6. |
Job Weight Capacity |
Up to 2000 kg |
Up to 1000 kg |
Up to 200 kg |
Up to 10,000 kg |
Up to 200 kg |
|
7. |
Gun Movement System |
Servo Controlled X–Y |
Servo Controlled X–Y |
Servo Controlled X–Y–Z (Table) |
Motorized Y-Axis + Manual Control |
Servo Controlled X–Y |
|
8. |
Key Applications |
High-productivity cleaning of multiple glass moulds |
Precision internal surface cleaning |
High-accuracy micro blasting for gears & hobs |
Automatic tyre mould cleaning |
Decorative & uniform glass frosting |

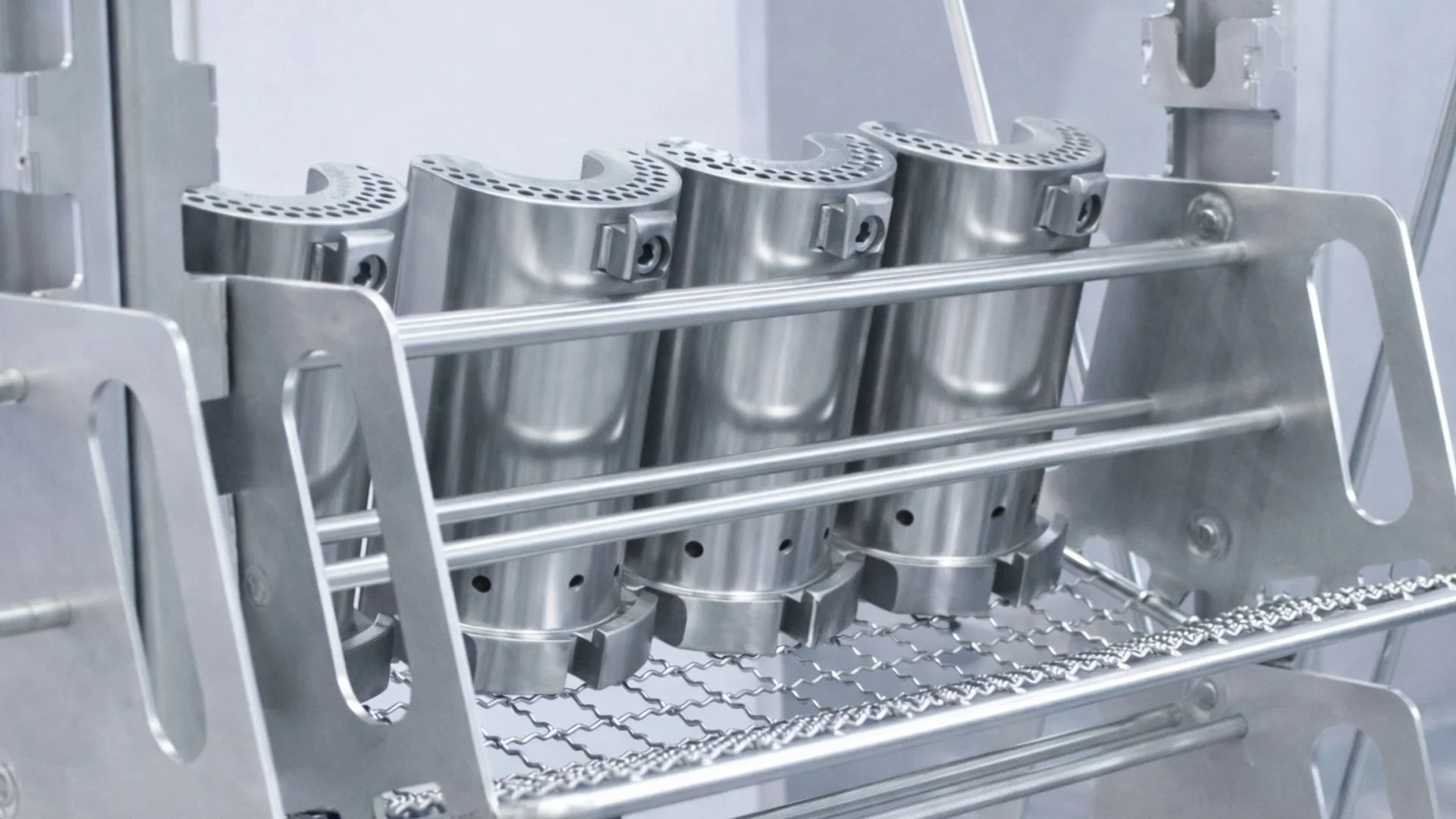

Product Before After

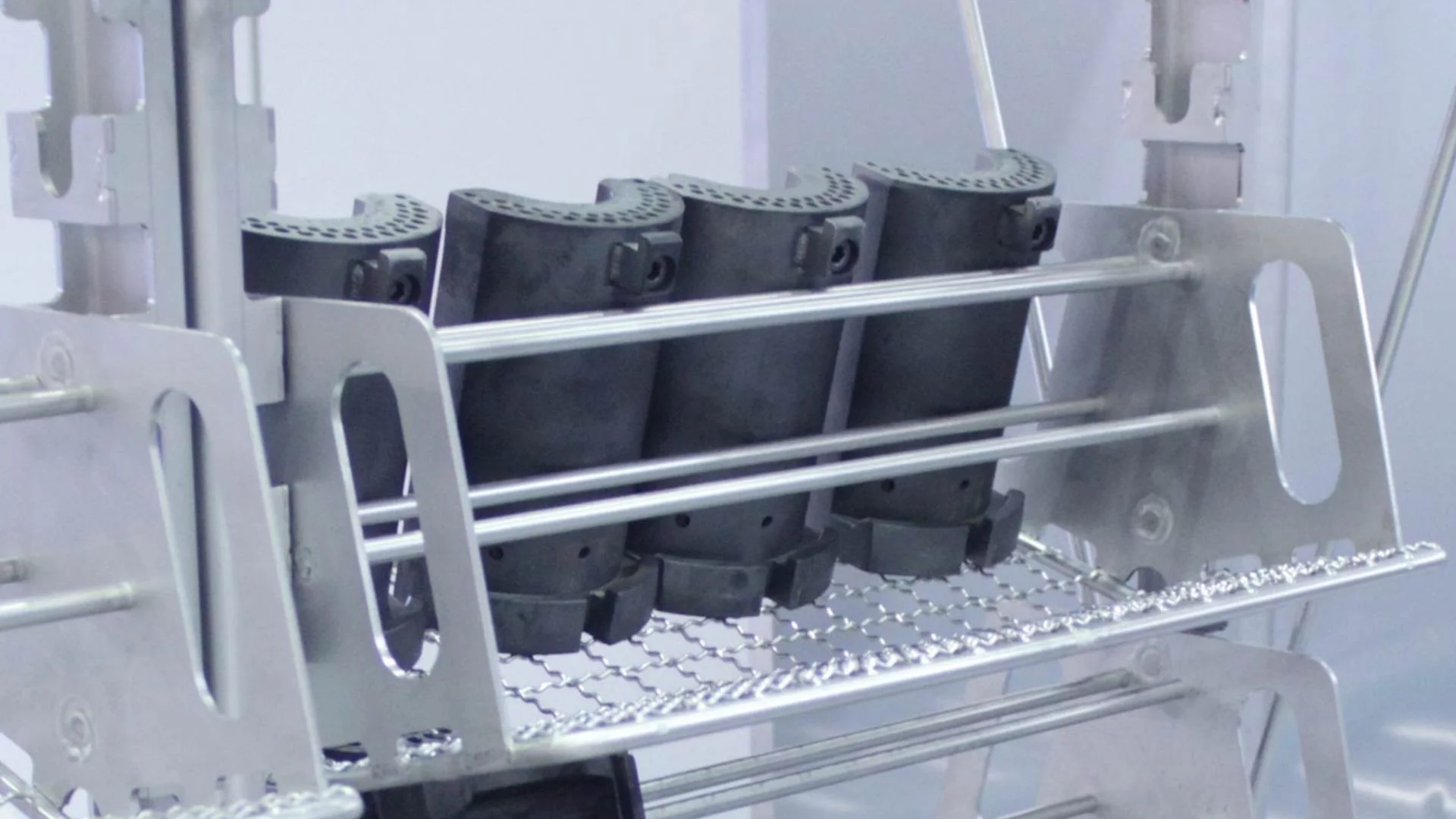

Before
