Pressure Blasting Cabinet

A Pressure Blasting Cabinet is a fully enclosed system designed for safe and controlled surface treatment.

Workpieces

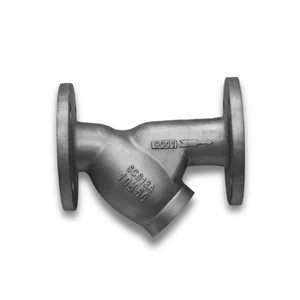

Small - Medium Castings

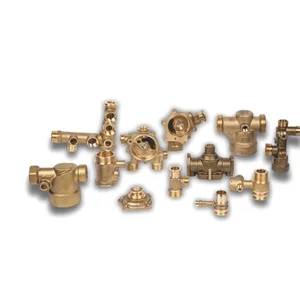

Forged Components

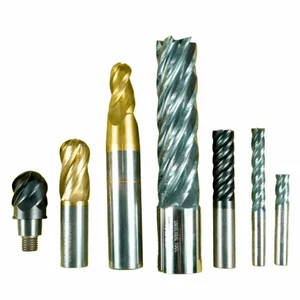

Machined Components

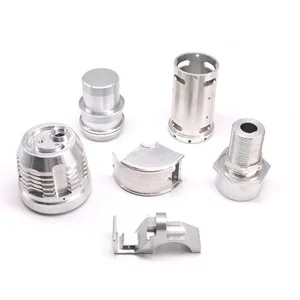

Aluminum & non-ferrous parts

Applications

About

A Pressure Blasting Cabinet is a fully enclosed system designed for safe and controlled surface treatment. It uses abrasive media directed at high speed to clean, deburr, finish, or prepare surfaces with precision. By containing the blasting process inside a sealed chamber, it prevents dust and media from escaping, ensuring a clean and safe work environment. Commonly used in automotive, aerospace, and manufacturing industries, blast cabinets are ideal for treating metal, glass, plastic, and other materials. With user-friendly controls and durable construction, they provide efficiency, consistency, and superior results for a wide range of surface preparation tasks.

Technical Specification

Model                                                                                                                                                                                                                Pressure Blaster (PB)

Specification

PB - 9182

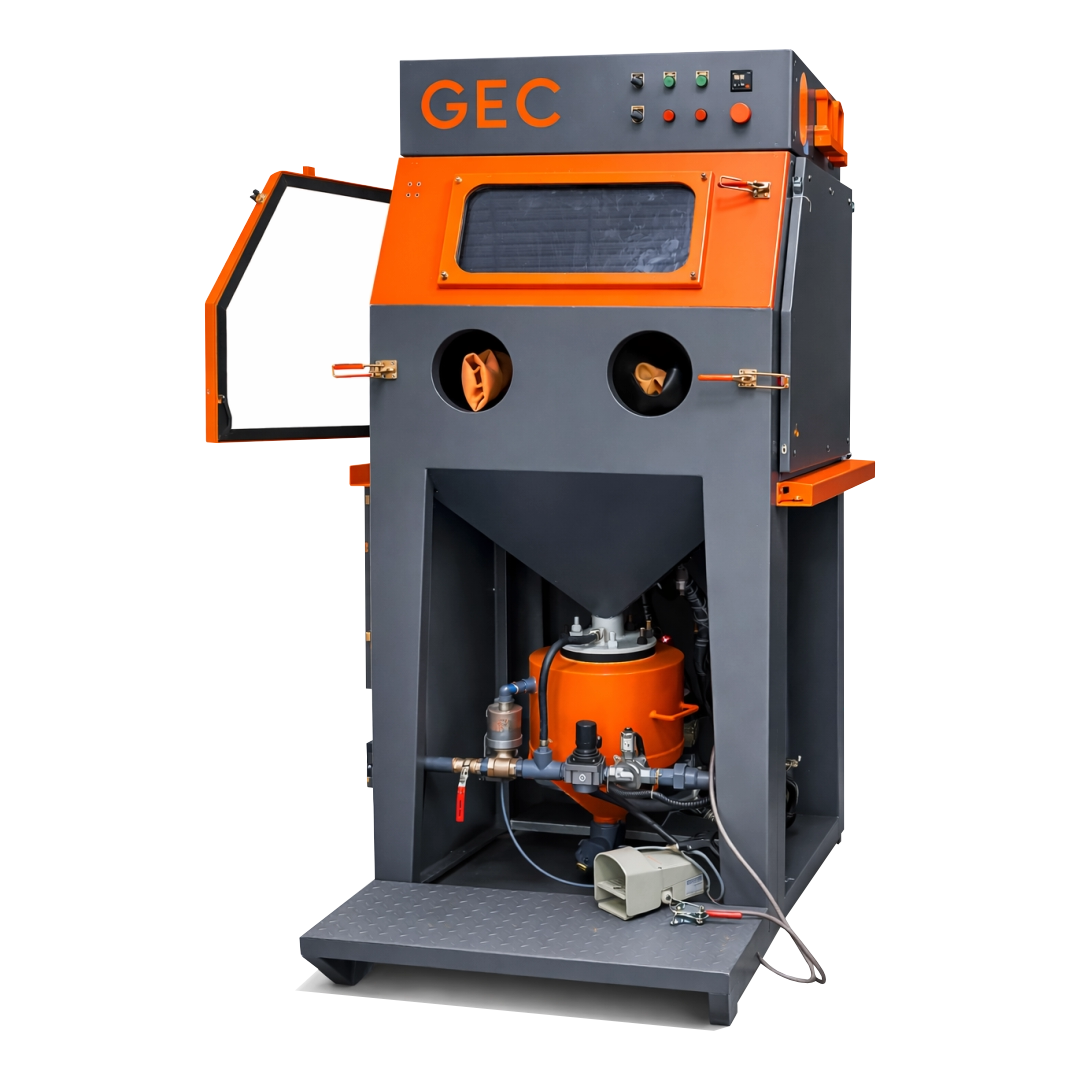

PB - 12090

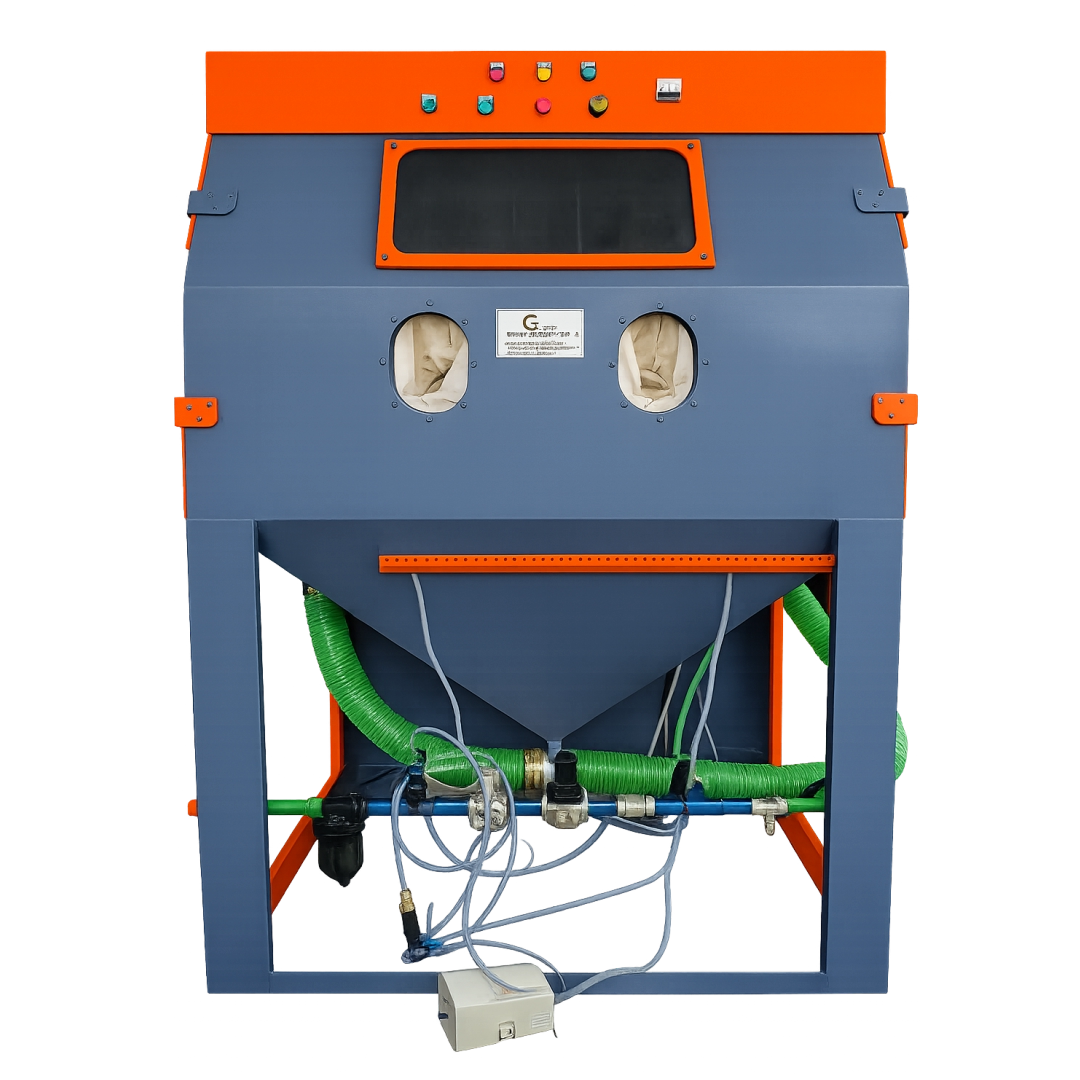

PB - 150120

Working Chamber (mm)
Height (A)
Width (B)
Depth (C)


775
910
820


900
1200
900


900
1500
1200

Door Opening (mm)
Width (G)
Height (H)


730
675


800
800


1100
800

Overall Dimension (mm)
Height (D)
Width
Depth (P)

 2130
1100
2500

 2030
1365
2430

2080
1665
2730

Dust /Mist Collector / Reclaimer Fan Motor (HP)
Fan Capacity (M³/min)
Fan Capacity (CFM)
Filter Cloth Area (M²)
Slurry Pump Motor (HP)
Air Jet Orifice (mm)
Blast Nozzle (mm)

1.0
14.16
500
7.5
-
-
*5,6

1.0
14.16
500
7.5
-
-
*5,6

1.5
22.66
800
10.0
-
-
*5,6

Abrasive Storage Capacity Litres (CFT)
Pit Size (mm)
Width
Length
Depth

28 (1.0)
-
-
-
-

42 (1.5)
-
600
2180
510

42 (1.5)
-
900
2530
600

Weight in Kg (approx.)

580

650

760

Abrasive Feed

Direct Pressure

Direct Pressure

Direct Pressure

Note: We also customize the design & manufacture the machine as per customer requirements

Product Before After

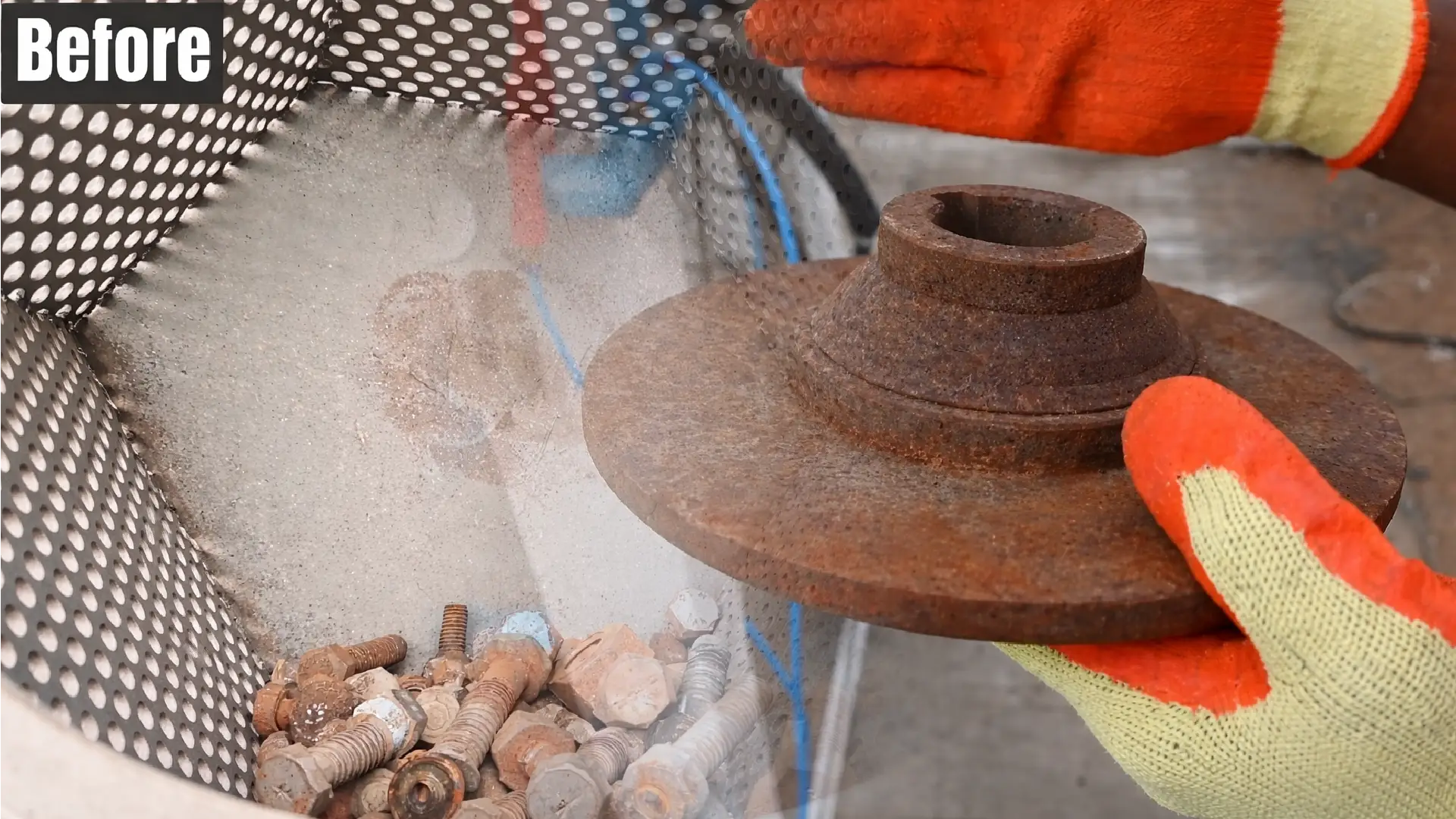

Before

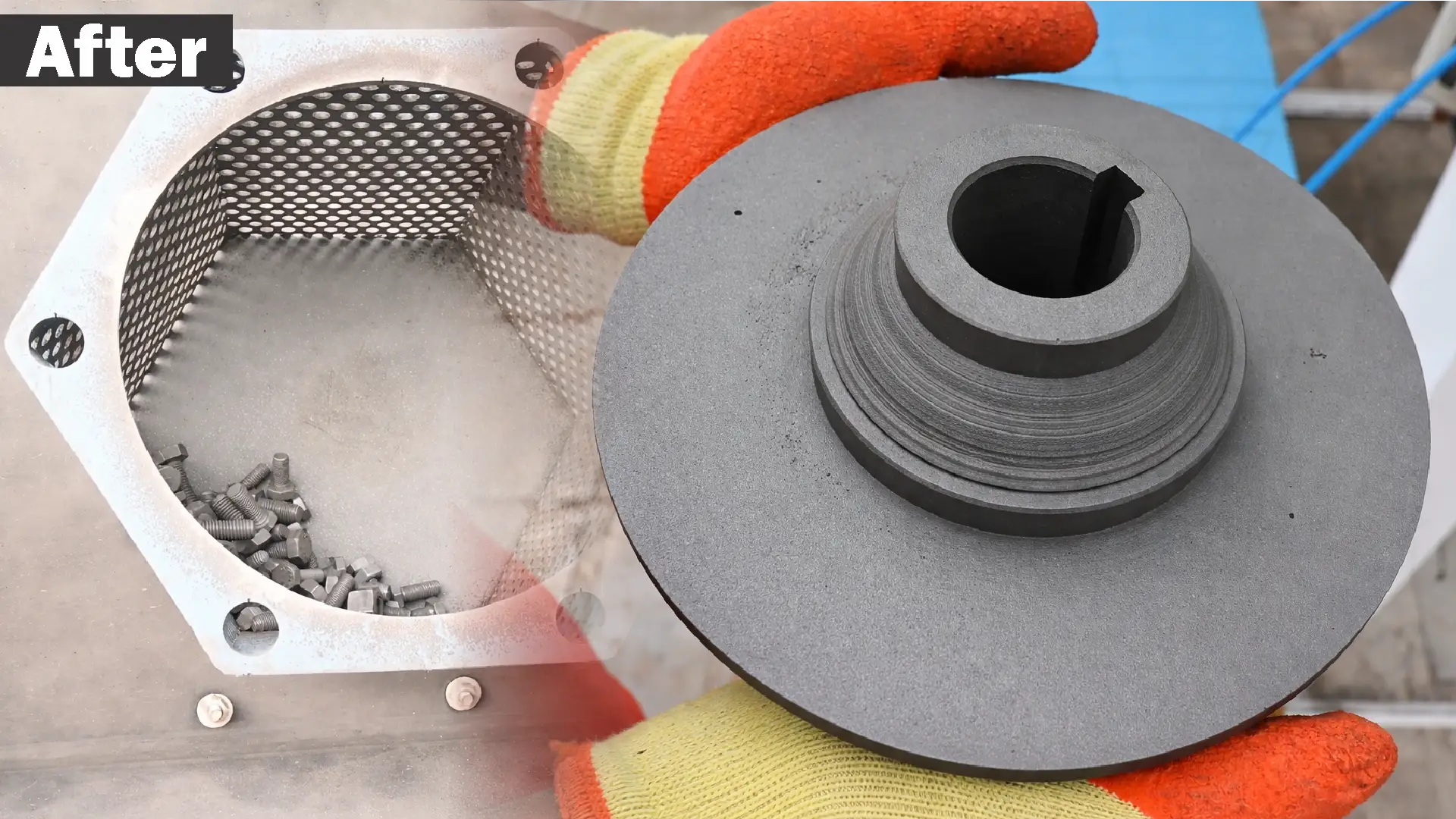

After

Discover our Pressure Blasting Cabinet in 360°

Pressure Blasting Cabinet Models
